Technical Reference

By Eliot

This page acts as a quick reference to the most important technical details of the main products in each category. It is primarily intended for quickly accessing several technical documents or comparing similar products by their main properties.

Additional details can be found in the linked product pages, and not all products are covered from each linked category.
“End of Life”/”Discontinued” and “Retired” tags indicate Blue Robotics is no longer sourcing more of a product, or no longer selling it.
Feedback and suggestions are welcome in the Technical Reference forum thread.

Vehicles and Accessories

Vehicles

These vehicles offer high-performance at affordable prices. They use open-source electronics and software and offer plenty of expandability, making them perfect for inspections, research, and adventuring.
VehicleThrustersControl AxesDimensions        3D Models
BlueROV2
BlueROV2 thumbnail
Vertical: 2
Horizontal: 4 (vectored)

Bollard Thrust:
Forward (45°): 9 kgf
Vertical: 7 kgf
Lateral (45°): 9 kgf
Degrees of Freedom: 5

Heave (up/down)
Surge (forward/back)
Sway (left/right)
Yaw (turning)
Roll (lean side down)
Length: 457 mm
(18 in)

Width: 338 mm
(13.3 in)

Height: 254 mm
(10 in)
BLUEROV2-R4 (.zip)
BLUEROV2-R3 (.zip)
BLUEROV2-R1 (.zip)
BlueROV2 Heavy
BlueROV2 Heavy thumbnail
Vertical: 4
Horizontal: 4 (vectored)

Bollard Thrust:
Forward (45°): 9 kgf
Vertical: 14 kgf
Lateral (45°): 9 kgf
Degrees of Freedom: 6

Heave (up/down)
Surge (forward/back)
Sway (left/right)
Yaw (turning)
Pitch (tilt nose)
Roll (lean side down)
Length: 457 mm
(18 in)

Width: 575 mm
(22.6 in)

Height: 254 mm
(10 in)
BlueROV2 Heavy 3D Model (GrabCAD)
BROV2-HEAVY-FILES (.zip)
BlueBoat
BlueBoat thumbnail
Horizontal: 2 (forwards)

Bollard Thrust:
Forward: 8.2 kgf
Degrees of Freedom: 2

Surge (forward/back)
Yaw (turning)
120 x 93 x 46 cm (deployed)
120 x 71 x 24 cm (folded)
120 x 46 x 20 cm (packaged)
BLUEBOAT_120_BR-101447_RevA_PUB (.zip)
BLUEBOAT_HULL_SET_BR-101652 (.zip)
BLUEBOAT_STARBOARD_HATCH_LID_ASSEMBLY_BR-101667 (.zip)
BLUEBOAT_PORT_HATCH_LID_ASSEMBLY_BR-101745 (.zip)
BLUEBOAT_CROSSBARS_BRACKETS_BR-101645 (.zip)
BLUEBOAT_CROSSTUBE_BR-101639 (.zip)
[Retired]

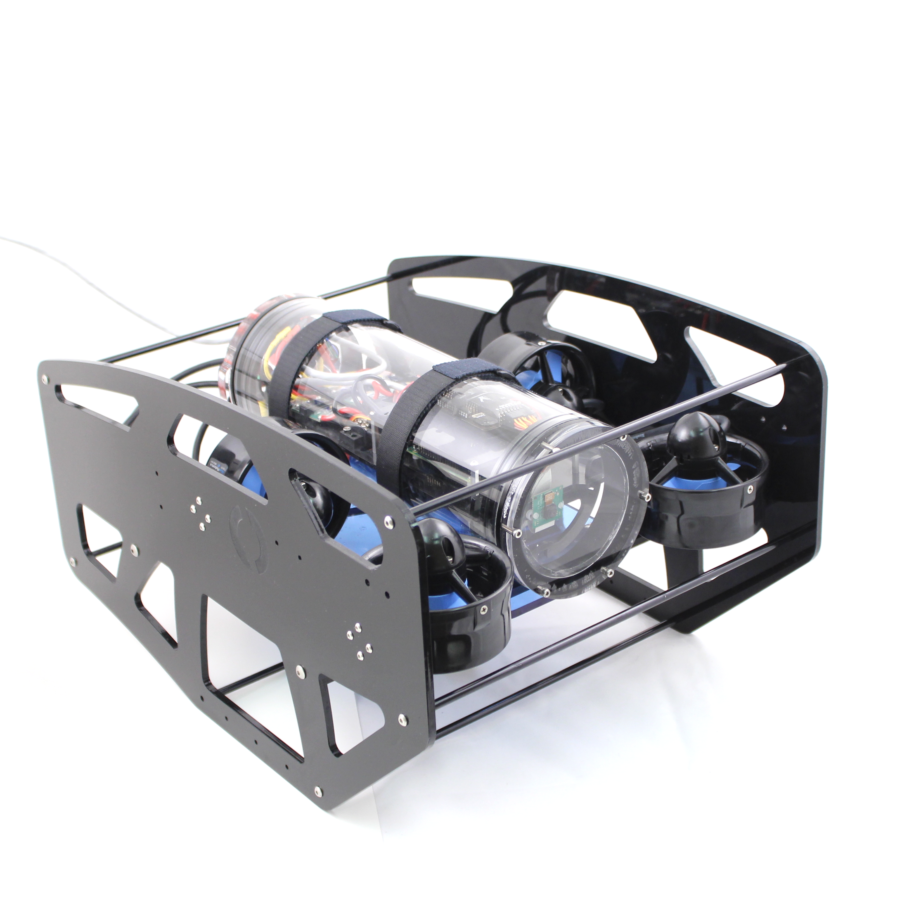

BlueROV
BlueROV thumbnail
Vertical: 3
Horizontal: 3

Bollard Thrust:
Forward: 4.72 kgf
Vertical: 7.08 kgf
Lateral: 2.36 kgf
Degrees of Freedom: 6

Heave (up/down)
Surge (forward/back)
Sway (left/right)
Yaw (turning)
Pitch (tilt nose)
Roll (lean side down)
Length: 483 mm
(19 in)

Width: 330 mm
(13 in)

Height: 267 mm
(10.5 in)
BlueROV 3D Model (GrabCAD)
BROV-R1 (.SLDPRT)
BROV-R1 (.STEP)
BROV-R1 (.IGS)
BROV-R1 (.STL)

Frames and Mounting

Component          UsageMaterial / FinishWeight                   Models
BlueROV2 Frame
BlueROV2 Frame thumbnail
Base frame of the BlueROV2.

Supports the enclosures,
6 thrusters, buoyancy foam,
ballast, lights, and gripper.
HDPE, black
BlueROV2 Heavy Thruster Guards
BlueROV2 Heavy Thruster Guards thumbnail
Heavy extension frame for
the BlueROV2.

Supports four vertical
thrusters, with handles
for convenient carrying.
HDPE, black BROV2-HEAVY-FILES (.zip)
BlueROV2 Payload Skid
BlueROV2 Payload Skid thumbnail
Add-on frame to the BlueROV2,
for mounting custom payloads.
HDPE, black BROV2_PAYLOAD_SKID_BR-100233 (.zip)
BlueROV2 Roof Rack
BlueROV2 Roof Rack thumbnail
A rack for mounting payloads
on top of the BlueROV2.
Aluminum 5052-H34177 g ROOF_RACK_BR-102258_PUBLIC (.zip)
BlueBoat Hull Set
BlueBoat Hull Set thumbnail
Hulls for the BlueBoat.LDPE BLUEBOAT_HULL_SET_BR-101652 (.zip)
BlueBoat Hull Bushings
BlueBoat Hull Bushings thumbnail
Bushings for mounting parts
near the base of the BlueBoat
hulls.

Recommended for use with
M6 or #10 socket head cap screws
Stainless steel 316, black oxide coated
BlueBoat Payload Bracket
BlueBoat Payload Bracket thumbnail
A hull mount for holding
payloads below the waterline
on the BlueBoat.
Aluminum 6061-T6, type II anodized 280 g PAYLOAD_BRACKET_BR-101337_RevA_PUBLIC (.zip)
Ping2 Integration Kit for BlueBoat
Ping2 Integration Kit for BlueBoat thumbnail
Components for mounting a
Ping2 Echosounder on a BlueBoat
Aluminum 6061-T6w/o sonar:
68.5 g
PING2_MOUNT_FOR_BLUEBOAT_BR-102407 (.zip)
BlueBoat Crossbars and Brackets
BlueBoat Crossbars and Brackets thumbnail
A pair of crossbars with brackets
for mounting to the BlueBoat.
Crossbars:
Aluminum 6061-T6

Brackets:
Polycarbonate 30% glass-filled
BLUEBOAT_CROSSBARS_BRACKETS_BR-101645 (.zip)
BlueBoat Frame Bushings
BlueBoat Frame Bushings thumbnail
Bushings for mounting parts
onto the BlueBoat crossbars.
Delrin
BlueBoat Crosstube
BlueBoat Crosstube thumbnail
Tube for holding cables
between the BlueBoat hulls.
EPDM rubber BLUEBOAT_CROSSTUBE_BR-101639 (.zip)
BlueBoat Battery Velcro
BlueBoat Battery Velcro thumbnail
Velcro for mounting batteries
in the BlueBoat hulls.
Acrylic Velcro
BlueBoat Hull Fairings
BlueBoat Hull Fairings thumbnail
Protection for BlueBoat motor
cables.
Polycarbonate 30% glass-filled
BlueBoat Hatch Lid (Port)
BlueBoat Hatch Lid (Port) thumbnail
Hatch lid for the port side
BlueBoat hull.
Polycarbonate 30% glass-filled, ABS BLUEBOAT_PORT_HATCH_LID_ASSEMBLY_BR-101745 (.zip)
BlueBoat Hatch Lid (Starboard)
BlueBoat Hatch Lid (Starboard) thumbnail
Hatch lid for the starboard
side BlueBoat hull.
Polycarbonate 30% glass-filled, ABS BLUEBOAT_STARBOARD_HATCH_LID_ASSEMBLY_BR-101667 (.zip)
BlueBoat Hatch Base and Latches
BlueBoat Hatch Base and Latches thumbnail
Mount for the BlueBoat hatch
lids.
Polycarbonate 30% glass-filled, Aluminum 6061-T6
BlueROV2 Fairing
BlueROV2 Fairing thumbnail
Protection for main BlueROV2
buoyancy foam.
Polycarbonate, blue BLUEROV2_FAIRING_BR-100256 (.zip)
BlueROV2 Heavy Fairing Add-on
BlueROV2 Heavy Fairing Add-on thumbnail
Protection for additional
buoyancy foam on BlueROV2
heavy configuration
Polycarbonate, blue BROV2-HEAVY-FILES (.zip)
Watertight Enclosure Clamps
Watertight Enclosure Clamps thumbnail
Mounts to hold enclosures
in place against a flat surface,
or each other.
Aluminum 6061-T6, type III anodized
Buna-N 50A
Stainles steel 316
50 mm (2"): 54 g
75 mm (3"): 161 g
100 mm (4"): 192 g
130 mm (5"): 599 g
150 mm (6"): 645 g
200 mm (8"): 822 g
WTE2_CLAMP_BR-102710-002 (.zip)
WTE3_CLAMP_BR-102710-003 (.zip)
WTE4_CLAMP_BR-102710-004 (.zip)
WTE5_CLAMP_BR-102710-005 (.zip)
WTE6_CLAMP_BR-102710-006 (.zip)
WTE8_CLAMP_BR-102710-008 (.zip)
Enclosure Cradles (4" Series)
Enclosure Cradles (4
Mounts to hold the 4"
electronics enclosure on the
BlueROV2.
Aluminum 6061-T684 g VBROV-M-CRADLE-EXTRUSION-R1 (.zip)
T200 Mounting Bracket
T200 Mounting Bracket thumbnail
Enables more versatile mounting
options for the T200 Thruster.
Polycarbonate T100-P-BRACKET-R1 (.zip)

Visibility and Branding

ProductPurpose
High Visibility USV Safety Flag
High Visibility USV Safety Flag thumbnail
Alerting people of a nearby USV, to protect them and the vehicle.
Commonly used on the BlueBoat.
Sticker
Sticker thumbnail
Highlighting that a vehicle is powered by Blue Robotics components,
or sharing your love for our company!

Thrusters, Actuators, and Lights

Thrusters and Waterproof Motors

These thrusters and motors use our patented flooded design, which makes them powerful, efficient, compact, and affordable. They use three-phase brushless motors optimized for underwater use, and are controlled by a sensorless brushless electronic speed controller (ESC). Bidirectional ESCs (like our BasicESC) can run a motor both forwards and in reverse.
ProductMax Thrust  (FWD/REV)Electrical                                       Depth (msw)Propeller                     DimensionsWeight (w/ cable)3D Models
T500
T500 thumbnail
@12V:  6.0 / 4.0 kg f
@16V:  9.3 / 6.2 kg f
@20V:  13.0 / 8.5 kg f
@24V:  16.1 / 10.5 kg f
Voltage: 7–24 volts

Max Current (Power):
@12V:  16.9 Amps (202 Watts)
@16V:  25.1 Amps (402 Watts)
@20V:  34.0 Amps (681 Watts)
@24V:  43.5 Amps (1044 Watts)
Rating:
300 m
Material:
Polycarbonate

Blades: 3

Diameter: 114.5 mm
Length:
160 mm

Diameter:
141 mm
Air: Polycarbonate 10% glass-filled
Epoxy
Stainless steel 316
Plastic
POM
Polyurethane
Aluminum 7075-T6
FKM
Buna-N

Water: 1157 g
T500-THRUSTER-R1-PUBLIC (.zip)
T200
T200 thumbnail
@12V:  3.71 / 2.92 kg f
@16V:  5.25 / 4.1 kg f
@20V:  6.7 / 5.05 kg f
Voltage: 7–20 volts

Max Current (Power):
@12V:  17 Amps (205 Watts)
@16V:  24 Amps (390 Watts)
@20V:  32 Amps (645 Watts)
Tested:
500+ m
Material:
Polycarbonate

Blades: 3

Diameter: 76 mm
Pitch (0.75D): 22.5°
Length:
113 mm

Diameter:
100 mm
Air: 344 g

Water: 156 g
T200-THRUSTER-R1 (.zip)
M200
M200 thumbnail
[w/ Weedless Propeller]
@16V:  5.63 / 2.81 kg f
Voltage: 7–20 volts

Max Current (Power):
@12V:  17 Amps (205 Watts)
@16V:  24 Amps (390 Watts)
@20V:  32 Amps (645 Watts)
Tested:
300+ m
[Optional]
Material:
Glass-filled polycarbonate

Blades: 2

Diameter: 112 mm
Pitch (0.75D): 14°
[No propeller]
Length:
73.6 mm

Diameter:
40 mm
Air: 282 g

Water: 217 g
M200_STANDARD_BR-101376_PUBLIC (.zip)
M200_BB120_BR-101380_PUBLIC (.zip)

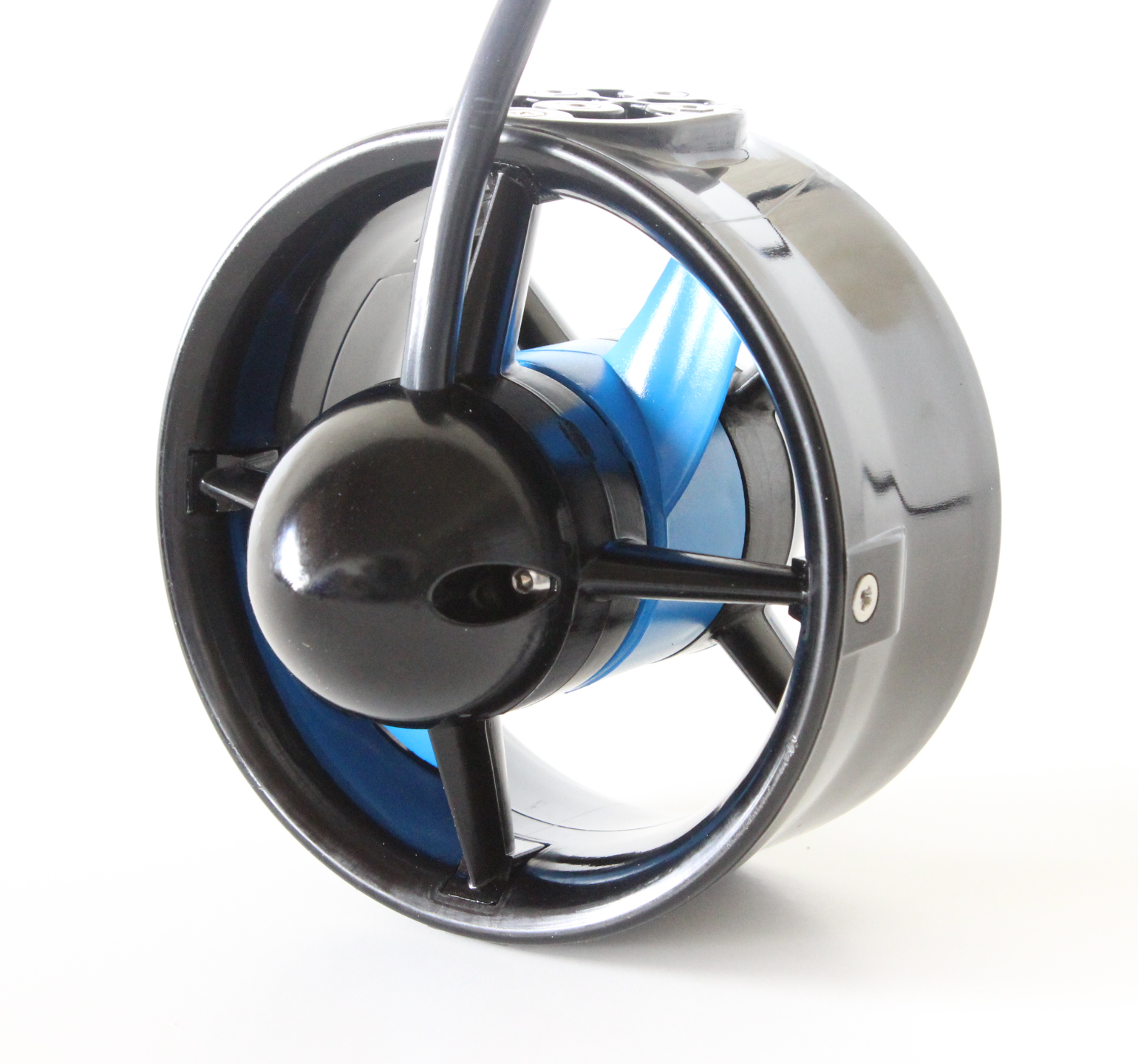

[Retired] T100
T100 thumbnail
@12V:  2.36 / 1.82 kg fVoltage: 12 volts

Max Current (Power):
@12V:  11.5 Amps (130 Watts)
Material:
Polycarbonate

Blades: 2

Diameter: 76 mm
Length:
101 mm

Diameter:
97 mm
Air: 295 g

Water: 120 g
T100-THRUSTER-R1 (.zip)

Speed Controllers (ESCs)

These bi-directional electronic speed controllers allow controlling brushless DC motors like those used in our thrusters. They are controlled by a servo-style PWM signal, where a pulse-width of 1100 μs corresponds to max reverse, 1900 μs max forward, and 1500 μs (+/- 25 μs of deadband) is stopped.
ESCsVoltageMax CurrentSignal VoltageUpdate Rate3D ModelsDocumentsFirmware

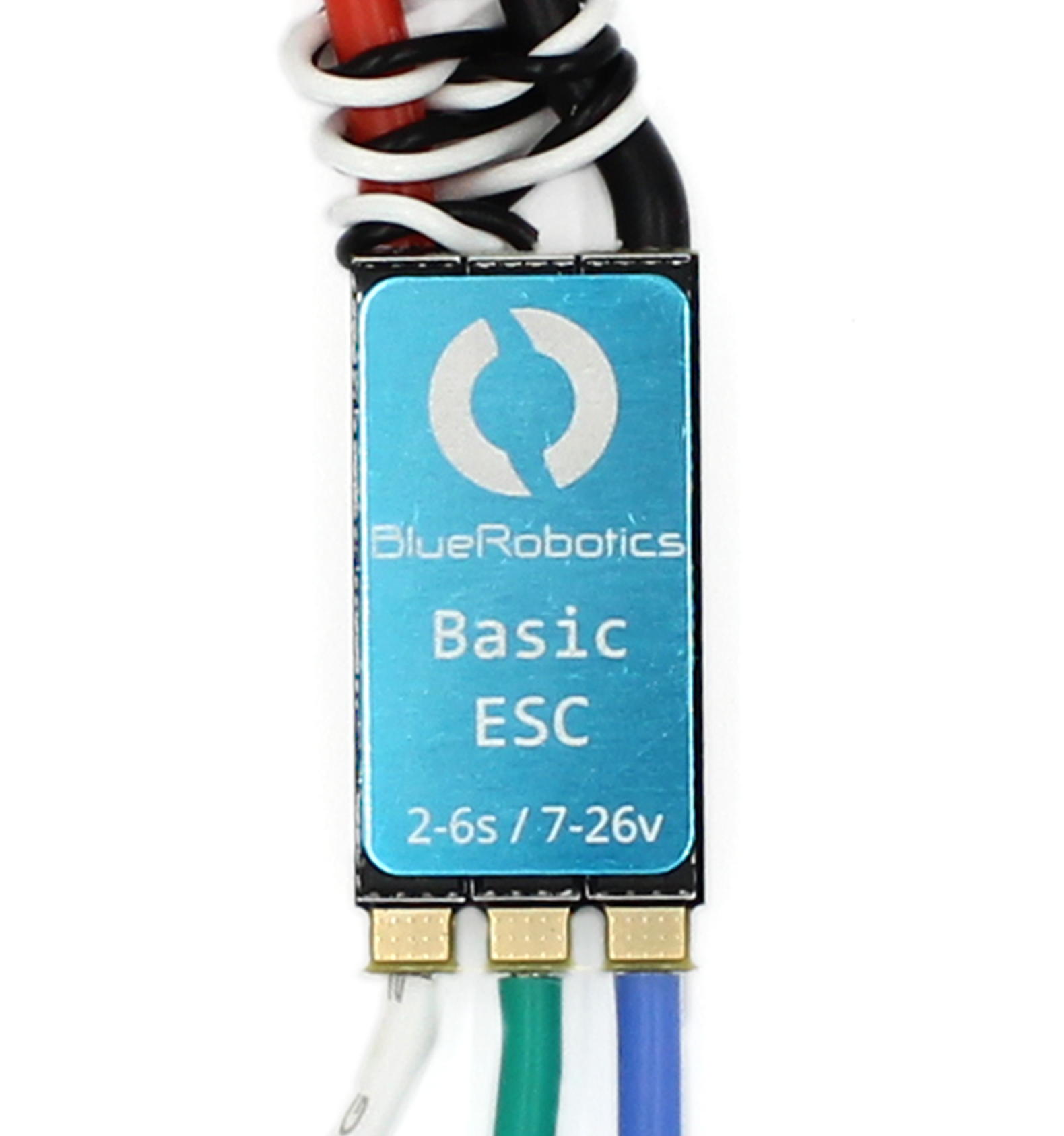

Basic ESC
Basic ESC thumbnail
7-26 V (2-6S)30 A (depending on cooling)3.3-5 VMax: 400 Hz BESC30-R3 (.zip)
BLHeli_S Version 16.x manual (.pdf)
BLHeli_BRBasicESC-R_H_15-Rev.16.6-Multi_170921 (.ini)
BLHeli_S 16.6
Basic ESC 500
Basic ESC 500 thumbnail
7–26 V (2–6S)50 A (depending on cooling)3-pin servo connector (0.1” pitch) (ground, blank, signal) BESC500-R1 (.zip)

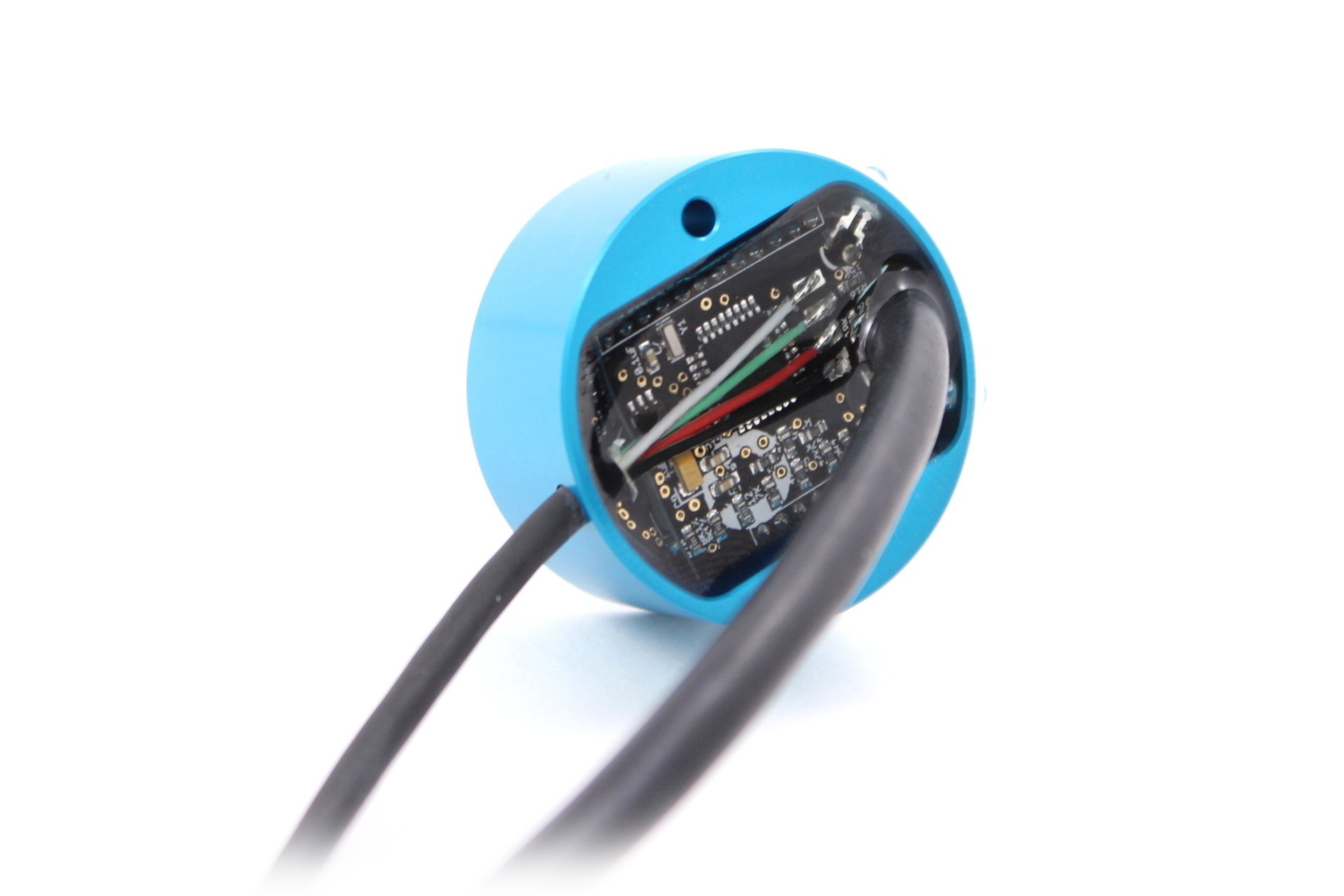

[Retired] Blue ESC
6-22 VIn water: 35 A
In air: 25 A
PWM: 3.3-5 V
I2C: 5 V
50-400 Hz SimonK tgy

Grippers

A gripper is a useful tool for picking up small objects, attaching recovery lines, or freeing a snagged tether. Other manipulators may be useful in cleaning, inspection, or repair tasks. See this forum post for some community-designed jaw alternatives.
GrippersJawPressure RatingPowerSignalWeight (w/ cable)Documents3D Models
Newton Gripper
Newton Gripper thumbnail


(Sediment Sampler)
(Sediment Sampler) thumbnail
Standard:
Grip (at tip): 97N
Grip (in middle): 124N
Opening: 62 mm

Sediment Sampler:
Max Collection Volume:
300 cc
Cup Diameter: 120 mm
Cup Depth: 25 mm
Aluminum 6061-T6Supply Voltage: 9–18 volts

Peak Current: 6 amps
PWM Voltage: 3.3 volts

PWM neutral: 1500 µs

PWM open: >1530 µs–1900 µs

PWM close: <1470 µs–1100 µs
Air: M5x0.8

Water: 524 g
Newton Gripper Mount Drilling Template (.pdf)
Brushed ESC Schematic (.pdf)

NEWTON-GRIPPER-ASM-R3-PUBLIC (.zip)
NEWTON-MOUNT-ASM-R1-PUBLIC (.zip)

NEWTON_SEDIMENT_SAMPLER_ATTACHMENT_BR-102559 (.zip)

Lights and Indicators

These lights and indicators can help to see with a camera, or help to find and/or troubleshoot an enclosure.
LightsPowerPressure      RatingSignalLight3D ModelsDocuments
Lumen Subsea Light
Lumen Subsea Light thumbnail
Supply Voltage (Vin): 7–48 V

Peak Current: (15/Vin)  A
500 mPWM:
exponential brightness
from 0% at 1100 µs
to 100% at 1900 µs
pulse-durations

ON:
Pull signal to logic HIGH (3V - Vin)

OFF:
Default state /
Pull signal wire to ground
Brightness: up to 1,500 lumens

Color temperature: 5,700 kelvin

Beam Angle: 135 degrees in water
LUMEN-LIGHT-R3-PUBLIC (.zip) Lumen Schematic (.pdf)
XLamp - XHP70B-00-0000-0D0BP20E2 (Cree - current)
XLamp - MKRAWT-00-0000-0B00H4051 (Cree - previous)
NavLight
NavLight thumbnail
Supply Voltage (Vin): 5–12 V (16 V*)

Power Draw: 2.5 W
1000 mON:
Default state

OFF:
Pull signal to ground
*Dims light if Vin > 12V
Brightness:
Sides: 180 lm
Top: 90 lm

Color temperature: 6000K
NAVLIGHT_BR-101284_PUBLIC (.zip)
Subsea LED Indicator
Subsea LED Indicator thumbnail
Supply Voltage (Vin):
Blue, Green, White Indicator: 3–18 VDC
Red Indicator: 3–30 VDC

Peak Current:
Blue, Green, White Indicator: 30 mA
Red Indicator: 50 mA
950 m


[Retired]
R1 (red body)
Tested depth: 300 m
ON:
Supply power
(no signal wire)

OFF:
Default state /
Remove power
Colors: White/Red/Green/Blue INDICATOR-M10-X-R2-PUBLIC (.zip)

Enclosures, Buoyancy, and Ballast

Watertight Enclosures

These configurable watertight enclosures are great for all kinds of marine robotics applications. Modular end-caps give you options, with clear and flat end-caps with holes for cable penetrators and sensors, and domes for cameras.

In the 3D Models, M refers to Metal (aluminium), and P refers to Plastic (acrylic or polycarbonate).
See o-rings table for o-ring details.
Product TypeSeriesMaterial(s)External Length(s)Depth Rating         Inner Diameter         3D Models
Tiny Box
Tiny Box thumbnail
RectangularGlass-filled Polycarbonate(without penetrators)
76 x 40 x 33 mm
500 mInternal Lengths:
49 x 29 x 20 mm
WetLink-Cable-Splice-Kit-BR-101170 (.zip)
Watertight Box
Watertight Box thumbnail
RectangularAluminum 6061-T6, type II anodized(no feet/handles):
1L:
  157 x 122 x 88 mm

5L:
  322 x 212 x 113 mm
300 mInternal Lengths:
1L:
135 x 100 x 74 mm

5L:
300 x 190 x 87 mm
WATERTIGHT_BOX_1L_BR-102603 (.zip)
WATERTIGHT_BOX_5L_BR-102653 (.zip)
3D printable hardware mounting brackets
Watertight Enclosure Tubes
Watertight Enclosure Tubes thumbnail
Cylindrical
Locking
Series (2-8")
Aluminum 6061-T6, type II anodized
/ Cast Acrylic

Precision machined ends
50 mm (2"):
  100 mm
  150 mm
  300 mm

75 mm (3"):
  150 mm
  240 mm
  300 mm
  400 mm

100 mm (4"):
  200 mm
  300 mm
  400 mm

130 mm (5"):
  300 mm
  500 mm

150 mm (6"):
  300 mm
  500 mm

200 mm (8"):
  300 mm
  500 mm
Alum / Acrylic
1000 m / 225 m
1000 m / 130 m
1000 m / 100 m

Alum / Acrylic
1000 m / 275 m
1000 m / 150 m
900 m / 135 m
750 m / 120 m

Alum / Acrylic
1000 m / 140 m
1000 m / 100 m
800 m / 60 m

Alum / Acrylic
1000 m / -
500 m / -

Alum / Acrylic
1000 m / -
1000 m / -

Alum / Acrylic
1000 m / -
1000 m / -
Alum / Acrylic
50.0 ± 0.5 mm
/ 49.5 ± 1.5 mm



80.14 ± 0.20 mm
/ 76.2 ± 2.0 mm




104.16 ± 0.20 mm
/ 101.6 ± 2.1 mm



130 ± 0.5 mm
/ -


150 ± 0.5 mm
/ -


200 ± 0.5 mm
/ -

2" Series


WTE2_ACRYLIC_LOCKING_TUBES (.zip)
WTE2_ALUMINUM_LOCKING_TUBES (.zip)

3" Series


WTE3_ACRYLIC_LOCKING_TUBES (.zip)
WTE3_ALUMINUM_LOCKING_TUBES (.zip)

4" Series


WTE4_ACRYLIC_LOCKING_TUBES (.zip)
WTE4_ALUMINUM_LOCKING_TUBES (.zip)

5" Series


WTE5_M_LOCKING_TUBE_300_BR-101409-300 (.zip)
WTE5_M_LOCKING_TUBE_500_BR-101409-500 (.zip)

6" Series


WTE6_M_LOCKING_TUBE_300_BR-101411-300 (.zip)
WTE6_M_LOCKING_TUBE_500_BR-101411-500 (.zip)

8" Series


WTE8_M_LOCKING_TUBE_300_BR-101412-300 (.zip)
WTE8_M_LOCKING_TUBE_500_BR-101412-500 (.zip)
O-Ring Flanges
O-Ring Flanges thumbnail
Cylindrical
Locking
Series (2-8")
Aluminum 6061-T6, type II anodizedInside Tube:
50 mm (2"):
  15.5 ± 0.1 mm
75 mm (3"):
  19.1 ± 0.1 mm
100 mm (4"):
  19.1 ± 0.1 mm
130 mm (5"):
  28.0 ± 0.1 mm
150 mm (6"):
  30.0 ± 0.1 mm
200 mm (8"):
  36.0 ± 0.1 mm
Mounting Hole Circle:

43.0 ± 0.1 mm

68.6 ± 0.1 mm

94.0 ± 0.1 mm

115.0 ± 0.1 mm

142.0 ± 0.1 mm

186.0 ± 0.1 mm
WTE2-M-LOCKING-FLANGE-SEAL-R1 (.zip)
WTE3-M-LOCKING-FLANGE-SEAL-R1 (.zip)
WTE4-M-LOCKING-FLANGE-SEAL-R1 (.zip)
WTE5_LOCKING_FLANGE_BR-102200 (.zip)
WTE6_LOCKING_FLANGE_BR-102201 (.zip)
WTE8_LOCKING_FLANGE_BR-102202 (.zip)

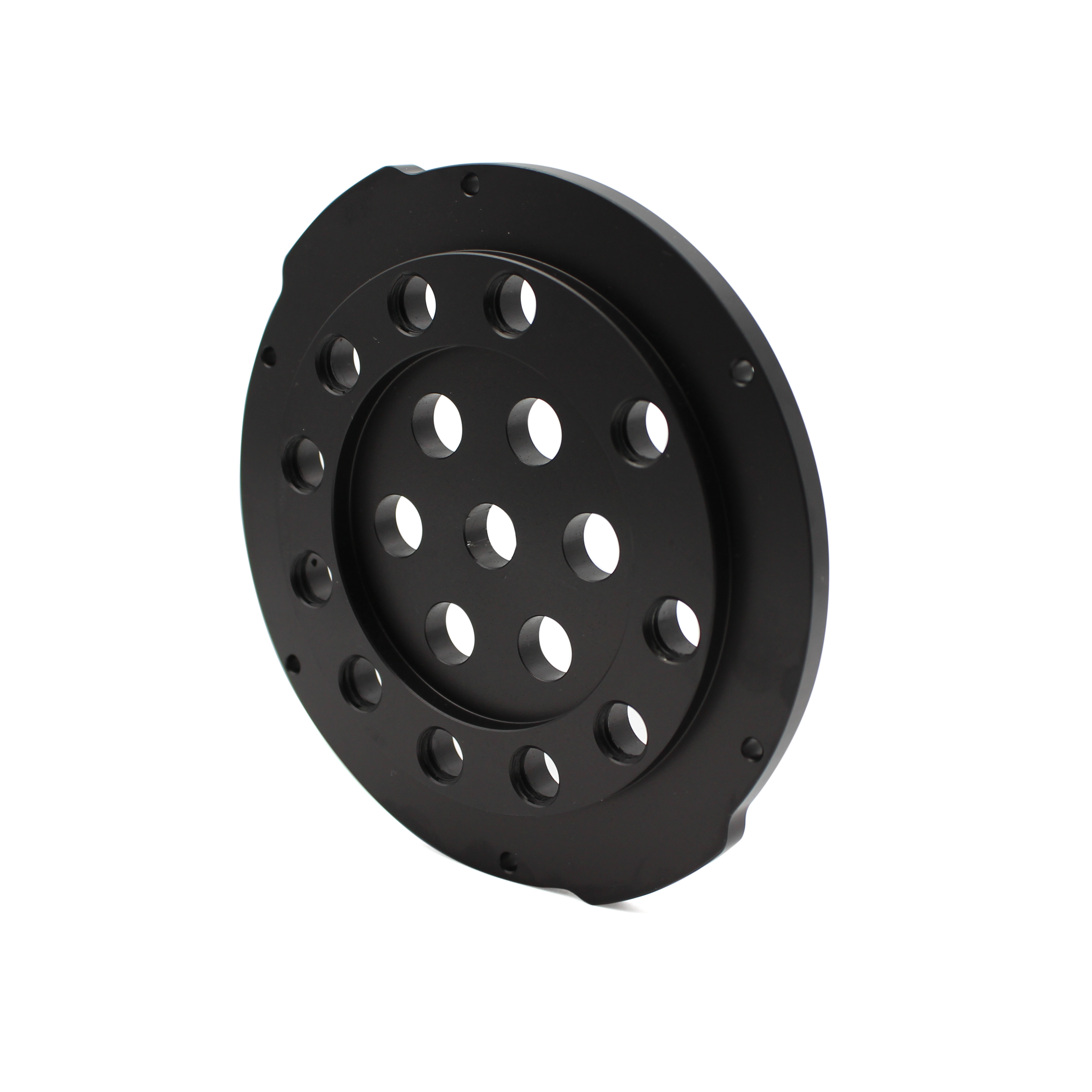

End Caps / Flange Caps / Domes
End Caps / Flange Caps / Domes thumbnail
Cylindrical
Locking
Series (2-8")
Aluminum 6061-T6, type II anodized
/ Cast Acrylic
/ Hardened polycarbonate

Polycarbonate dome retaining rings
End Caps:
50 mm (2"):
Acrylic:
  600 m (Blank)
Aluminum Flange Caps:
  1000 m (3 options)

75 mm (3"):
Acrylic:
  400 m (Blank)
Aluminum:
  1000 m (3 options)

100 mm (4"):
Acrylic:
  500 m (Blank)
Aluminum:
  1000 m (7 options)

130 mm (5"):
Aluminum:
  1000 m (4 options)

150 mm (6"):
Aluminum:
  1000 m (3 options)

200 mm (8"):
Aluminum:
  1000 m (4 options)

Domes:
50 mm (2"):
  950 m (Acrylic)

75 mm (3"):
  750 m (Acrylic)

100 mm (4"):
  500 m (Acrylic)

130 mm (5"):
  600 m (Hardened polycarbonate)

2" Series


WTE2-P-END-CAP-R2 (.zip)
WTE2-M-LOCKING-FLANGE-CAP-BLANK-R1 (.zip)
WTE2-M-LOCKING-FLANGE-CAP-2-HOLE-R1 (.zip)
WTE2-M-LOCKING-FLANGE-CAP-4-HOLE-R1 (.zip)
WTE2-P-DOME-R1 (.zip)
WTE2-P-RETAINING-RING-R1 (.zip)

3" Series


WTE3-P-END-CAP-R1 (.zip)
WTE3-M-END-CAP-R1 (.zip)
WTE3-M-END-CAP-4-HOLE-R1 (.zip)
WTE3-M-END-CAP-7-HOLE-R1 (.zip)
WTE3-P-DOME-R1 (.zip)
WTE3-P-RETAINING-RING-R1 (.zip)

4" Series


WTE4-P-END-CAP-BLANK-R1 (.zip)
WTE4-M-END-CAP-BLANK-R2 (.zip)
WTE4-M-END-CAP-5-HOLE-R1 (.zip)
WTE4-M-END-CAP-10XM10-R2 (.zip)
WTE4-M-END-CAP-14-HOLE-R1 (.zip)
WTE4-M-END-CAP-18XM10-R2 (.zip)
WTE4-M-END-CAP-4XM14-1XM10-R1 (.zip)
WTE4-M-END-CAP-8XM14-2XM10-R1 (.zip)
WTE4-M-END-CAP-8XM14-7XM10-R1 (.zip)
WTE4-P-DOME-R4 (.zip)
WTE4-P-DOME-RETAINING-RING-R1 (.zip)

5" Series


WTE5_END_CAP_BLANK_BR-102203-001 (.zip)
WTE5_END_CAP_5xM14_5xM10_BR-102203-002 (.zip)
WTE5_END_CAP_10xM14_7xM10_BR-102203-003 (.zip)
WTE5_END_CAP_26xM10_BR-102203-004 (.zip)
WTE5_DOME_AND_RETAINING_RING_BR-102597 (.zip)

6" Series


WTE6_END_CAP_BLANK_BR-102205-001 (.zip)
WTE6_END_CAP_5xM14_5xM10_BR-102205-002 (.zip)
WTE6_END_CAP_16xM14_13xM10_BR-102205-003 (.zip)

8" Series


WTE8_END_CAP_BLANK_BR-102206-001 (.zip)
WTE8_END_CAP_5xM10_5xM14_BR-102206-002 (.zip)
WTE8_END_CAP_10xM10_10xM14_BR-102206-003 (.zip)
WTE8_END_CAP_14xM10_16xM14_BR-102206-004 (.zip)

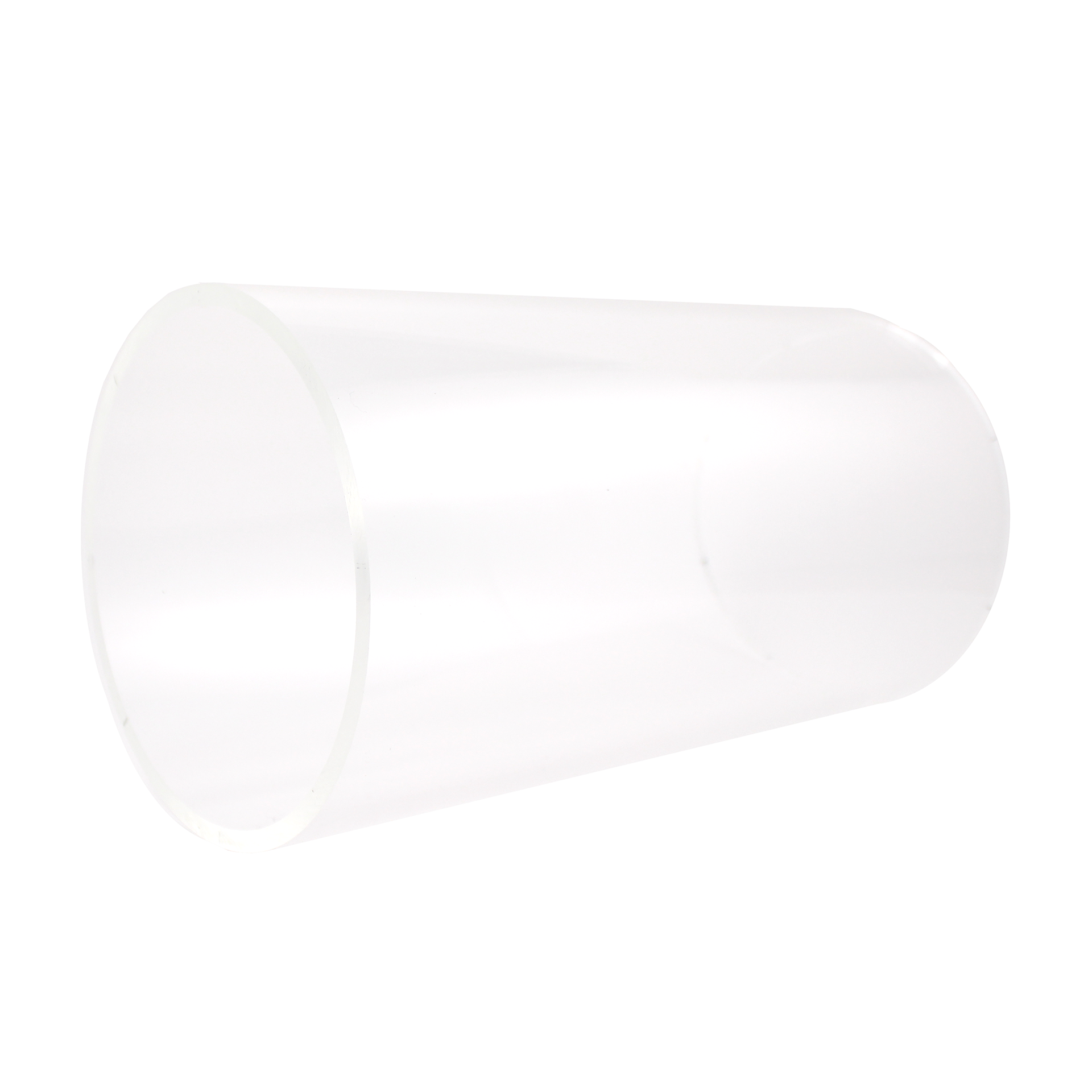

Enclosure Tubes
Enclosure Tubes thumbnail
Cylindrical
Non-Locking
Series (6", 8")
Cast Acrylic298mm (11.75")6": 65 m
8": 40 m
6": 151.9 ± 1.5 mm
8": 203.2 ± 1.4 mm
WTE6-P-TUBE-12-R1 (.zip)
WTE8-P-TUBE-12-R1 (.zip)

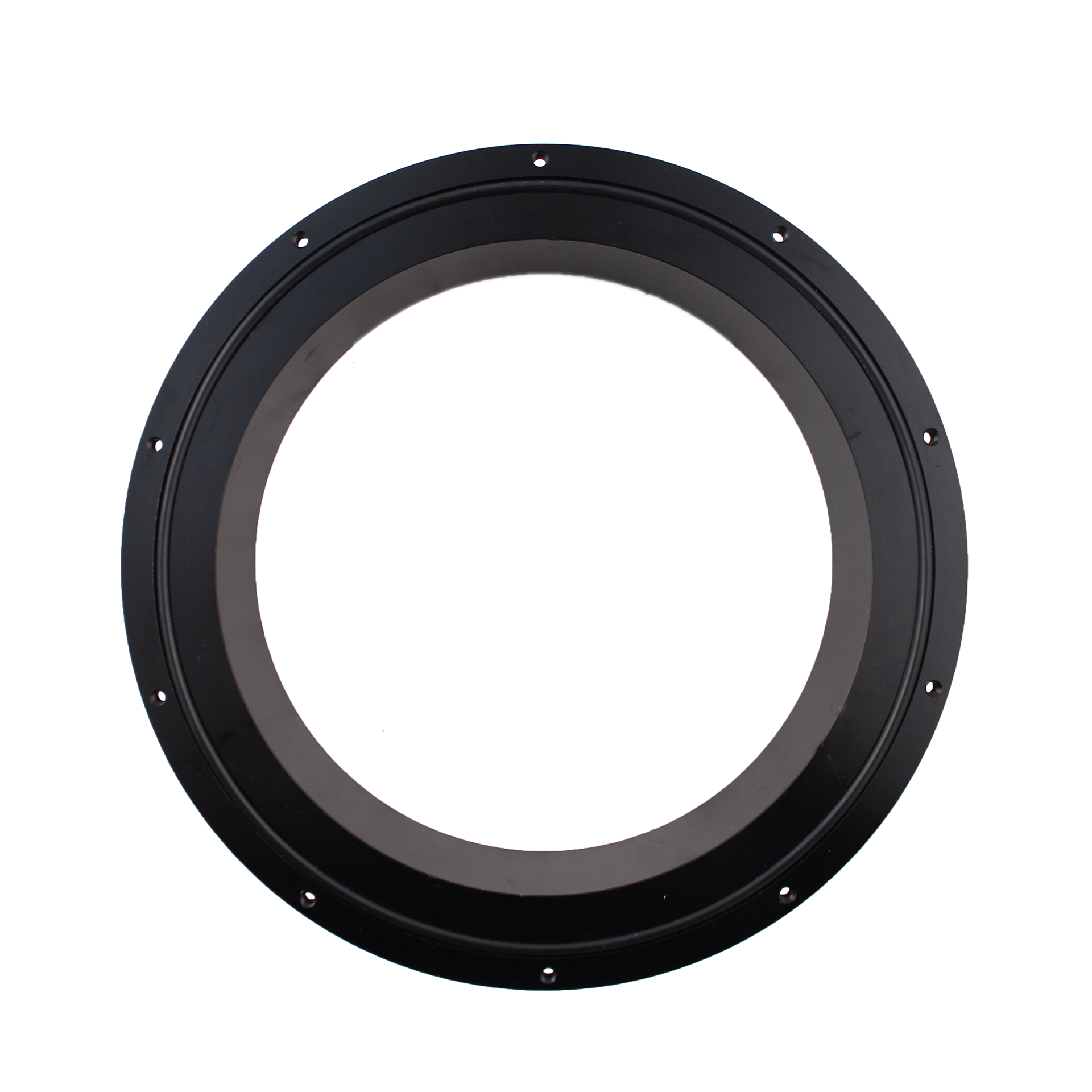

O-ring Flanges
O-ring Flanges thumbnail
Cylindrical
Non-Locking
Series (6", 8")
Aluminum WTE6-M-FLANGE-SEAL-R1 (.zip)
WTE8-M-FLANGE-SEAL-R1 (.zip)
End Caps
End Caps thumbnail
Cylindrical
Non-Locking
Series (6", 8")
Cast Acrylic /
Aluminum
6": 65 m (5 options)
8": 40 m (3 options)
WTE6_P_END_CAP_BLANK_BR-100273-004 (.zip)
WTE6_M_END_CAP_BLANK_BR-100273-003 (.zip)
WTE6_END_CAP_5xM10_BR-100273-002 (.zip)
WTE6_END_CAP_15xM10_BR-100273-001 (.zip)
WTE6-M-END-CAP-12XM14-12XM10-R1 (.zip)
WTE8-P-END-CAP-R1 (.zip)
WTE8-M-END-CAP-R1 (.zip)
WTE8-M-END-CAP-5-HOLE-R1 (.zip)
[End of Life]
O-ring Flanges
O-ring Flanges thumbnail
Cylindrical
Non-Locking
Series (3")
(Open Source)
Aluminum WTE3-M-FLANGE-SEAL-R2 (.zip)
[Retired]

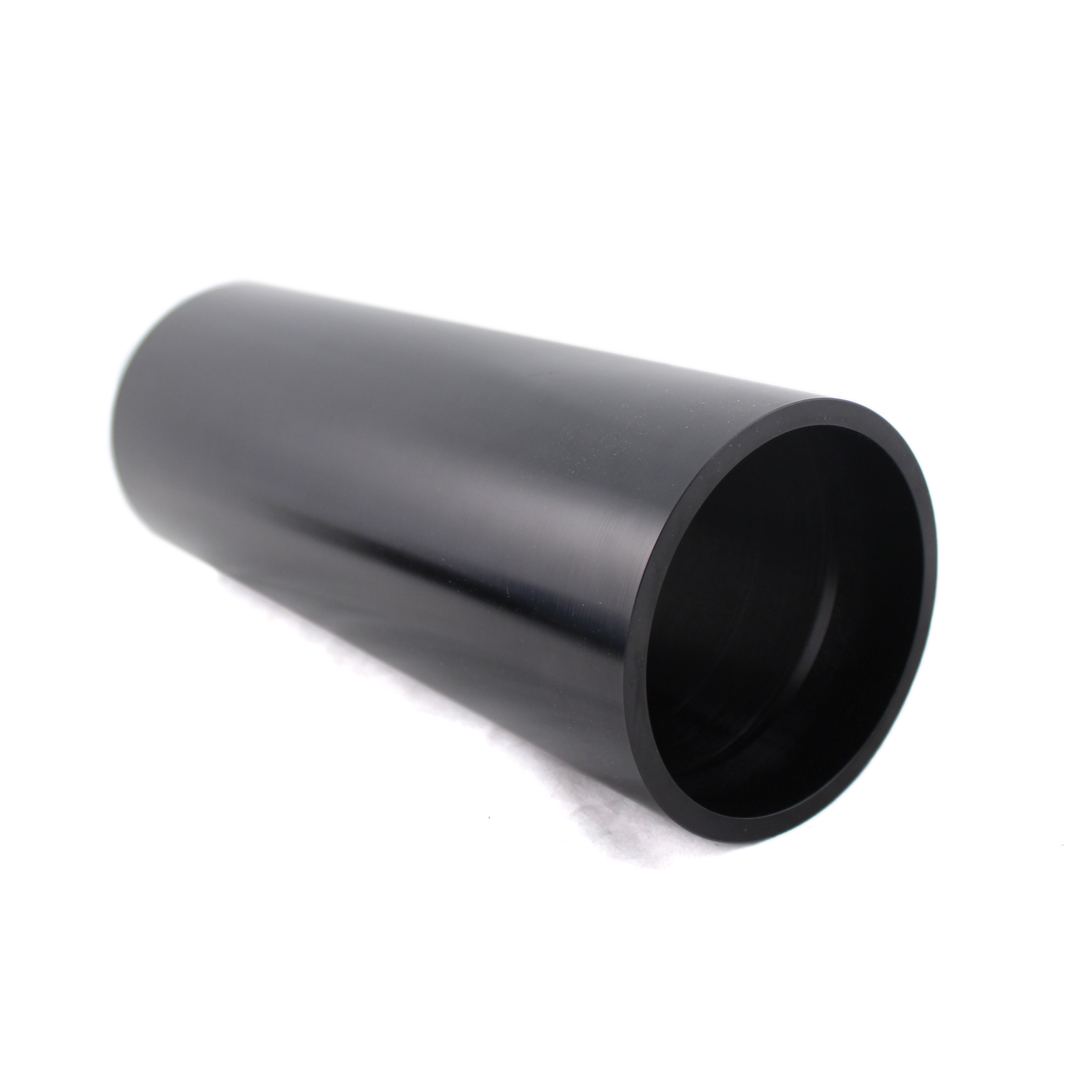

Enclosure Tubes
Enclosure Tubes thumbnail
Cylindrical
Non-Locking
Series
(2", 3", 4")
(Open Source)
Cast Acrylic /
Aluminum
2": 12"
3": 8.75", 12"
4": 12"
2": 100 m
3": 150 m
4": 100 m
WTE2-P-TUBE-12-R1 (.zip)
WTE3-P-TUBE-8P75-R2 (.zip)
WTE3-P-TUBE-12-R1 (.zip)
WTE4-P-TUBE-12-R2 (.zip)
[Retired]

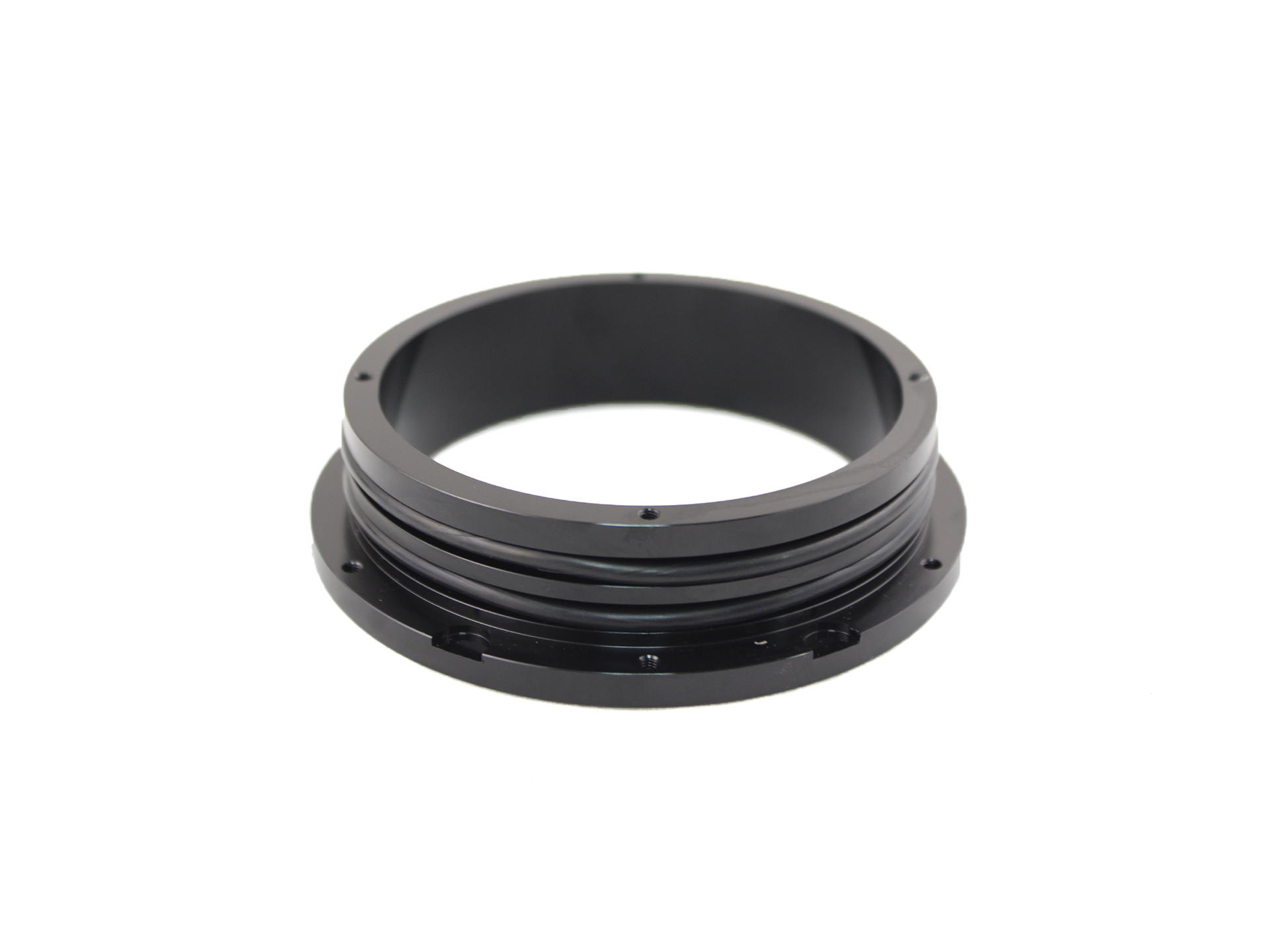

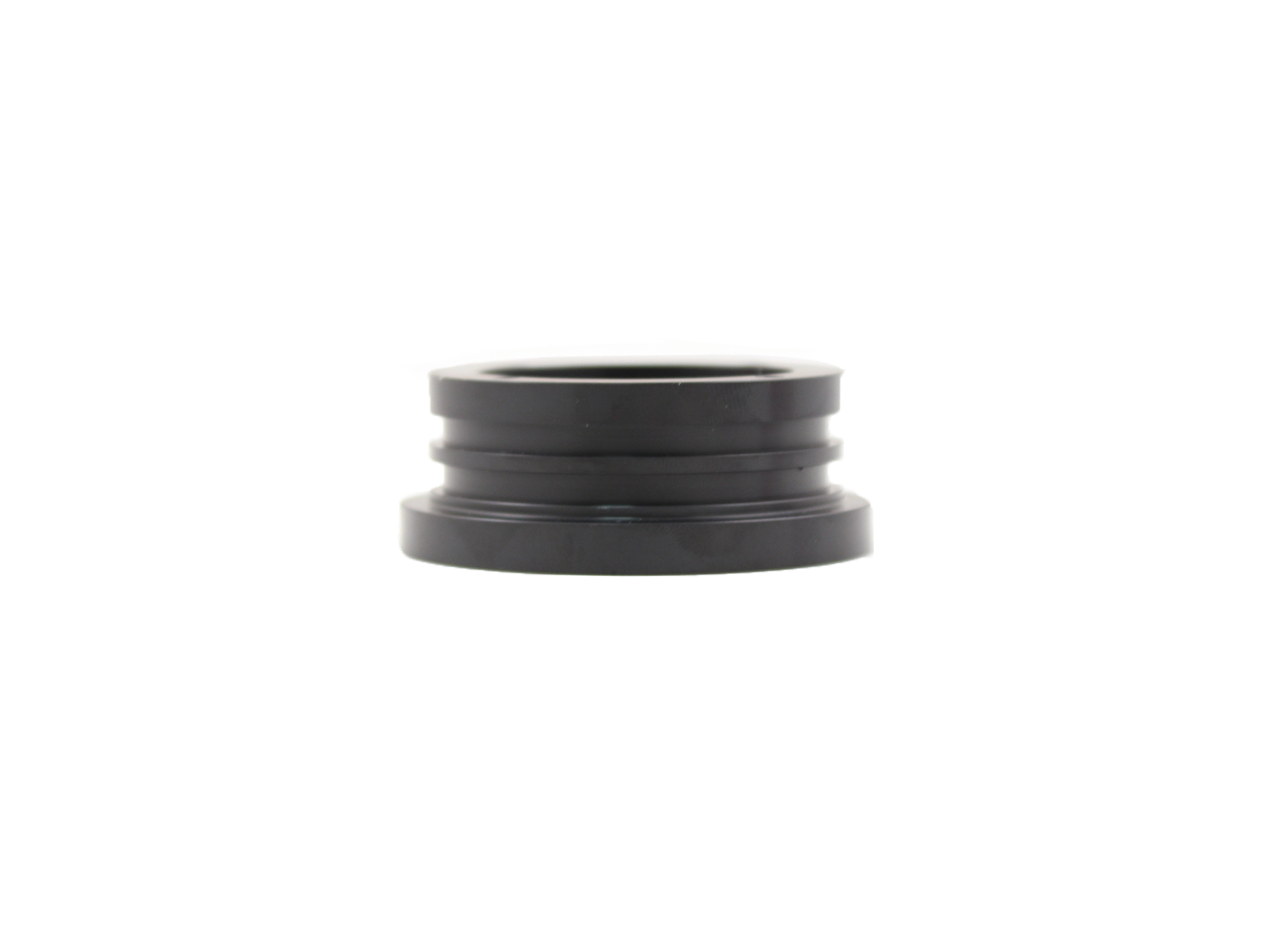

O-ring Flanges
O-ring Flanges thumbnail
Cylindrical
Non-Locking
Series (2", 4")
(Open Source)
Aluminum WTE2-M-FLANGE-SEAL-R4 (.zip)
WTE4-M-FLANGE-SEAL-R3 (.zip)
[Retired]
End Caps / Flange Caps / Domes
End Caps / Flange Caps / Domes thumbnail
Cylindrical
Non-Locking
Series
(2", 3", 4")
(Open Source)
Cast Acrylic /
Aluminum

Polycarbonate dome retaining rings
2": 100 m
3": 150 m (0 / 4 / 7 holes)
4": 100 m (0 / 5 / 10 / 14 / 18 holes)
WTE2-P-END-CAP-R2 (.zip)
WTE3-P-END-CAP-R1 (.zip)
WTE4-P-END-CAP-R1 (.zip)

Buoyancy and Ballast

These buoyancy foams and ballast weights can help to balance a vehicle by shifting its center of volume (buoyancy) and center of mass (gravity). With both points in the same location a vehicle is optimised for pitch and roll rotations, whereas with CoB above CoG there is a self-righting effect that keeps the vehicle upright.
ComponentDensityWeight (in air)Net Buoyancy (Lifting Force)Tested DepthMaterialDimensions3D ModelsDocuments
Ballast Weight
Ballast Weight thumbnail
8000 kg/m3191 g-165 gN/APassivated Stainless Steel (AISI316)58 x 42 x 12 mm BALLAST-200G-R2 (.zip)
Subsea Buoyancy Foam: R-3312
Subsea Buoyancy Foam: R-3312 thumbnail
192 kg/m3(1) 50 g
(2) 227 g
(3) 403 g
(4) 1512 g
(1) 212 g
(2) 953 g
(3) 1694 g
(4) 6363 g
Uncoated: 91 m

Coated: 182 m
LAST-A-FOAM® R-3312(1) 203 x 102 x 13 mm
(2) 305 x 152 x 25 mm
(3) 406 x 203 x 25 mm
(4) 610 x 203 x 64 mm
FLOAT-8X4X0P5-R1 (.zip)
FLOAT-12X6X1-R1 (.zip)
FLOAT-16X8X1-R1 (.zip)
FLOAT-24X8X2P5-R1 (.zip)
Product Data Sheet (PDS) (General Plastics)
Product Safety Sheet (SDS) (General Plastics)
Compatible Foam Adhesives & Sealants (General Plastics)
Subsea Buoyancy Foam: R-3318
Subsea Buoyancy Foam: R-3318 thumbnail
288 kg/m3(1) 148 g
(2) 2268 g
(1) 362 g
(2) 5598 g
Uncoated: 300 m

Coated: 488 m
LAST-A-FOAM® R-3318(1) 124 x 86 x 48 mm
(2) 610 x 203 x 64 mm
FLOAT-1P9X3P4X4P9-R1 (.zip)
FLOAT-24X8X2P5-R1 (.zip)
Product Data Sheet (PDS) (General Plastics)
Product Safety Sheet (SDS) (General Plastics)
Compatible Foam Adhesives & Sealants (General Plastics)
BlueROV2 Machined Buoyancy Foam
BlueROV2 Machined Buoyancy Foam thumbnail
288 kg/m3209 g488 gUncoated: 300 m

Coated: 488 m
LAST-A-FOAM® R-3318150 x 86 x 54 mm FLOAT-R3318-BROV2-R1-RP (.zip) Material Safety Data Sheet (MSDS) (General Plastics)
Compatible Foam Adhesives & Sealants (General Plastics)
BlueROV2 Heavy Machined Buoyancy Foam
BlueROV2 Heavy Machined Buoyancy Foam thumbnail
288 kg/m3Uncoated: 300 m

Coated: 488 m
LAST-A-FOAM® R-3318104 x 87 x 60 mm BROV2-HEAVY-FILES (.zip) R-3318 Material Safety Data Sheet (MSDS) (General Plastics)
Compatible Foam Adhesives & Sealants (General Plastics)

Sensors and Cameras

Temperature and Pressure/Depth Sensors

These sensors have an M10x1.5 thread for mounting, and a face-seal o-ring to prevent water ingress.
SensorsOperating DepthRegular MaintenancePressure ResolutionPressure AccuracyWet Operating TemperatureTemperature AccuracyArduSub Compatible?Documents3D ModelsCode Libraries
Bar 100
Bar 100 thumbnail

Keller 7LD - PA
0–1020 mN/A3 mbar (3 cm in fresh water)± 500 mbar (5.1 m in freshwater)-40°C–110°C± 2°C (between 0 to 50°C)Yes Keller PA-7LD Datasheet (.pdf)
Keller Communication Protocol 4LD-9LD (.pdf)
Keller LD Handling Instructions (.pdf)
Bar100 Schematic (.pdf)
BAR100_BR-101752_RevB_PUBLIC (.zip)
Bar100 Penetrator Nut (.pdf)
KellerLD-Arduino,
KellerLD-Python,
KellerLD-ArduPilot
Bar 30
Bar 30 thumbnail

MS5837-30BA
0–300mDaily drying.2 mbar (2 mm in fresh water)± 200 mbar (204 cm in fresh water)2 to 40°C± 4°C (between 0 to 60°C)Yes MS5837-30BA Data Sheet (.pdf)
BAR30-SENSOR-Schematic (.pdf)
BAR30-ASM-R2-PUBLIC (.zip)
BAR30-PRESSURE-SENSOR-R1 (.zip)
MS5837 Arduino,
MS5837 Python,
MS5xxx ArduPilot
Bar 02
Bar 02 thumbnail

MS5837-02BA
10mDaily drying.016 mbar (.16 mm in fresh water, 13cm in air at sea level)± 4 mbar (4 cm in fresh water)2 to 40°C± 2°C (between -20 to +85°C)No MS5837-02BA Data Sheet (.pdf)
Bar30/Bar02 Schematic (.pdf)
BAR02-ASM-R2-PUBLIC (.zip) MS5837 Arduino,
MS5837 Python
Celsius
Celsius thumbnail

TSYS01
0 - 975mN/AN/AN/A-40 to +125°C± 0.1°C (between -5 to 50°C)
± 0.5°C (between -40 to 125°C)
Yes TSYS01 Datasheet (.pdf)
Celsius-Temperature-Sensor-Schematic (.pdf)
CELSIUS-SENSOR-R2-PUBLIC (.zip)
CELSIUS-SENSOR-R1 (.zip)
TSYS01 Arduino,
TSYS01 Python,
TSYS01 ArduPilot

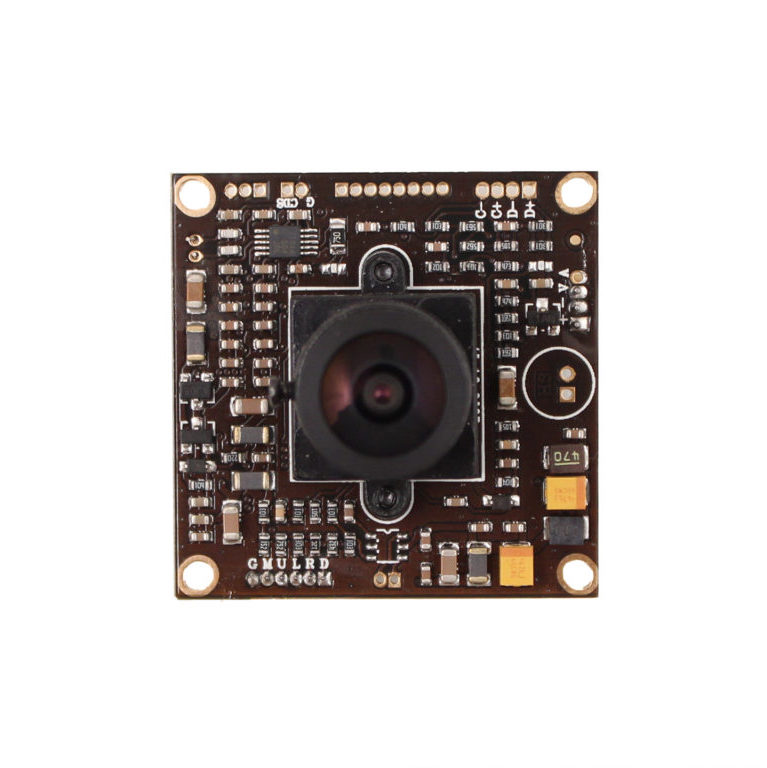

Cameras

A camera allows the pilot to see and record from the vehicle's point of view. If paired with a Camera Tilt Mount or other gimbal it can be moved during operation. Alternatively, a GoPro-compatible camera can be attached to a 3" enclosure end-cap (or other flat surface) by 3D printing this mount.
CameraLens                     Sensor                    Video StreamAudio        ElectricalWeightDimensions          3D ModelsDocuments
Low-Light HD USB Camera
Low-Light HD USB Camera thumbnail

Sony Exmor IMX322 / IMX323
Mount:
M12 x 0.5

Field of View:
80° (H) x 64° (V)

Focal Length:
2.97 mm
Format: 1/2.9"

Pixel Size:
2.8µm (H) x 2.8µm (V)

Minimum Illumination:
0.01 lux
Standards: 240p15 - 1080p30

Formats: H.264 / MJPEG / YUV2(YUYV)
single-channel, 44.1 kHz, Linear-PCM (L16)Supply Voltage: 5 V

Max Current: 220 mA
w/ cable: 17g

w/o cable: 13.5g
PCB:
32mm x 32mm

Mounting Holes:
28mm x 28mm (2.44mm)

PCB to lens:
23.25mm
CAM-USB-WIDE-R1 (.zip)
CAMTILT-P-LOW-LIGHT-HD-USB-R7 (.zip)
IMX322 Datasheet (.pdf)
IMX323 Datasheet (.pdf)
[Retired] Analog Low-Light Camera
Analog Low-Light Camera thumbnail

Sony Super HAD ICX810 / ICX811
Field of View:
128° (H) x 96° (V)

Focal Length:
2.1 mm
Format: 1/3"

Pixel Size:
5.0µm (H) x
7.4µm (V-NTSC)
6.25µm (V-PAL)

Minimum Illumination: 0.0003 lux
Standard: 700 TVL

Formats: NTSC or PAL
N/ASupply Voltage: 12 V

Max Current: 120 mA
PCB:
38mm x 38mm

Mounting holes:
34mm x 34mm (2.4mm)

PCB to lens: 22mm
CAM-ANALOG-R1 (.zip)
CAMTILT-P-MOUNT-ANALOG-R2 (.zip)
ICX810 / ICX811 Details (Wayback)
[Retired] Raspberry Pi Camera v2 w/ Wide Angle Lens
Raspberry Pi Camera v2 w/ Wide Angle Lens thumbnail

Field of View:
110° (H)

Focal Length:
1.7 mm
Standards: 1080p30N/APCB:
25mm x 24.5mm

Mounting Holes:
21mm x 13mm (2.2mm)

PCB to lens:
23.3mm
CAM-RPI-WIDE-R1 (.zip)
CAMTILT-P-MOUNT-RPI-R1 (.zip)

Leak Sensor

Leak sensors help to detect and warn about if a leak occurs, before it gets to and damages the electronics in an enclosure.
SensorElectricalSignalWeight3D ModelsDocuments
SOS Leak Sensor
SOS Leak Sensor thumbnail
Voltage: 3.3 - 5 V

Max Current: 20 mA
Digital, normally LOW
(leak pulls HIGH)
w/ cable and 2 probes: <10 g SOS-ASM-LEAK-SENSOR-R1 (.zip) SOS-LEAK-SENSOR-SCHEMATIC (.pdf)

Sonars and Acoustic Devices

Sonars

These sonars can be used for navigation, acoustic imaging, and depth profiling. For an overview of different device types and their main applications, see our Smooth Operators Guide to Underwater Sonars and Acoustic Devices.
Note: Usable sonar ranges depend on the operating conditions, including the orientation of the surface(s) being reflected off, and their relative density with the surrounding water.
SonarsPressure
Rating
Range                         Signal Protocol(s)Profiling?Scanning?                  Estimates Distance?Transducer
Frequency
Weight3D Models                  Software / Libraries     Communication ProtocolDocuments
Ping360
Ping360 thumbnail
25° - 0.75 m

Resolution:
50 m
USB, Ethernet (UDP), RS485Yes0.9°

Resolution: 1.6 mm

Speed: depends on interface and selected range.
NoAir (w/ cable): 0-30°C
Water (w/ cable): 510 g
PING360-SONAR-R2-PUBLIC (.zip)
PING360-M-FRAME-MOUNT-R1-PUBLIC (.zip)
Python, C++, ArduinoPing Protocol:
common, ping360
Ping360 Firmware Files (GitHub)
Ping2 Sonar
Ping2 Sonar thumbnail
300 mBR-101684 RevB:
0.3 m - 100 m

Resolution:
0.5% of range

R3 (<May 2023):
0.5 m - 50 m
TTL Serial (UART)YesNoYes115 kHzAir (w/ cable): 187 g
Water (w/ cable): 100 g
PING_SONAR_BR-100725_RevA_PUBLIC (.zip)
PING_MOUNT_BR-100123_RevA_PUBLIC (.zip)
Arduino
ArduPilot (limited)
C++
Python
Rust
Ping Protocol:
common, ping1d
Ping2 Sonar Firmware Files (GitHub)
Original Ping Sonar Firmware Files (GitHub)
Device Recovery Process (Ping Viewer docs)
Water Linked DVL-A50 / DVL-A125
Water Linked DVL-A50 / DVL-A125 thumbnail

300 m /
600 m
Altitude:
0.05 m - 50 m /
0.05 m - 125 m

Velocity:
≤ 3.75 m/s /
≤ 9 m/s
Resolution:
0.1 mm/s
Long Term Accuracy:
±1.01 %
Ethernet
Serial UART (115200 baud, 3.3 V)
NoNoYes1 MHz /
420 kHz
Air (w/ cable): 170 g / 750 g
Water (w/ cable): 105 g / 750 g
DVL_A50_BR-101756 (.zip)
DVL_A125_BR-102656 (.zip)
BlueOS ExtensionWater Linked API and PD6 DVL A50 Datasheet
DVL A125 Datasheet
Sonoptix ECHO Multibeam Imaging Sonar
Sonoptix ECHO Multibeam Imaging Sonar thumbnail

350 mMinimum: 0.2 m

Maximum:
200 m @ 400 kHz 1
30 m @ 700 kHz

Resolution:
8 mm
EthernetYesNo (full image capture)

Horizontal View Angle: 90° @ 400 kHz
120° @ 700 kHz

Maximum Update Rate: 25 Hz:
No400 kHz (>30 m)
700 kHz (<30 m)
Air: 750 g SONOPTIX-ECHO-PUBLIC (.zip)-Video
Raw data1
Datasheet (.pdf)
User Manual (March 2023) (.pdf)

Firmware Updates


Sonoptix.com
Cerulean Omniscan 450 Side Scan Sonar
Cerulean Omniscan 450 Side Scan Sonar thumbnail

50 m (with M14 adapter)
300 m (without M14 adapter)
Maximum: 150 m

Resolution: Up to 1/1200 of range setting
EthernetYesSemi (requires moving device)

No450 kHz OMNISCAN_450_SS_BR-102105 (.zip)Programming API

Cables, Penetrators, and Connectors

Cables and Tethers

These sub-sea cables and tethers provide water-proof electrical connections for communications and power. Cables with water-blocking fillers are resistant to leaks caused by damage to their outer jacket.
Cable TypeNumber of
Conductors
Conductor GaugeDiameterCompatible WetLink PenetratorStatic Minimum Bend RadiusBuoyancy in FreshwaterWeight in AirStrengthVoltage RatingOuter JacketFillerConductor InsulationWrap
Fathom Slim ROV Tether
Fathom Slim ROV Tether thumbnail
2 (1x UTP)26 AWG4.0 mmWLP-M06-4.5MM-HC
WLP-M10-4.5MM-HC
25 mmNeutral0.012 kg/mWorking: 35 kgf

Breaking: 155 kgf
300 VDCHigh Visibility Polyurethane FoamKevlar Fiber with WaterblockPolyethylene-
Fathom ROV Tether
Fathom ROV Tether thumbnail
8 (4x UTP)26 AWG7.6 mmWLP-M10-7.5MM-HC
75 mmNeutral0.043 kg/mWorking: 35 kgf

Breaking: 155 kgf
> 500 MΩ/kftHigh Visibility Polyurethane FoamDacron Filler Fiber with Waterblock
+ Kevlar Strength Fiber with Waterblock
Polypropylene-
High-Power Tether Cable for OTPS
High-Power Tether Cable for OTPS thumbnail

10
(2x UTP,
1x UTP,
2x UTP)
23 AWG
24 AWG
26 AWG
9.8 mm75 mmNeutral0.077 kg/mWorking: 160 kgf

Breaking: 225 kgf
600 VDCHigh Visibility PolyurethanePolyurethane Foam inner jacket + Dacron Filler Fiber with Waterblock
+ Kevlar Strength Fiber with Waterblock
?-
High Power Cable
High Power Cable thumbnail
212 AWG8.3 mmWLP-M10-8.5MM-LC26 mmHigh-temperature Pressure-extruded polyurethane-FEPPTFE tape
T500 Cable
T500 Cable thumbnail
312 AWG9.0 mmWLP-M14-9.5MM-HC30 mmHigh-temperature Pressure-extruded polyurethane-FEPNonwoven fabric
T200 Cable
T200 Cable thumbnail
316 AWG6.4 mmWLP-M10-6.5MM-LC18 mmHigh-temperature Pressure-extruded polyurethane-FEPPTFE tape
[end of life]
(Old) Thruster Cable
(Old) Thruster Cable thumbnail
318 AWG6.3 mmHigh-temperature Pressure-extruded polyurethane-Chemically-Etched Teflon (FEP)Teflon tape
Ping360 Cable
Ping360 Cable thumbnail
628 AWG4.7 mmWLP-M06-4.5MM-LC
WLP-M10-4.5MM-LC
15 mmHigh-temperature Pressure-extruded polyurethane-FEPPTFE tape
Ping Cable
Ping Cable thumbnail
424 AWG4.5 mmWLP-M06-4.5MM-LC
WLP-M10-4.5MM-LC
15 mmPressure-extruded polyurethane-Polypropylene-
Lumen/Gripper Cable
Lumen/Gripper Cable thumbnail
322 AWG4.5 mmWLP-M06-4.5MM-LC
WLP-M10-4.5MM-LC
15 mmPressure-extruded polyurethane-Polypropylene-
Ethernet and Power Cable
Ethernet and Power Cable thumbnail
2 x 22 AWG
8 x 26 AWG
(2x single,
4x UTP)
22 AWG
26 AWG (UTP)
7.5 mmWLP-M10-7.5MM-LC24 mmPressure-extruded polyurethaneStringPolypropylene (22 AWG)
FEP (UTP)
2-layer non-woven wrap

Connectors

These connectors are part of our Blue Robotics Connector Standard, and form robust and reliable connections between devices, cables, and enclosures.
ComponentWiresElectrical RatingIngress ProtectionModelsDocuments
Binder 770 Plug
Binder 770 Plug thumbnail

Binder 770 Bulkhead Connector
Binder 770 Bulkhead Connector thumbnail
8 (4x twisted pairs)Voltage: 175 V

Current (per pin): 2 A
IP67 BINDER-770-PLUG-S-R1 (2.5-4 mm) (.stp)
BINDER-770-PLUG-L-R1 (6-8 mm) (.stp)
Binder 770 Plug S - 2.5-4 mm (Binder USA)
Binder 770 Plug L - 6-8 mm (Binder USA)
Binder 770 Bulkhead (Binder USA)
QS8-S Connector Set
QS8-S Connector Set thumbnail
2 (≤ 6 AWG)Voltage: 600 VDC

Max Current:
Continuous: 110 A
Peak (10s): 300 A
-

Penetrators

These sub-sea penetrators are great for long term penetrations and connections of cables to and between enclosures and devices. They are flexible, suitable for a variety of applications, and lower cost and easier to install than equivalent connectors.
ComponentMaximum
Depth
SupportsModels                                                                      Documents
WetLink Penetrator
WetLink Penetrator thumbnail
¹950 m3.7mm–9.8mm electrical cables WLP-M06-4.5MM-R1 (.zip)
WLP-M10-4.5MM-R1 (.zip)
WLP-M10-5.5MM-R1 (.zip)
WLP-M10-6.5MM-R1 (.zip)
WLP-M10-7.5MM-R1 (.zip)
WLP-M10-8.5MM-R1 (.zip)
WLP-M14-9.5MM-R1 (.zip)
WL-M06-NUT-R1 (.zip)
WL-M10-NUT-R1 (.zip)
WL-M14-NUT-R1 (.zip)
WLP Technical Datasheet (.pdf)
WetLink Penetrator Blank (No Hole)
WetLink Penetrator Blank (No Hole) thumbnail
²950 mM6 / M10 / M14 holes WL-M06-BLANK-PUBLIC (.zip)
WL-M06-NUT-R1 (.zip)
WL-M10-BLANK-PUBLIC (.zip)
WL-M10-NUT-R1 (.zip)
WL-M14-BLANK-R1 (.zip)
WL-M14-NUT-R1 (.zip)
Pressure Relief Valve
Pressure Relief Valve thumbnail
²1000 m- automatic pressure venting at 0.8 ± 0.2 bar
- manual pressure venting
- vacuum testing
- backfilling (with adapter)
PRV-M10-ASM-R1 (.zip)
PRV-M10-BACKFILL-ADAPTER-R1 (.zip)
M10 Enclosure Vent and Plug
M10 Enclosure Vent and Plug thumbnail
²1000 m- manual pressure venting
- vacuum testing
VENT-M10-R1 (.zip)
VENT-M10-PLUG-R1 (.zip)
Switch
Switch thumbnail
²950 m- 120 VAC / 26 VDC
- 5A
SWITCH-M10-5A-R1 (.zip) 30-3UL Datasheet
Potted Cable Penetrator
Potted Cable Penetrator thumbnail
¹variable
(~100 m+)
4mm-8mm electrical cables PENETRATOR-M-BOLT-4MM-6-8-R3 (.zip)
PENETRATOR-M-BOLT-5MM-3ID-10-25-R1 (.zip)
PENETRATOR-M-BOLT-5MM-10-25-R2 (.zip)
PENETRATOR-M-BOLT-6MM-10-25-R2 (.zip)
PENETRATOR-M-BOLT-8MM-10-25-R1 (.zip)
PENETRATOR-M-NUT-10-16-R1 (.zip)
PENETRATOR-M-NUT-10-8-R2 (.zip)
[End of Life]
Penetrator Blank (No Hole)
Penetrator Blank (No Hole) thumbnail
²950 mM6 / M10 holes PENETRATOR-M-BLANK-6-8-R3 (.zip)
PENETRATOR-M-BLANK-10-25-R3 (.zip)
PENETRATOR-M-NUT-10-8-R2 (.zip)
¹ Penetrator tested depths are for reference only, performance may vary depending on application and cable construction, it is the responsibility of the customer to determine suitability for their application.
² Rated depth in sea water

Tether Management

This equipment helps to reduce tether strain and tangling.
ComponentWeightMain Materials3D Models / Documents
Fathom Spool
Fathom Spool thumbnail
Standard: 2.22 kg
Large: 2.89 kg
- Black HDPE (frame)
- Blue+black anodized aluminum (frame + crank)
- Nylon (brakescrews + cable clamps)
TMS-ASM-KIT-M-R2 (Standard Size) (.zip)
TMS-ASM-KIT-L-R2 (Large Size) (.zip)
TMS-SPOOL-CONNECTOR-GUARD-R1 (.zip)
Connector Guard
Connector Guard thumbnail
38 gBlue anodized 6061 aluminum TMS-SPOOL-CONNECTOR-GUARD-R1 (.zip)
Tether Cable Thimble
Tether Cable Thimble thumbnail
Black Nylon
Slip Ring
Slip Ring thumbnail
- Black plastic (housing)
- UL Teflon @ AWG30 (wires)
- Gold (contacts - 2A per circuit)
SLIP-RING-SNM012A-08-DATASHEET (.pdf)

O-Rings, Screws, Tools, and Consumables

O-Rings and Seals

These o-rings, x-rings, and seals help to prevent water ingress through enclosure openings.
SealSizeProductsMaterial
WetLink Penetrator Spare Seals
WetLink Penetrator Spare Seals thumbnail
Varied- WetLink PenetratorsFluoro-Elastomer
(FKM) Rubber
O-Ring M10 Vent Plug2 x 6 mm- [end of life] M10 Vent PlugNitrile Rubber
(Buna-N 70A)
O-Ring WetLink M061.5 x 7 mm- M06 WetLink Penetrator
- M06 WLP Blank
Nitrile Rubber
(Buna-N 70A)
O-Ring Potted M6AS568-010- M6 Potted Penetrator
- M6 Blank
Nitrile Rubber
(Buna-N 70A)
O-Ring M10 WetLink Plugs1.5 x 11.5 mm- M10 Vent Plug
- Switch (Plug)
- Vacuum Plug
- Pressure Relief Valve (Plug)
Nitrile Rubber
(Buna-N 70A)
O-Ring M10 Backfill Adapter1 x 13.5 mm- Backfill AdapterNitrile Rubber
(Buna-N 70A)
O-Ring WetLink M10 BulkheadAS568-013- M10 WetLink Penetrator
- M10 WLP Blank
- M10 Vent (Bulkhead)
- Switch (Bulkhead)
- Pressure Relief Valve (Bulkhead)
- M10 Potted Penetrator
- M10 Blank
- Bar 02
- Bar 30
- Bar 100
- Celsius
- Subsea LED Indicator
Nitrile Rubber
(Buna-N 70A)
O-Ring WetLink M141.5 x 15 mm- M14 WetLink Penetrator
- M14 WLP Blank
Nitrile Rubber
(Buna-N 70A)
O-Ring Lumen FaceAS568-019- Lumen (Face)Nitrile Rubber
(Buna-N 70A)
X-Ring Ping SonarAS568-127- [R1-R3] Ping SonarNitrile Rubber
(Buna-N 70A)
O-Ring Gripper/LumenAS568-021- Newton Gripper (Flange Cap)
- Lumen (Radial)
Nitrile Rubber
(Buna-N 70A)
X-Ring Gripper JawAS568-204- Newton Gripper (Jaw Side)Nitrile Rubber
(Buna-N 70A)
O-Ring 2" Locking FlangeAS568-030- 2" Locking Enclosure Flange (Face & Radial)
- Ping2 Sonar
- [retired] (non-locking) 2" Enclosure Flange (Face)
Nitrile Rubber
(Buna-N 70A)
O-Ring WetLink Cable Splice Kit
(Tiny Box)
1.5 x 44 mm- WetLink Cable Splice KitNitrile Rubber
(Buna-N 70A)
O-Ring 2" Flange RadialAS568-133- [retired] (non-locking) 2" Enclosure Flange (Radial)Nitrile Rubber
(Buna-N 70A)
O-Ring Ping360AS568-142- Ping360Nitrile Rubber
(Buna-N 70A)
O-Ring 3" Flange FaceAS568-148- 3" Locking Enclosure Flange (Face)
- [end of life] (non-locking) 3" Enclosure Flange (Face)
Nitrile Rubber
(Buna-N 70A)
O-Ring 3" Locking Flange RadialAS568-150- 3" Locking Enclosure Flange (Radial)Nitrile Rubber
(Buna-N 70A)
O-Ring 3" Flange RadialAS568-230- [end of life] (non-locking) 3" Enclosure Flange (Radial)Nitrile Rubber
(Buna-N 70A)
O-Ring 4" Locking FlangeAS568-154- 4" Locking Enclosure Flange (Face & Radial)
- [retired] (non-locking) 4" Enclosure Flange (Face)
Nitrile Rubber
(Buna-N 70A)
O-Ring 4" Flange RadialAS568-238- [retired] (non-locking) 4" Enclosure Flange (Radial)Nitrile Rubber
(Buna-N 70A)
O-Ring 5" Flange FaceAS568-157- 5" Locking Enclosure Flange (Face)Nitrile Rubber
(Buna-N 70A)
O-Ring 5" Flange RadialAS568-248- 5" Locking Enclosure Flange (Radial)Nitrile Rubber
(Buna-N 70A)
O-Ring 6" Flange FaceAS568-162- 6" Locking Enclosure Flange (Face)
- (non-locking) 6" Enclosure Flange (Face)
Nitrile Rubber
(Buna-N 70A)
O-Ring 6" Flange RadialAS568-432- (non-locking) 6" Enclosure Flange (Radial)Nitrile Rubber
(Buna-N 70A)
O-Ring 1L Watertight BoxAS568-253- 1L Watertight BoxNitrile Rubber
(Buna-N 70A)
O-Ring 6" Locking Flange RadialAS568-255- 6" Locking Enclosure Flange (Radial)Nitrile Rubber
(Buna-N 70A)
O-Ring 8" Flange FaceAS568-170- 8" Locking Enclosure Flange (Face)
- (non-locking) 8" Enclosure Flange (Face)
Nitrile Rubber
(Buna-N 70A)
O-Ring 8" Flange RadialAS568-442- 8" Enclosure Flange (Radial)Nitrile Rubber
(Buna-N 70A)
O-Ring 8" Locking Flange RadialAS568-265- 8" Locking Enclosure Flange (Radial)Nitrile Rubber
(Buna-N 70A)
O-Ring 5L Watertight BoxAS568-277- 5L Watertight BoxNitrile Rubber
(Buna-N 70A)
BlueBoat Hatch O-Ring
BlueBoat Hatch O-Ring thumbnail
6.35 x 325 mm- BlueBoat Port Hatch
Lid Assembly

- BlueBoat Starboard Hatch
Lid Assembly

- BlueBoat Hatch Base
Neoprene 30A

Screws

To find replacement screws for Blue Robotics products, please refer to this guide.

Tools

These tools are useful for assembly, maintenance, and repairs.
ToolPurposeMaterialWeight3D Models
WetLink Cable Splice Kit
WetLink Cable Splice Kit thumbnail
Connect two cables in minutes
without potting or sealant, or an
M10 sensor with a small PCB.

Depth rated to 500 m.
Glass-filled polycarbonate64 g WetLink-Cable-Splice-Kit-BR-101170 (.zip)
Cable Jacket Stripper
Cable Jacket Stripper thumbnail
Cutting and stripping 4.5 mm–29 mm
cable jackets.
WetLink Penetrator Assembly Block
WetLink Penetrator Assembly Block thumbnail
Holds WLP bulkhead during assembly.

Fits M06, M10, and M14 bulkheads.
6061-T6 Aluminum WLP-ASSEMBLY-BLOCK-R1 (.zip)
WetLink Bulkhead Wrench
WetLink Bulkhead Wrench thumbnail
Tightening cable penetrators and
bulkheads close together.

M06 / M10 / M14 sizes.
Chrome-plated steel hardened to HRC 32-36 WL-M06-BULKHEAD-WRENCH-R1 (.zip)
WL-M10-BULKHEAD-WRENCH-R1 (.zip)
WL-M14-BULKHEAD-WRENCH-R1 (.zip)
WetLink Penetrator Plug Wrench
WetLink Penetrator Plug Wrench thumbnail
Tightening or removing WLP Plugs.

Sizes for WLP Plugs.
Chrome-plated steel hardened to HRC 32-36
[End of Life]
Bulkhead Wrench (R1 Style)
Bulkhead Wrench (R1 Style) thumbnail
Tightening cable penetrators and
bulkheads close together.

M10 only.
Chrome-plated steel
Backfill Adapter
Backfill Adapter thumbnail
Filling enclosures with inert gas,
or sealing an enclosure while
maintaining vacuum.

Requires Pressure Relief Valve.
7075-T6 Anodized Aluminum4.5 g PRV-M10-BACKFILL-ADAPTER-R1 (.zip)
Vacuum Plug
Vacuum Plug thumbnail
Pulling an enclosure to vacuum.

Requires M10 Vent or Backfill Adapter.
7075-T6 Anodized Aluminum8 g VENT-M10-VACUUM-PLUG-R1 (.zip)
Vacuum Pump
Vacuum Pump thumbnail
Testing enclosure seals without
getting wet.
PVC
Enclosure Pry Tool
Enclosure Pry Tool thumbnail
Opening watertight enclosures.Glass-filled nylon
O-Ring Pick
O-Ring Pick thumbnail
Removing o-rings without damage.Nylon
Hex Key Set
Hex Key Set thumbnail
Tightening or removing hex screws.

1.5mm, 2mm, 2.5mm, and 3mm.
Blue-coated Steel
[End of Life]
Potting Cartridge Dispenser
Potting Cartridge Dispenser thumbnail
Simplifies dispensing 2-part cartridges
with a mixing nozzle.

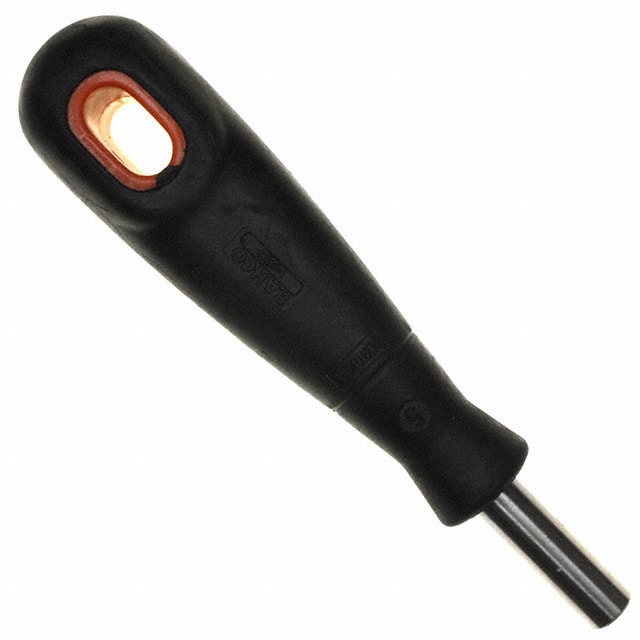

IDC Hand Tool
IDC Hand Tool thumbnail
Inserting wires into an insulation
displacement connector (used in the
Lumen Light and Newton Gripper).

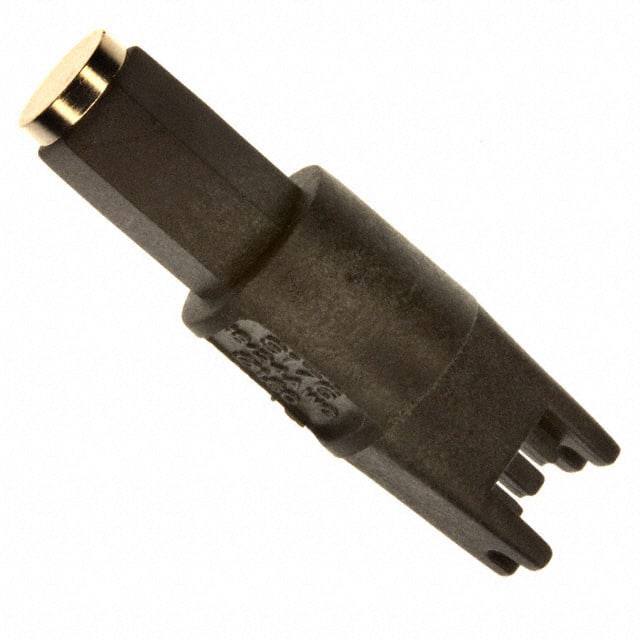

IDC Tool Bit
IDC Tool Bit thumbnail
Inserting wires into an insulation
displacement connector (used in the
Lumen Light and Newton Gripper).

Consumables

These consumables help to create and maintain watertight seals of enclosures, cables, and penetrators.
ProductPurposeMaterialDocuments
Desiccant Bags
Desiccant Bags thumbnail
Indicating and absorbing moisture in
an enclosure.
Silica gel beads
+ cobalt chloride indicator
Molykote 111
Molykote 111 thumbnail
Lubricating o-rings and other seals.Silicone grease Molykote 111 Compound Technical Data Sheet (.pdf)
Molykote 111 Compound MSDS (.pdf)
[Retired]

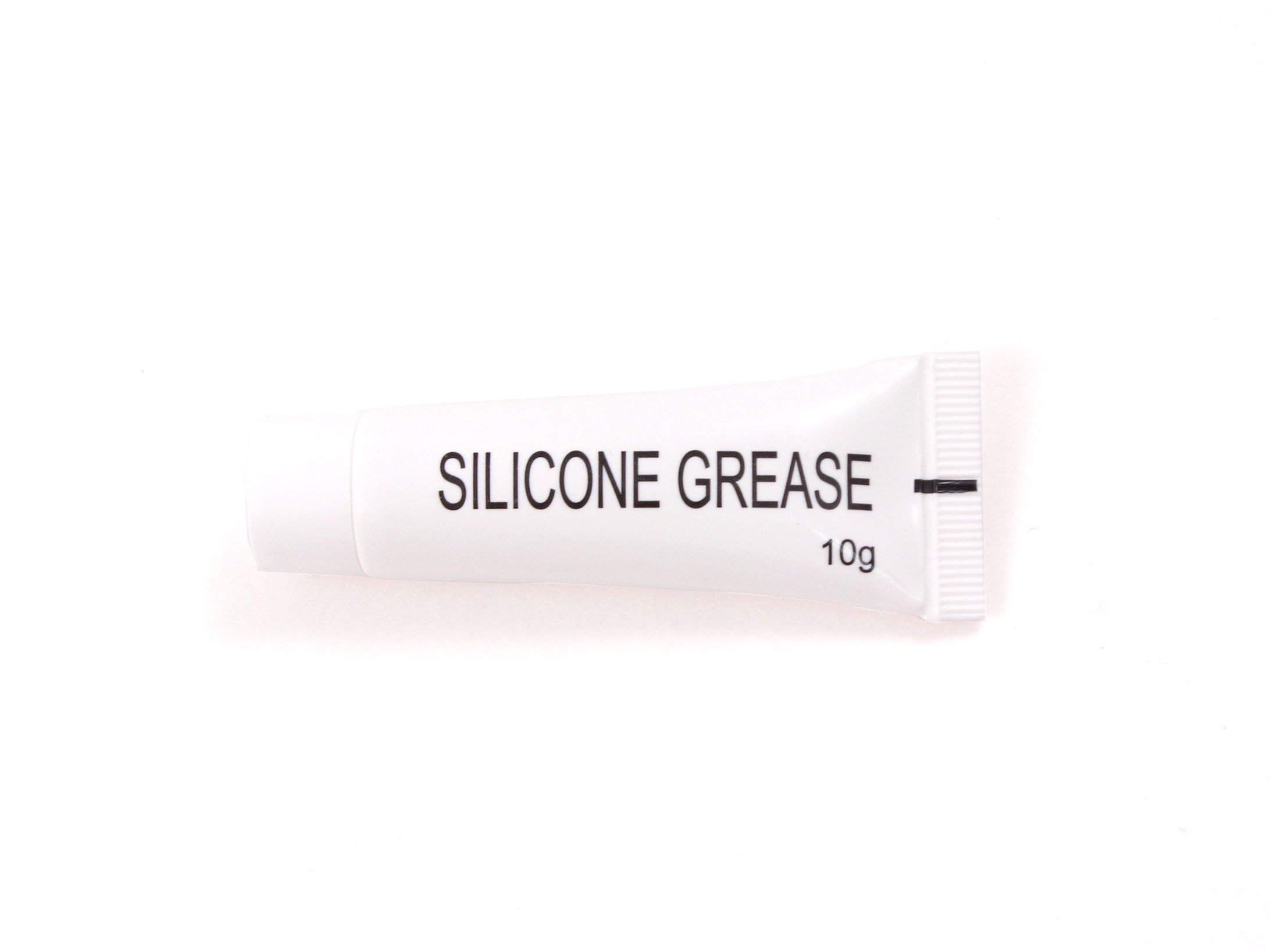

Silicone Grease
Silicone Grease thumbnail
Lubricating o-rings and other seals.Silicone grease 202003-silicone-grease-MSDS (.pdf)
Loctite Marine Epoxy (USA ONLY)
Loctite Marine Epoxy (USA ONLY) thumbnail
Waterproof potting and sealing.Epoxy resin
+ hardener
[Retired]

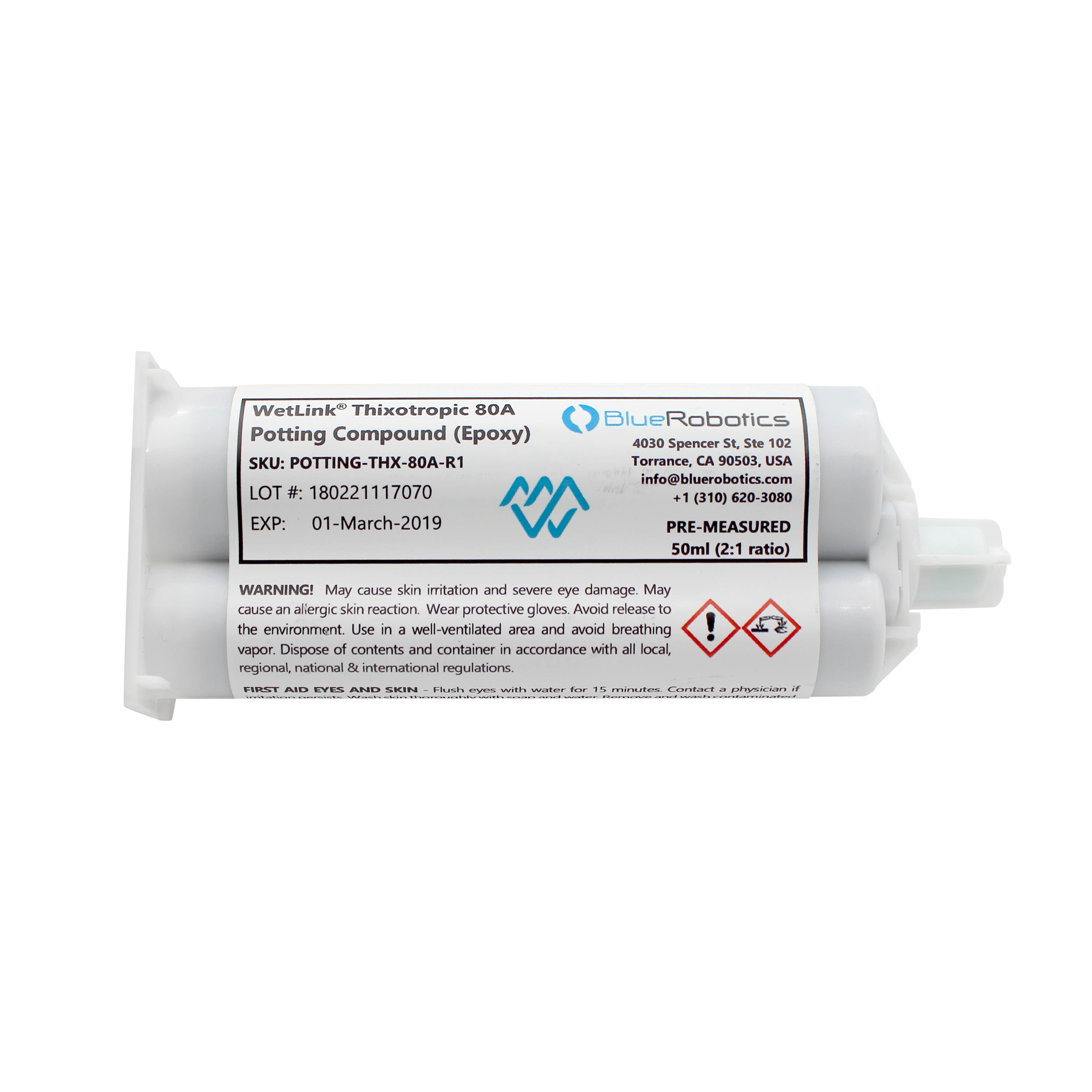

Thixotropic Potting Compound
Thixotropic Potting Compound thumbnail
Waterproof potting.Reltek B-45TH BlueRobotics-WL-Epoxy-PartA-MSDS (.pdf)
BlueRobotics-WL-Epoxy-PartB-MSDS (.pdf)
Potting Kit (x 10)
Potting Kit (x 10) thumbnail
Simplifies mixing and applying epoxySyringes
+ mixing cups
+ mixing tips
[Retired]
Mixing Tips (10 pcs)
Mixing Tips (10 pcs) thumbnail
Applying potting compound.
[End of Life]
Cable Preparation Wipes
Cable Preparation Wipes thumbnail
Cleaning and preparing cable jackets and
parts for potting and other adhesives.
Acetone-soaked fabric
Moldable Sealant
Moldable Sealant thumbnail
Field repairing cables and connections.Cured rubber coax-seal-msds (.pdf)
Silicone Self-bonding Tape
Silicone Self-bonding Tape thumbnail
Air and moisture sealing of irregular
shapes.
Silicone Datasheet (X-treme Tape)
Underwater Robotics: Science, Design & Fabrication
Underwater Robotics: Science, Design & Fabrication thumbnail

Learning about the marine environment
and marine robotics design and fabrication.
Paper

Communication, Control, and Power

Power Supplies, Batteries, and Chargers

These power supplies, batteries, and chargers help keep a vehicle powered and ready to use.
ComponentPurposeBattery CellsOutput CapacityCharging / Input PowerBattery Chemistry     Weight3D ModelsDocuments
Black Rectangular Battery
Black Rectangular Battery thumbnail
Powering vehicle.4S1PNominal Voltage: 14.8V

Nominal Capacity: 10Ah

Max Current:
Continuous: 90A (9C)
Burst (10s): 120A (12C)
Max Current: 15A

Recommended Current: 10A
Lithium Polymer750 g BATTERY-LP-4S-10AH-R1 (.zip) Battery MSDS (.pdf)
UN38.3 Test Report (.pdf)
Certificate of Conformity (.pdf)
White Cylindrical Battery
White Cylindrical Battery thumbnail
Powering vehicle.4S6PNominal Voltage: 14.8 V

Nominal Capacity: 15.6 Ah

Max Current:
Continuous: 60 A (3.8C)
Burst (10s): 132 A (8.5C)
Max Current: 20 A

Recommended Current: 10 A
Lithium-ion1163 gSame CAD model as original 18Ah version:
BATTERY-LI-4S-18AH-R1 (.zip)
Battery MSDS (.pdf)
UN38.3 Test Report (.pdf)
INR18650-P26A MSDS (.pdf)
INR18650-P26A Data Sheet (.pdf)
Black Cylindrical Battery
Black Cylindrical Battery thumbnail
Powering vehicle.4S6PNominal Voltage: 14.8V

Nominal Capacity: 18.0Ah

Max Current:
Continuous: 60A (3.3C)
Burst (10s): 132A (7.3C)
Max Current: 20ALithium-ion1152 g BATTERY-LI-4S-18AH-R1 (.zip) Battery MSDS (.pdf)
UN38.3 Test Report (.pdf)
INR18650-30Q Data Sheet (.pdf)
Mega Battery
Mega Battery thumbnail
Powering vehicle.28.0 AhNominal Voltage: 22.2 V

Nominal Capacity: 25.5 V

Max Current:
Continuous: 6S7P (#colspan#)
Burst (10s): 110 A (3.9 C)
Max Current: 240 A

Recommended Current: 32 A
Lithium-ion85 mm BATTERY-LI-6S-28AH-ADAPTED-R1 (.zip) Battery MSDS (.pdf)
UN38.3 Test Report (.pdf)
CE Certificate of Compliance (.pdf)
Outland Technology Power Supply
Outland Technology Power Supply thumbnail

Powering vehicle
from topside.
-Nominal Voltage: 15VDC

Max Power: 1000W (66.8A)
Input Voltage: 100-240VAC 50/60Hz

Max Usage: 1800W
- Limited Warranty (.pdf)
5V Regulator
5V Regulator thumbnail
Powering 5V
electronics in
vehicle.
-Nominal Voltage: 5 V

Max Power: 30 W (6 A)
7 - 26 V /
2S-6S Li-po/Li-ion Battery
-
[Retired]

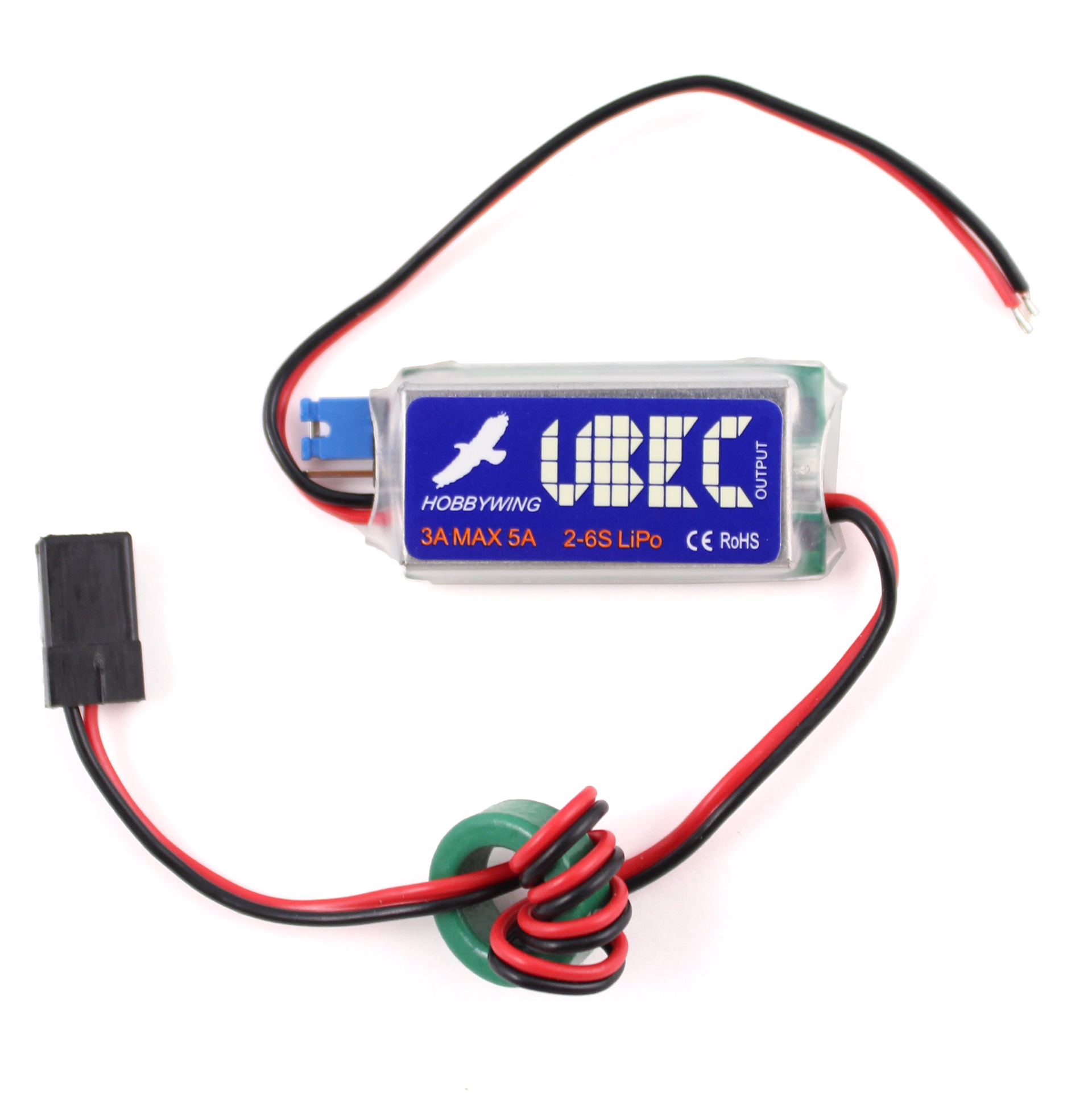

5V Regulator
5V Regulator thumbnail
Powering 5V
electronics in
vehicle.
-Nominal Voltage: 5 V

Max Power: 15 W (3 A)
2-6S-
BlueBoat Fuse Spares
BlueBoat Fuse Spares thumbnail
Protecting batteries
by limiting maximum
current.
-50 A MIDI--
Power Sense Module
Power Sense Module thumbnail
Measuring current
usage and supply
voltage.
--Measures up to
25.2 V (6S)
100 A (non-continuous)
- PSM-ELEC-PCB-R2 (.pdf)
Battery Cell Checker
Battery Cell Checker thumbnail
Checking battery
cell voltages.
2-7s (lithium)--Lithium Ion
LiPo
LiFE
NiMH
NiCd
42 g
H6 Pro Charger
H6 Pro Charger thumbnail
Charging batteries.Lithium: 4S, 6S
(Lithium: 1-6S
NiZn/NiCd/NiMH: 1-14S
Pb: 2-24V)
Charge Power: 168 W (10 A)*
(0.1-26 A)

Discharge Power: Internal Discharge 30W, Balance Port 10W, (700 W External) (0.1-5 A)
100–240V AC /
6.5–30V DC
LiPo
LiIo
(LiFe
LiHV
NiZn
NiCd
NiMH
Pb)
410 g H6-PRO-Quick-Start-English-Spanish (.pdf)
HOTA H6 PRO Full Manual (for advanced users with unlocked firmware ONLY, English) (.pdf)
Certificate of Conformity (.pdf)
[Retired]
Battery Charger
Battery Charger thumbnail
Charging batteries.Lithium: 1-6S
NiCd/NiMH: 1-17S
Lead-acid: 2-24V
Charge Power: 300W (0.05-20A)

Discharge Power: 20W Internal, 300W External (0.05-20A)
100-240V AC /
10-28V DC
LiPo
LiIo
LiFe
LiHV
NiCd
NiMH
Pb
1075 g 300W 20A Balance Charger Manual from Turnigy (.pdf)

Interface Electronics

These interface boards and adapters help ensure communications are possible between a range of sensors and devices.
ComponentUsed ForFromTo3D ModelsDocuments
BlueBoat BaseStation
BlueBoat BaseStation thumbnail
Wifi radio access point for
connecting to one or more
BlueBoats.
wifi / USB-Clong range wifi BASESTATION_BR-101669 (.zip)
Wireless Router
Wireless Router thumbnail
2.4 GHz wifi router for
BlueBoat and BaseStation.
2.4 GHz wifiN-type antenna connector
BlueBoat Antenna
BlueBoat Antenna thumbnail
Omnidirectional antenna for
a 2.4 GHz wifi router.
N-type connectoromnidirectional long range wifi
Fathom-X Tether Interface Board
Fathom-X Tether Interface Board thumbnail
Extending ethernet
communications over two
wires (e.g. for a tether).
Ethernet (RJ45)HomePlug AV (two wires) FATHOM-X-ASM-R1 (.zip) Fathom-X-Schematic (.pdf)
Fathom-X Design Files
LX200V20-Datasheet-v1.2 (.pdf)
LX200V20 (RAKwireless)
[Retired]
Fathom-S
Fathom-S thumbnail
Analog video.
Long distance RS-422
serial communication.
Arduino Programming.
NTSC/PAL analog video
RS-422 serial
NTSC/PAL analog video
RS-422 serial
FATHOM-S-ASM-TOPSIDE-R1 (.zip)
FATHOM-S-ASM-ROV-BOARD-R1 (.zip)
Fathom-S-Schematic-1 (.pdf)
Fathom-S Design Files
Ethernet Switch
Ethernet Switch thumbnail
Connecting up to 5 ethernet
devices to a local network.
Ethernet (RJ45)Ethernet (RJ45 / 4-pin JST-GH) ETHSWITCH-R1 (.zip)
RJ45 to JST GH Adapter
RJ45 to JST GH Adapter thumbnail
Converting ethernet cable
connectors.
Ethernet (RJ45)Ethernet (4-pin JST-GH)
BLUART Adapter
BLUART Adapter thumbnail
Interfacing a serial signal
with a USB port.
- TTL Serial (6-pin JST-GH / through holes)
- RS485 (4-pin JST-GH / through holes)
USB (micro-USB) BLUART-R1-Schematic (.pdf)
I2C Level Converter
I<sup>2</sup>C Level Converter thumbnail
Interfacing I2C devices with
different voltages.
5V I2C (4-pin header)3.3V I2C (4-pin JST-GH / DF13 / pin header) LEVEL-CONVERTER-ASM-R1 (.zip) I2C-Level-Converter-Schematic (.pdf)
Level Converter Design Files
I2C Bus Splitter
I<sup>2</sup>C Bus Splitter thumbnail
Connecting up to 9 I2C
devices to a shared bus.
I2C (4-pin JST-GH / DF13)I2C (4-pin JST-GH / DF13 / through holes)
JST GH to DF13 Adapter, 4-pin
JST GH to DF13 Adapter, 4-pin thumbnail
Converting a 4 wire cable
connector (e.g. for I2C).
4-pin JST-GH4-pin DF13
Terminal Blocks and Hardware
Terminal Blocks and Hardware thumbnail
Power / ground bus (1) and
thruster connections (2)
on electronics tray.
1. ESC output (wire / ferrule)
2. Power wire (spade terminal)
1. Thruster wire
2. Power wire (spade terminal)
Barrier Block Datasheet (Molex)
Eurostyle Terminal Strip Datasheet (Molex)
16 GB BlueOS MicroSD Card
16 GB BlueOS MicroSD Card thumbnail
Convenient setup of a
BlueOS-based vehicle.
Data storage,
configured with
- ArduSub (for BlueROV2) /
- ArduRover (for BlueBoat)
Raspberry Pi 3B/3B+/4B
(with Navigator flight controller board

Flight Controller Boards

The autopilot board/flight controller board processes the pilot input and sensor data, and controls the motors, lights, servos, and relays on the vehicle.
Flight ControllerElectricalArduPilot Firmwares          Onboard SensorsInterfaces                                        Physical                    3D ModelsDocuments
Thruster Commander
Thruster Commander thumbnail
Supply Voltage:
7 - 20 V
N/AN/A2x analog inputs for speed/direction or left/right control
4x PWM outputs (2 paired channels)
CMDR-ASM-POTENTIOMETER-R1 (.zip)
CMDR-ASM-THRUSTER-COMMANDER-R1 (.zip)
Navigator
Navigator thumbnail
Supply Voltage:
5–5.35 V (Main input)
5–5.35 V (Power module connector)
5–5.35 V (Aux input)

Consumption:
5 mA (Idle)
150 mA (Typical)
200 mA (Max)
Sub >= 4.1.0
Rover >= 4.2.3
Copter >= 4.2.3
Plane >= 4.2.3
Accel / Gyro:  ICM-20602 (6-axis)
Magnetometer:  MMC5983
Compass:  AK09915
Barometer:  BMP280
ADC:  ADS1115

Software Libraries:
Navigator Python / C++
Navigator Rust
JST-GH connectors
3 x Serial UART (no flow control)
2 x I2C
1 x UART + I2C
1 x ADC (3.3 V)
1 x ADC (6.6 V)
1 x RC receiver
1 x Power module connector
16 Channel PWM out
2 x SOS leak probe connectors
1 x Auxiliary SOS board connector
1 x PWM out (fan)
1 x RGB LED header
3 x User definable LEDs
Weight: 26 g

Dimensions:
65 x 56 mm
NAVIGATOR-PCB-R1 (.zip)
NAVIGATOR-STACK (.zip)
NAVIGATOR-PCB-SCHEMATIC (.pdf)

All sensor and IC datasheets are linked in technical details.

[End of Life]
Pixhawk
Pixhawk thumbnail
Supply Voltage:
4.8 - 5.4 V
AnyGyro:  L3GD20H (16 bit)
Accel / Mag:  LSM303D (14 bit)
Accel / Gyro:  MPU 6000 (3-axis)
Barometer:  MS5611
DF13 connectors
1x I2C
1x CAN (2x optional)
2x ADC (3.3 V)
1x ADC (6.6 V)
4x UART (2x with flow control)
1x Console
8x PWM with manual override
6x PWM / GPIO / PWM input
1x S.BUS / PPM / Spektrum input
1x S.BUS output
Weight: 38 g

Dimensions:
50x81.5x15.5 mm
Pixhawk 1 Flight Controller Specifications (Dronecode)
Schematic and Layout (.pdf)

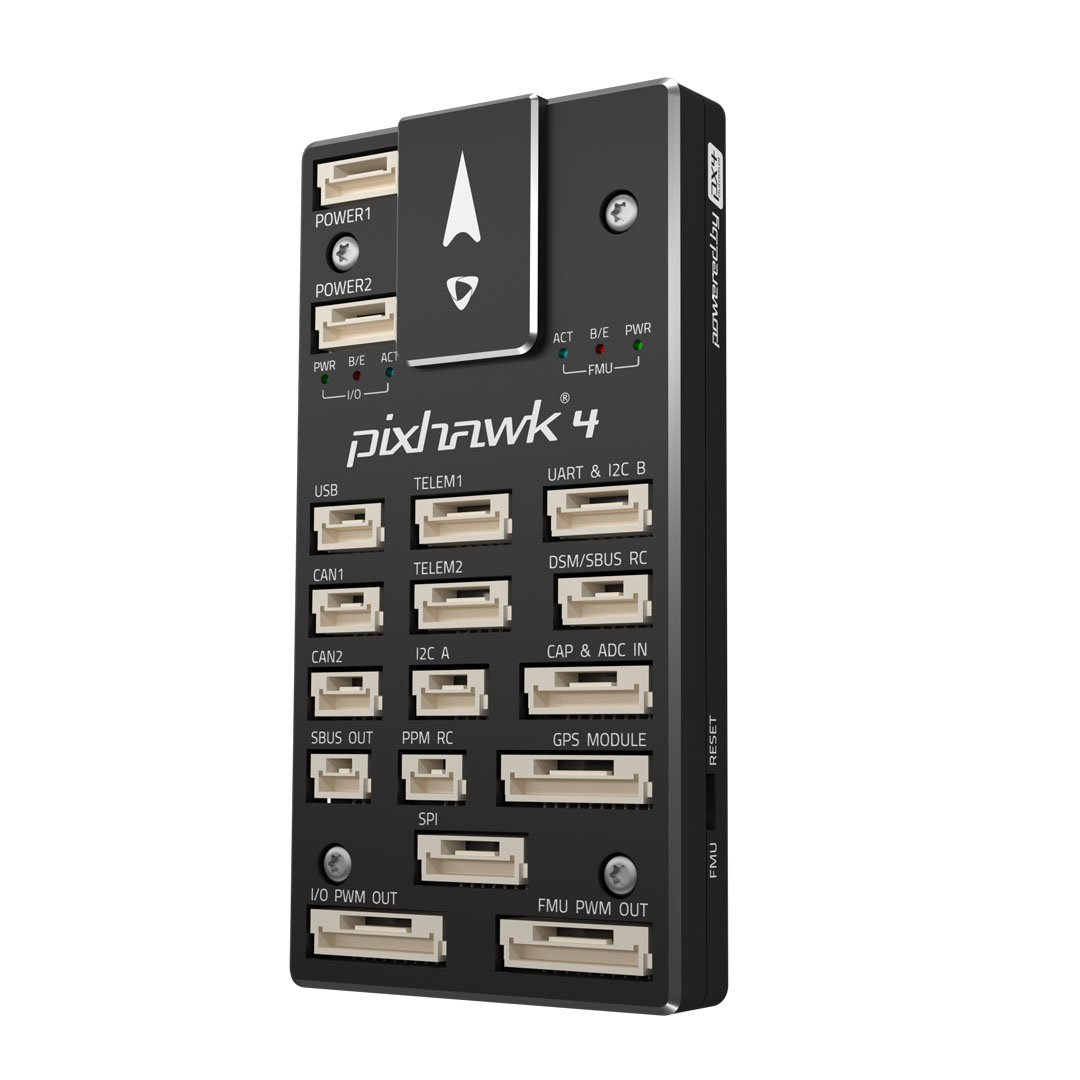

Pixhawk 4
Pixhawk 4 thumbnail
Supply Voltage:
4.1 - 5.7 V
Sub >= 4.1.0
Rover >= 3.4.2
Copter >= 3.6.1
Plane >= 3.9.3
Accel / Gyro:  ICM-20689
Accel / Gyro:  BMI055 or ICM20602
Magnetometer:  IST8310
Barometer: MS5611
JST-GH connectors
8-16x PWM outputs
3x PWM/Capture inputs
1x R/C input for CPPM
1x R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
1x S.Bus servo output
5x UART
3x I2C
4x SPI
2x CAN
2x inputs for battery voltage / current
Weight: 15.8 g

Dimensions:
44x84x12 mm
Pixhawk 4 Flight Controller Specifications (Dronecode)

Onboard Computers

An onboard computer can simplify and enable communications between the surface computer, the vehicle's flight controller board, and any sensors (e.g. cameras, sonars, etc), indicators, or actuators that may be challenging or undesirable to connect via a flight controller.

It can be a companion to an independent flight controller board (e.g. Pixhawk) or the base for a dependent board (e.g. Navigator).
ComputerElectricalMain FeaturesDocuments
Raspberry Pi 4 2GB
Raspberry Pi 4 2GB thumbnail
Supply Voltage: 5 V
Operating Voltage: 3.3 V

Max Current: 3 A
- Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
- Gigabit Ethernet
- 2 USB 3.0 ports; 2 USB 2.0 ports
- 2GB RAM (1/4/8GB models available)
- 2-lane MIPI CSI camera port
- 40 GPIO pins
- H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
- Micro-SD card slot for loading operating system and data storage
- Operating temperature: 0 – 50 degrees C ambient
Specifications
Schematics and Drawings
[Retired]

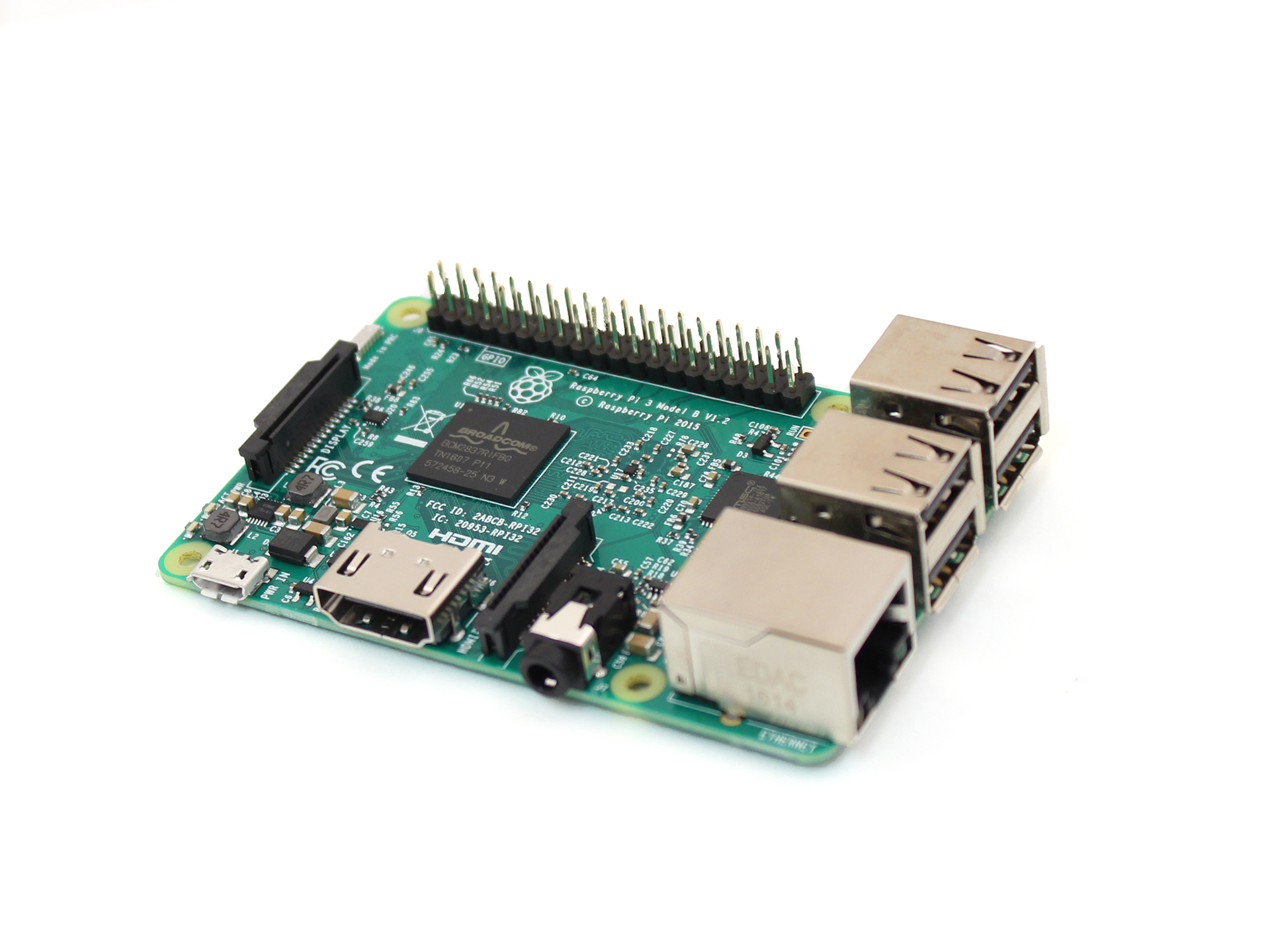

Raspberry Pi 3B
Raspberry Pi 3B thumbnail
Supply Voltage: 5 V
Operating Voltage: 3.3 V

Max Current: 2.5 A
- Quad Core 1.2GHz Broadcom BCM2837 64bit CPU
- BCM43438 wireless LAN and Bluetooth Low Energy (BLE) on board
- 100 Base Ethernet
- 4 USB 2 ports
- 1GB RAM
- CSI camera port for connecting a Raspberry Pi camera
- 40-pin extended GPIO
- Micro SD port for loading your operating system and storing data
Schematics and Drawings

Software and Firmware

Software Applications

We develop or contribute to these softwares. They can be used to operate/configure our equipment/products.
ApplicationRecommended
Version(s)
InstallationRuns OnMajor FunctionalitiesCode RepositoryDocumentation Links
BlueOS
BlueOS thumbnail

[Replaces Companion Software]
Latest Stable
Latest Beta
BlueOS 1.2 InstallationOnboard Computer
(Raspberry Pi 3B, Raspberry Pi 4B,
+more to come)
- relays communication between the autopilot board and control software
- allows USB connection forwarding, including Ping devices and multiple video streams
- provides a web interface for configuration and monitoring system performance and service statuses
- allows users to make custom device/sensor integrations
bluerobotics/ BlueOS- Official BlueOS Docs
Cockpit
Cockpit thumbnail

[Replaces QGroundControl]
Beta ReleaseCockpit InstallationSurface Computer

(can be served by Onboard Computer)
- connects to the vehicle
- allows controlling via a joystick
- displays vehicle telemetry and video stream(s), and allows recording
bluerobotics/ Cockpit- Official Cockpit Docs
QGroundControl
QGroundControl thumbnail
Current v4.2.8
Previous v4.1.7
BlueROV2 Software SetupSurface Computer - connects to the vehicle
- allows controlling via a joystick
- displays vehicle telemetry and a video stream, and allows recording
- allows setting autopilot parameters
mavlink/ QGroundControl- ArduSub-specific QGC Docs
- Official QGC Docs
Ping Viewer
Ping Viewer thumbnail
Latest StablePing Viewer Quick StartSurface Computer- can display Ping Altimeter and Echosounder (Ping1D) and Ping360 Scanning Imaging Sonar outputs
- allows configuring device/scanning settings
- allows updating Ping1D firmware
- allows replaying previous scans
bluerobotics/ ping-viewer- Official Ping Viewer Docs
[End of Life]
Companion Software
Latest VersionArduSub Installing CompanionCompanion Computer
(Raspberry Pi 3B)
- relays communication between the autopilot board and control software
- allows USB connection forwarding, including Ping devices and a video stream
- provides a web interface for configuration and monitoring system performance and service statuses
- allows users to make custom device/sensor integrations
bluerobotics/ companion- ArduSub Required Software
- ArduSub Companion Web Interface

Device Firmwares

These device firmwares power our devices.
FirmwareRecommended Version(s)InstallationRuns OnMajor FunctionalitiesCode RepositoryDocumentation Links
ArduSub
ArduSub thumbnail
Stable 4.1.2
Beta 4.5.0-beta.1
Development 4.5.0-dev
ArduSub FirmwareFlight Controller Board
(e.g. on BlueROV2)
- allows high level control of a thruster-controlled underwater vehicle
- supports manual and stabilised flight modes
- supports autonomous missions (with a suitable positioning sensor/estimate)
- supports a variety of I2C and serial based sensors (for depth, temperature, GPS, etc)
- supports servo-style PWM outputs (for lights, grippers, etc)
- supports relay style (on/off) outputs
- supports power/battery monitoring
- supports leak detection via digital input
ArduPilot/ ardupilot- ArduSub >= 4.1 (WIP)
- ArduSub.com <= 4.0
- ArduPilot Documentation
ArduBoat (Rover)
ArduBoat (Rover) thumbnail
Stable 4.5.4
Development 4.6.0-dev
Flight Controller Board
(e.g. on BlueBoat)
- allows high level control of a boat
- supports manual and stabilised flight modes
- supports autonomous missions
- supports a variety of I2C and serial based sensors (for depth, temperature, GPS, etc)
- supports servo-style PWM outputs (for lights, grippers, etc)
- supports relay style (on/off) outputs
- supports power/battery monitoring
ArduPilot/ ardupilot- General ArduRover docs
- Boat-specific docs
BLHeli_SLatest 16.7
Factory 16.6
Basic ESC R3 Firmware Files and Customisation(e.g. on BlueROV2)- allows bi-directional control of a sensorless brushless DC motor
- forward, stop, or reverse rotation depending on PWM pulse-duration (stops at 1500±25 µs)
- variable rotation speed (max reverse 1100 µs, max forward 1900 µs)
- built in thermal protection and stall protection
- motor phase detection and ESC arming beeps
- regenerative braking
- also supports control via Oneshot125, Oneshot42, Multshot, Dshot150, Dshot300, and Dshot600
bitdump/ BLHeliBLHeli_S Version 16.x manual
Brushed ESCN/Aavrdude installer scriptNewton Subsea Gripper- allows bidirectional control of a brushed DC motor
- forward, stop, or reverse rotation depending on PWM pulse duration (stops at 1500±30 µs)
- automatic motor stall detection
- single rotation speed
bluerobotics/
newton-firmware
-
PingPing-V3.29_auto
Ping2-V1.1.0_auto
Ping Viewer Firmware UpdatePing Altimeter and Echosounder- enables sonar profiling with a variable range and ping rate
- includes distance estimation algorithm with confidence measure
- variable sensor gain
- allows setting speed of sound
- supports 'common' and 'ping1d' message subsets of Ping Protocol
- serial communication, with 115200 or 9600 baudrate
bluerobotics/ ping-firmware- Ping Protocol: Ping1D
- Ping Viewer: Ping1D
Ping360
Ping360-V3.1.1_auto
-Ping360 Scanning Imaging Sonar- enables multi-directional sonar scanning and profiling, with a variable range and ping rate
- provides low-level device control including sensor gain, transmit duration, sample period, and samples per profile
- supports 'common' and 'ping360' subsets of Ping Protocol
- serial/USB/ethernet communication options
-- Ping Protocol: Ping360
- Ping Viewer: Ping360
H6 ProDefault (limited): V1.0
Full: V1.0.11
H6 Pro Charger Firmware Unlock GuideH6 Pro Lithium Battery ChargerLimited Firmware:
- allows balancing high capacity lithium batteries, and charging to full or storage levels
- supports internal discharging to storage level
Full Firmware:
- allows balancing and charging a variety of battery types, at custom rates and to custom levels
- supports internal, external and regenerative discharging
- multi-function port can test servos, measure PWM, and provide PPM signals
-HOTA H6 PRO Full Manual

Software Libraries and Drivers

These libraries and drivers allow interfacing our components and sensors with different devices and programming languages.
LibraryLanguageCommunicates WithDocumentation Links
ping-rsRust- Ping Sonar
- Ping360
- ping-rs
- Ping Protocol
ping-cppC++- Ping Sonar
- Ping360
- Ping Protocol
ping-pythonPython- Ping Sonar
- Ping360
- ping-python
- Ping Protocol
ping-BlueOSPython- Ping Sonar
- Ping360
ping-ArduinoC++ (Arduino)- Ping Sonar- Ping Arduino
- Ping Protocol: Ping1D
ping-ArduPilotC++ (ArduPilot)- Ping Sonar
MS5837-pythonPython- MS5837 pressure sensors
- Bar30
- Bar02
MS5837-ArduinoC++ (Arduino)- MS5837 pressure sensors
- Bar30
- Bar02
MS5xxx-ArduPilotC++ (ArduPilot)- MS5xxx pressure sensors
- Bar30
KellerLD-pythonPython- Keller LD pressure sensors
- Bar100
- Keller Communication Protocol 4LD-9LD
KellerLD-ArduinoC++ (Arduino)- Keller LD pressure sensors
- Bar100
- Keller Communication Protocol 4LD-9LD
KellerLD-ArduPilotC++ (ArduPilot)- Keller LD pressure sensors
- Bar100
- Keller Communication Protocol 4LD-9LD
TSYS01-pythonPython- TSYS01 temperature sensor
- Celsius
TSYS01-ArduinoC++ (Arduino)- TSYS01 temperature sensor
- Celsius
TSYS01-ArduPilotC++ (ArduPilot)- TSYS01 temperature sensor
- Celsius
navigator-rsRust- Navigator- navigator_rs
navigator-pythonPython- Navigator- navigator-python
navigator-cppC++- Navigator- navigator-cpp
navigator-ArduPilotC++ (ArduPilot)- Navigator
ICM20602-pythonPython- ICM20602 IMU
- Navigator
Invensense-ArduPilotC++ (ArduPilot)- ICM20602 IMU
MMC5983-pythonPython- MMC5983 magnetometer
- Navigator
MMC5883-pythonPython- MMC5883 magnetometer
MMC5xx3-ArduPilotC++ (ArduPilot)- MMC5983 magnetometer
AK09915-rsRust- AK09915 compass
- Navigator
AK09915-pythonPython- AK09915 compass
- Navigator
AK0991x-ArduPilotC++ (ArduPilot)- AK09915 compass
BMP280-pythonPython- BMP280 barometer
- Navigator
BMP280-ArduPilotC++ (ArduPilot)- BMP280 barometer
ADS1115-pythonPython- ADS1115 ADC
- Navigator
ADS1115-ArduPilotC++ (ArduPilot)- ADS1115 ADC
PCA9685-pythonPython- PCA9685 PWM driver
- Navigator
PCA9685-ArduPilotC++ (ArduPilot)- PCA9685 PWM driver
NeoPixel-pythonPython- NeoPixel RGB LED
NeoPixel-ArduPilotC++ (ArduPilot)- NeoPixel RGB LED
CAT24C32-pythonPython- CAT24C32 EEPROM

Technical Bulletins

Technical BulletinRelease DateLast UpdatedCurrent StatusResolution?
12: Camera (.pdf)March 28, 2024OpenNew mount design
11: Lumen Lens (.pdf)November 29, 2023December 15, 2023ResolvedNew lens batch
10: BaseStation (.pdf)November 28, 2023December 15, 2023ResolvedAdjust position of switch
09: Camera (.pdf)October 11, 2023March 28, 2024ResolvedModify camera mount (per TB12)
08: H6 PRO Battery Charger (.pdf)August 28, 2023November 2, 2023ResolvedPort cover + warning label
07: Ethernet Switch (.pdf)December 5, 2022ResolvedCorrect oscillator
06: Fathom X (.pdf)June 30, 2022ResolvedCorrect TVS diode
05: Lumen Lens Cracking (.pdf)May 4, 2021January 7, 2022ResolvedImproved design - R4
04: White Bearings (.pdf)January 22, 2020Resolved
03: Potting (.pdf)December 19, 2019July 08, 2020Resolved
02: Thruster Potting (.pdf)March 29, 2019Resolved
01: Water Linked Underwater GPS / BlueROV2 Integration Kit (.pdf)November 11, 2018Resolved



Authors

Eliot

Eliot is the Community Manager / Applications Engineer at Blue Robotics. He has a background in robotics and computer vision, and loves to help discover and share knowledge. You can find him on our forums as EliotBR.
