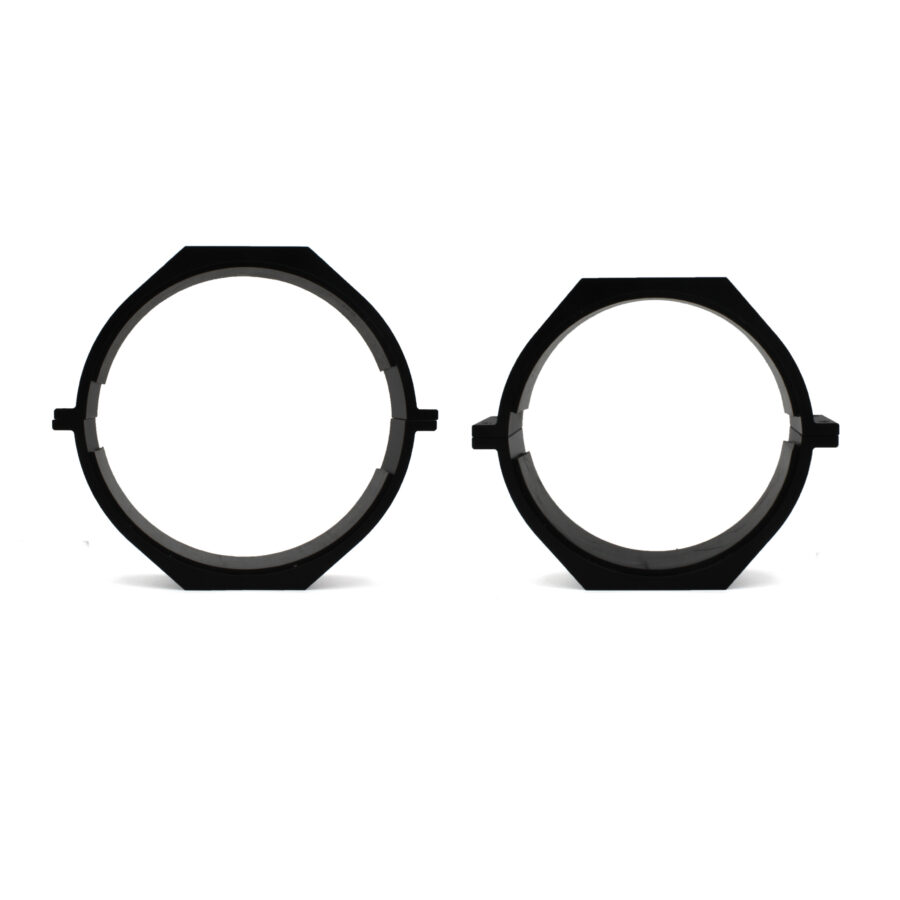

The Enclosure Clamp clamps around a 2″, 3″, or 4″ Watertight Enclosure for easy mounting on your vehicle.

SKU: WTE-CLAMP-VP
HS Code: 3923.50.01

Product Description

These clamps for the 2″, 3″, or 4″ Watertight Enclosures provide a simple and easy mounting solution. The threaded M4 mounting holes allow the watertight enclosure to be mounted flush to the structure of your vehicle, or on a Payload Skid for your BlueROV2.

Product Description

These clamps for the 2″, 3″, or 4″ Watertight Enclosures provide a simple and easy mounting solution. The threaded M4 mounting holes allow the watertight enclosure to be mounted flush to the structure of your vehicle, or on a Payload Skid for your BlueROV2.

CAD model is of the 3″ Watertight Enclosure clamp.

2″ Clamps

  • 2 x Watertight Enclosure Clamp halves
  • 1 x Adhesive rubber strip
  • 4 x M4x10 Socket head cap clamp and mounting screws

3″ and 4″ Clamps

  • 2 x Watertight Enclosure Clamp halves
  • 2 x Thin adhesive rubber strips (1.59 mm) for acrylic tubes
  • 2 x Thick adhesive rubber strips (3.18 mm) for aluminum tubes
  • 4 x M3x12 Socket head cap clamp screws
  • 4 x M4x14 Socket head cap mounting screws

Specifications

Series DiameterMaterial/FinishWeight
50 mm (2")Aluminum 6061-T6, type II anodized21 g
75 mm (3")Aluminum 6061-T6, type II anodized67 g
100 mm (4")Aluminum 6061-T6, type II anodized84 g

2D Drawings

 Drawing

3D Models

WTE2_CLAMP_BR-102474_PUBLIC (.zip)

WTE3-M-CLAMP-R1 (.zip)

WTE4-M-CLAMP-R1 (.zip)

Revision History

5 December 2023

  • BR-102474, WTE2 Clamp Packed Assembly - Initial release

14 June 2023

  • WTE4-M-CLAMP-R1-RP SKU changed to BR-100888

8 June 2023

  • WTE3-M-CLAMP-R1-RP SKU changed to BR-100264

26 November 2019

  • WTE3-M-CLAMP-R1
  • WTE4-M-CLAMP-R1
  • Added 2x 3.18 mm adhesive rubber strips for aluminum tubes with smaller OD

7 November 2016

  • WTE3-M-CLAMP-R1 - Initial release
  • WTE4-M-CLAMP-R1 - Initial release

Quick Start

2″ Clamps

1. Cut the included adhesive rubber strip in half lengthwise.

2. Remove the film from the adhesive and install a rubber strip on each clamp.

3. Put the enclosure between the clamps and secure with two M4x10 screws.

3″ and 4″ Clamps

1. The clamps include two sets of rubber strips, use the thinner strips with acrylic tubes and the thicker strips with aluminum tubes.

2. Remove the film from the adhesive and install a rubber strip on each clamp.

3. Put the enclosure between the clamps and secure using four M3x12 clamp screws.
