$25.00

This switch allows you to turn a circuit on and off inside a watertight enclosure without needing to open it! Handles up to 5A.

In stock

SKU: BR-100433
HS Code: 8536.50.9031

Product Description

This switch allows you to turn a circuit on and off inside a watertight enclosure without needing to open it! Handling up to 5A of current and 120V AC or 26V DC, you can use it to directly operate low power circuits or interact with a microcontroller to provide input for the operation of your vehicle.

This design is rated to 950 meters water depth.

Product Description

This switch allows you to turn a circuit on and off inside a watertight enclosure without needing to open it! Handling up to 5A of current and 120V AC or 26V DC, you can use it to directly operate low power circuits or interact with a microcontroller to provide input for the operation of your vehicle.

This design is rated to 950 meters water depth.

  • 1 x Switch Bulkhead
  • 1 x Switch Plug
  • 1 x M10 Nut
  • 1 x O-ring for Bulkhead
  • 2 x O-ring for Switch Plug
  • 1 x 30-3UL Button
  • 2 x Wire Lead

Specifications

ParameterValue
Performance
Maximum Rated Depth (seawater)950 m3116 ft
Design Lifetime¹3 years or 500 cycles to rated depth
Temperature Rating (air)-25 to 60°C-13 to 140°F
Temperature Rating (water)0 to 40°C32 to 104°F
Electrical
Maximum Operating Voltage120 VAC26 VDC
Maximum Operating Current5A
Wire Gauge22 AWG
Turn ONClockwiseRed
Turn OFFCounter-ClockwiseGrey
Switch ConnectorTE Connectivity 61818-1
Output Connector0.1" Male Header Pin
Tools
Compatible Bulkhead WrenchBR-100977-010
Recommended Installation Torque3.5 N⋅m
Physical
Recommended Through Hole Diameter10.2 mm
Bulkhead ThreadM10 x 1.5
Bulkhead Thread Length20 mm
Bulkhead/Nut Wrench Flats16 mm
Overall Assembled Height From Endcap25 mm
Overall Outer Diameter18 mm
Bulkhead O-ring SizeAS568-013 Buna-N 70A
Plug O-ring Size1.5 x 11.5 mm Buna-N 70A
Bulkhead/ Plug Material7075-T6 Anodized Aluminum
Wetted MaterialsBuna-N Rubber
Molykote 111 Compound
7075-T6 Anodized Aluminum
In Air Weight (No Nut)20.5 g
In Water Weight (No Nut)14.7 g
¹ Design life was used to inform testing in an accelerated environment, does not reflect warranty period.

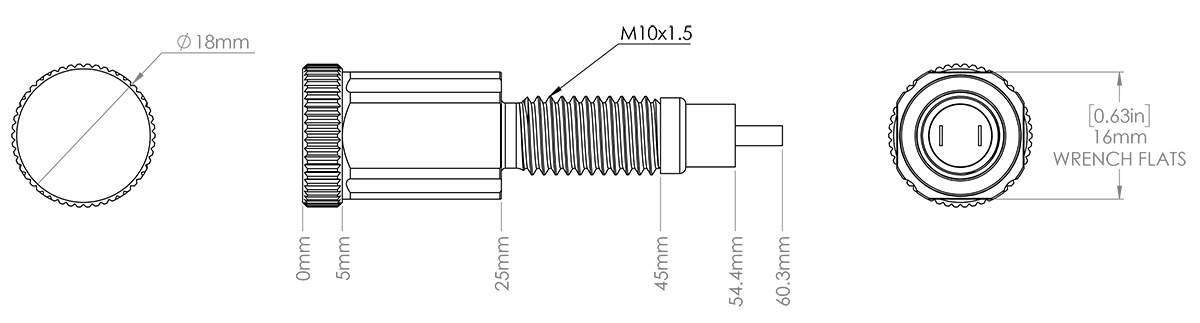

2D Drawings

 Drawing

3D Models

SWITCH-M10-5A-R1 (.zip)

Documents

30-3UL Datasheet

Revision History

6 July 2023

  • SWITCH-M10-5A-R1-RP SKU changed to BR-100433

13 March 2023

  • -013 bulkhead O-ring color changed to blue

23 February 2022

  • SWITCH-M10-5A-R1 - Initial Release
  • Redesigned plug and bulkhead for product compatibility

13 April 2018

  • Dial sticker is replaced with printed on arrows

20 October 2016

  • R1 - Initial Release

Quick Start

  1. Assemble according to the installation instructions.
  2. Turn the dial all the way clockwise to turn the Switch ON.
  3. One full counter-clockwise turn will turn the Switch OFF.

Guides

Switch Installation
Learn how to quickly install the Switch on a WTE for your project!
