$650.00
The M500 Motor is a high-power subsea motor built for applications that demand more power and efficiency. Like the M200, it’s based on our thruster technology, but without the propeller or nozzle, making it great for a wide range of applications like vehicle propulsion, actuators, subsea tooling, and more. It comes with a pre-installed WetLink Penetrator for easy installation in your system.
The M500 Motor is essentially the T500 Thruster, but designed for a wider range of applications. Without a propeller or nozzle, it’s a flexible building block for things like vehicle propulsion for uncrewed surface vessels (USVs) and uncrewed underwater vehicles (UUVs), subsea tooling, gear-trains, actuators, or whatever else you can imagine.

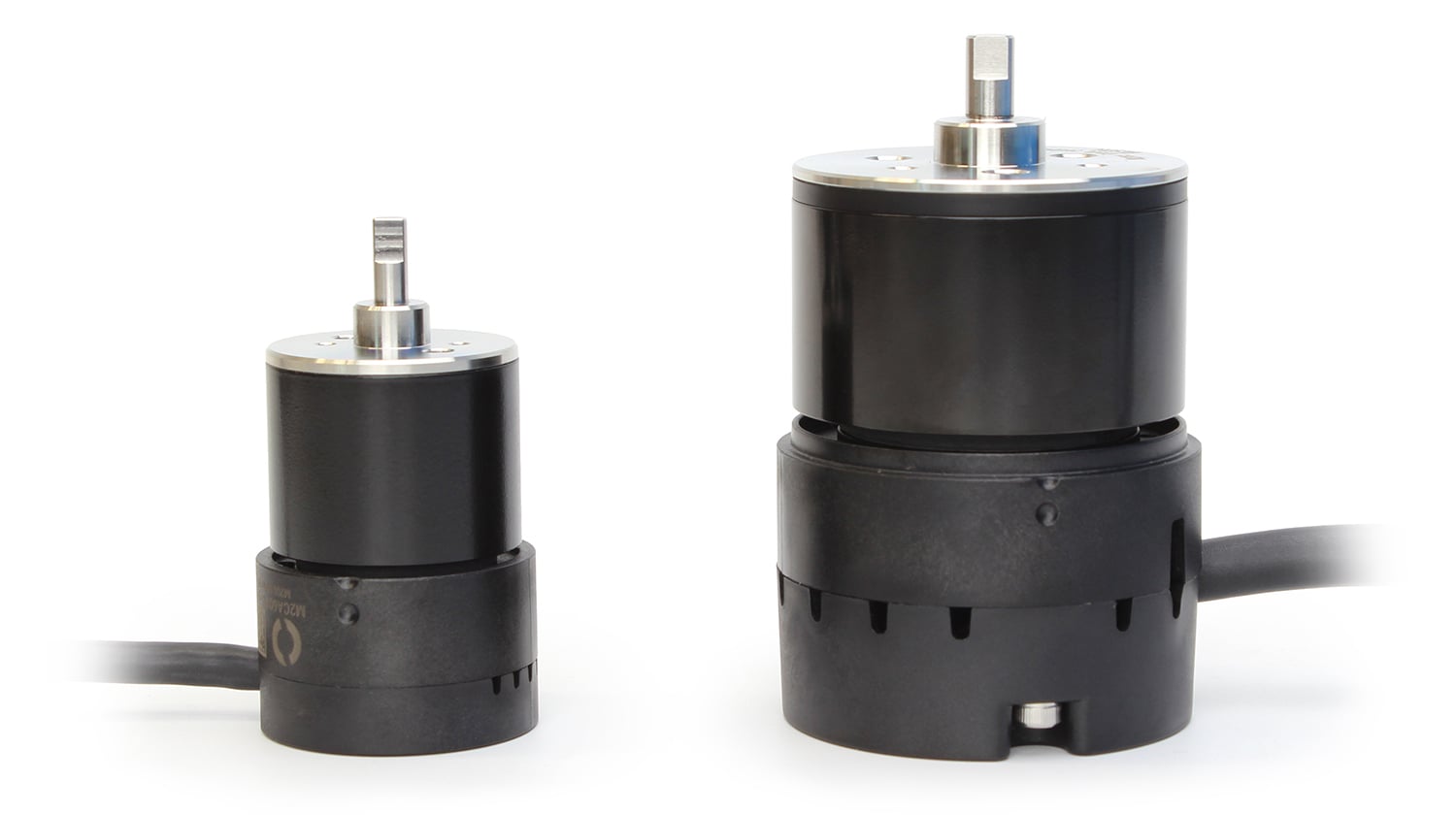

It’s carefully designed to be more rugged, more powerful, and more efficient than the M200 Motor.
Like our thrusters, the M500 is a three-phase brushless motor leveraging our patented flooded design. Water flows throughout the components, so it’s water-cooled, water-lubricated, and inherently pressure tolerant.

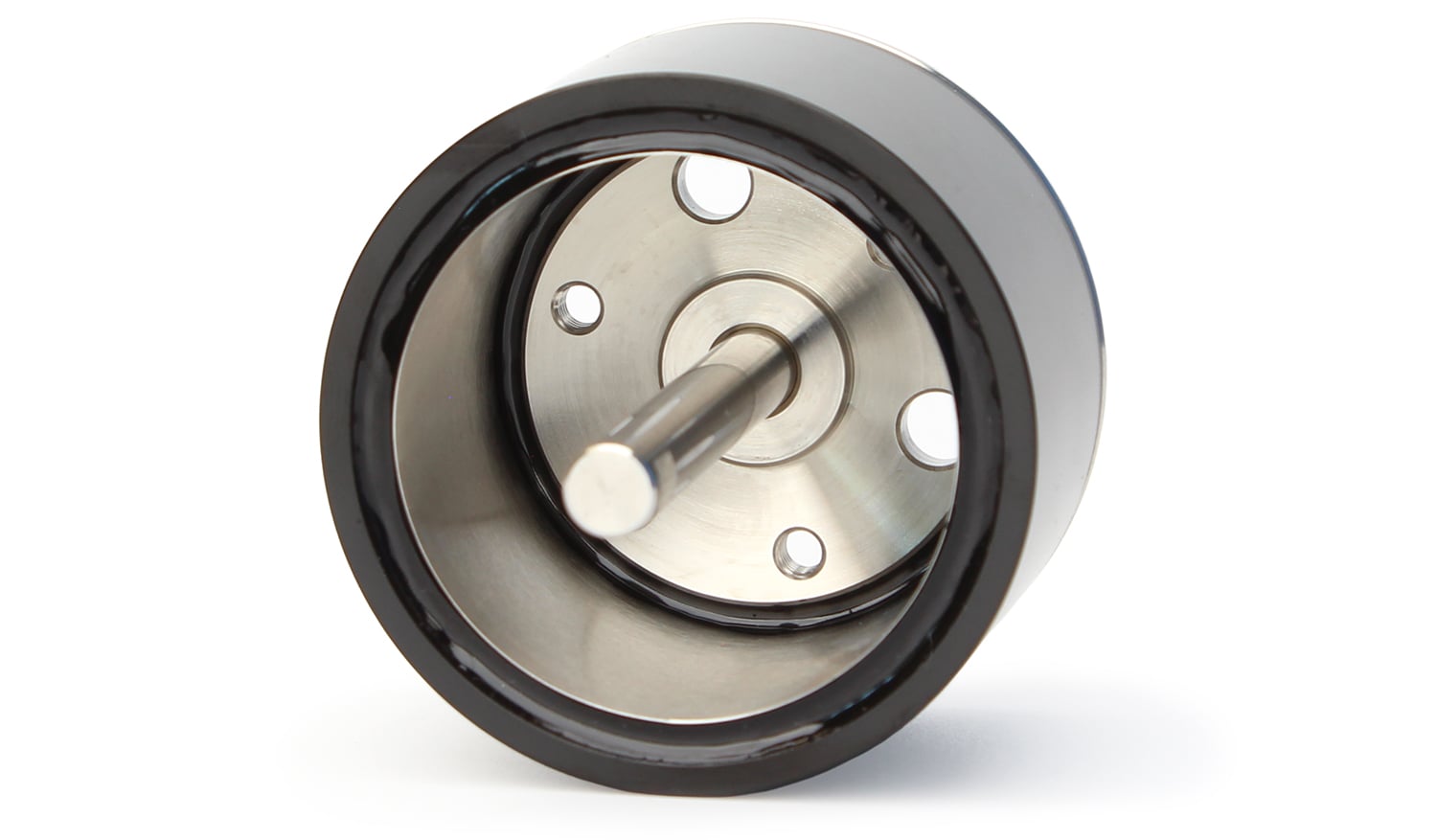

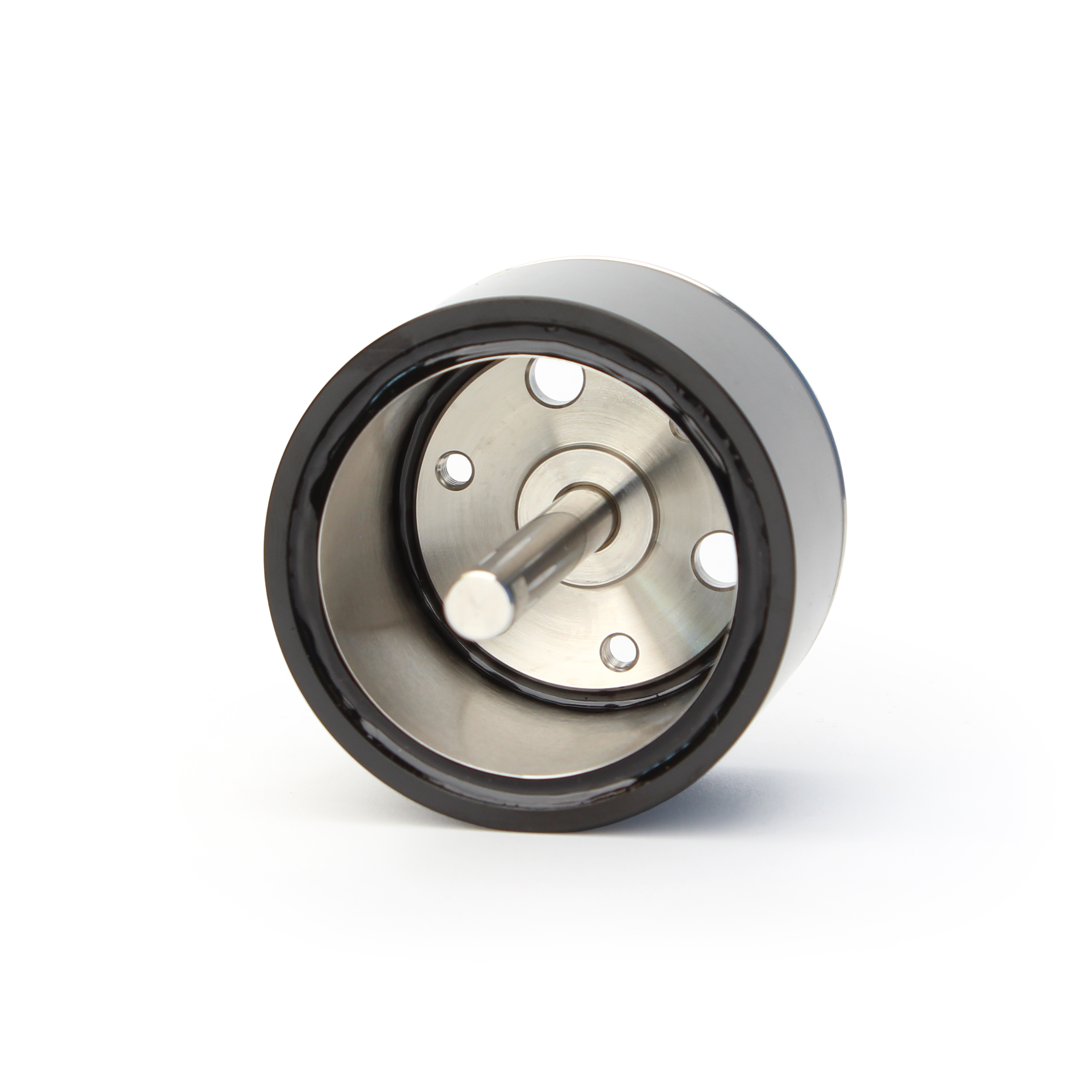

The stator is fully encapsulated and electrically isolated from the water. The rotor features rugged construction with high-performance N52 neodymium magnets protected by a stainless steel abrasion shield, preventing damage from debris or sand. High-performance water-lubricated plastic bearings keep things running smoothly, and the body is made from impact-resistant glass-filled polycarbonate.

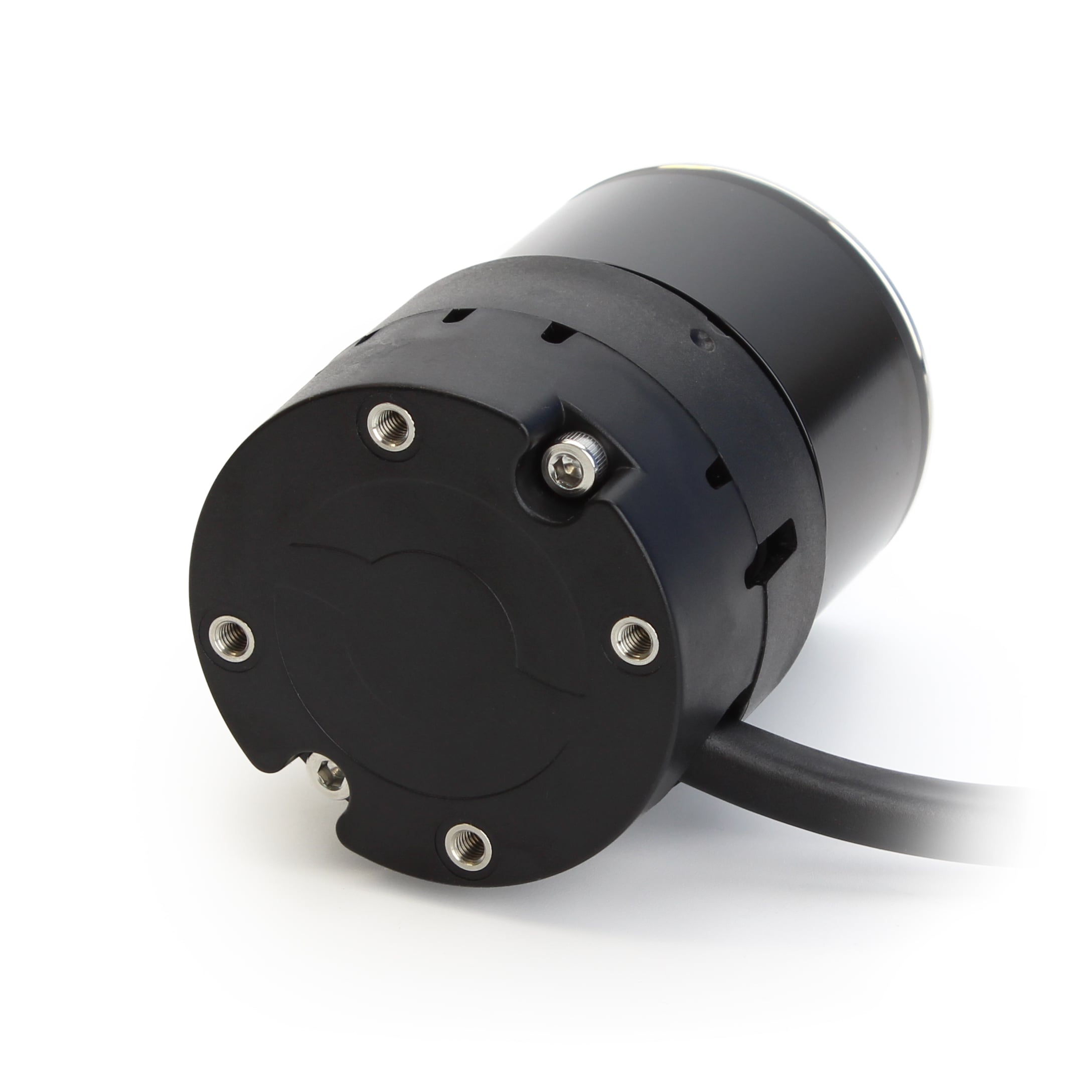

The M500 base includes four M4 mounting holes, making it easy to attach to frames, hulls, or just about anything you can imagine.

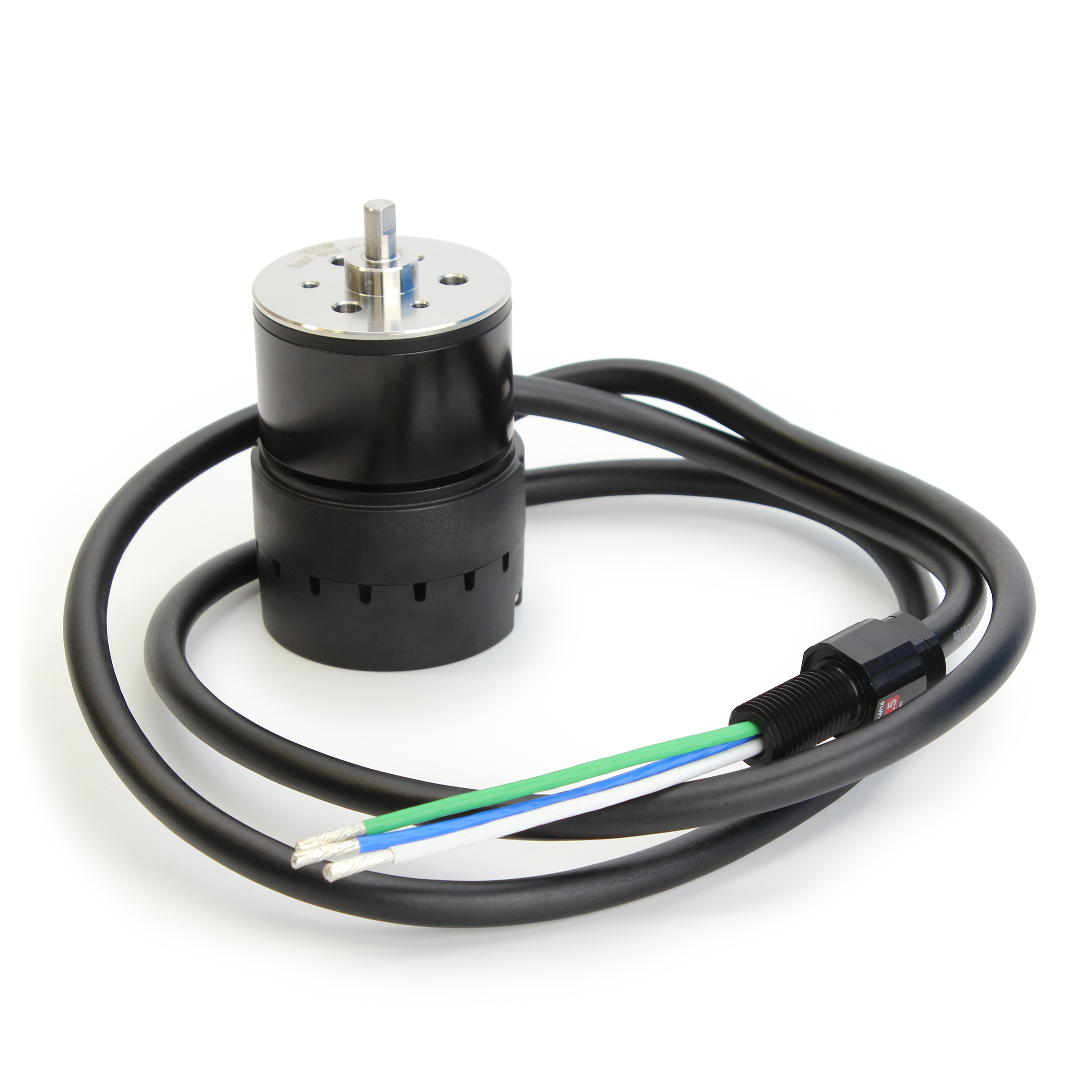

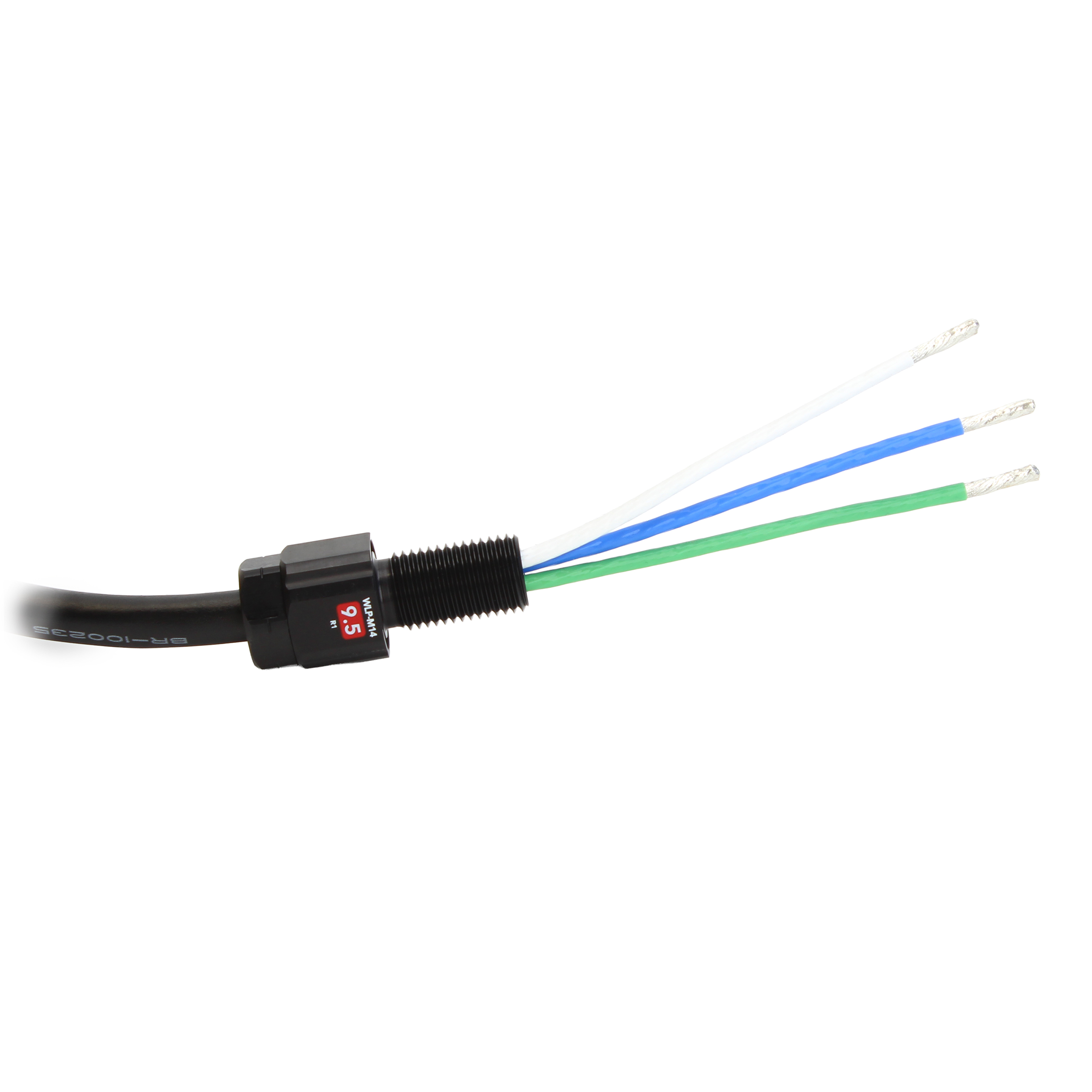

It comes with a 1.5 m cable with a pre-installed WetLink Penetrator for easy connection to a watertight enclosure or other housing.
The M500 requires an electronic speed controller (ESC) for operation. We recommend the Basic ESC 500, designed for the high-power requirements of the M500 at 24V. The Basic ESC can also be used in lower-power applications, as long as current does not exceed its 30A maximum.
You’ll also need a power source like our lithium-ion batteries and a signal source such as the Thruster Commander, an RC radio receiver, a flight controller like the Navigator, or a microcontroller like an Arduino or Raspberry Pi.
Check out the technical details section for full motor specifications and our motor user guide to help get started with operation.
The M500 Motor is essentially the T500 Thruster, but designed for a wider range of applications. Without a propeller or nozzle, it’s a flexible building block for things like vehicle propulsion for uncrewed surface vessels (USVs) and uncrewed underwater vehicles (UUVs), subsea tooling, gear-trains, actuators, or whatever else you can imagine.
It’s carefully designed to be more rugged, more powerful, and more efficient than the M200 Motor.
Like our thrusters, the M500 is a three-phase brushless motor leveraging our patented flooded design. Water flows throughout the components, so it’s water-cooled, water-lubricated, and inherently pressure tolerant.
The stator is fully encapsulated and electrically isolated from the water. The rotor features rugged construction with high-performance N52 neodymium magnets protected by a stainless steel abrasion shield, preventing damage from debris or sand. High-performance water-lubricated plastic bearings keep things running smoothly, and the body is made from impact-resistant glass-filled polycarbonate.
The M500 base includes four M4 mounting holes, making it easy to attach to frames, hulls, or just about anything you can imagine.
It comes with a 1.5 m cable with a pre-installed WetLink Penetrator for easy connection to a watertight enclosure or other housing.
The M500 requires an electronic speed controller (ESC) for operation. We recommend the Basic ESC 500, designed for the high-power requirements of the M500 at 24V. The Basic ESC can also be used in lower-power applications, as long as current does not exceed its 30A maximum.
You’ll also need a power source like our lithium-ion batteries and a signal source such as the Thruster Commander, an RC radio receiver, a flight controller like the Navigator, or a microcontroller like an Arduino or Raspberry Pi.
Check out the technical details section for full motor specifications and our motor user guide to help get started with operation.
| Parameter | Value | |
|---|---|---|
| Performance | ||
| Depth Rating | 300 m | 984 ft |
| Design Lifetime ¹ | 3 years or 300 cycles to rated depth | |
| Stall Torque (calculated) | 2.04 N·m | 1.5 lb⋅ft |
| Operating Water Temperature (full power @ 24V) | 2–27°C | |
| Electrical ² | ||
| Operating Voltage ³ | 7–24 V | |
| Motor Kv (no load) | 202 RPM/V | |
| Motor Configuration | 12 slot, 14 pole | |
| Max Current (Power) @ 24 V (no load) | 3.3 A (79 W) | |
| Max RPM @ 24 V (no load) | 4700 RPM | |
| Physical | ||

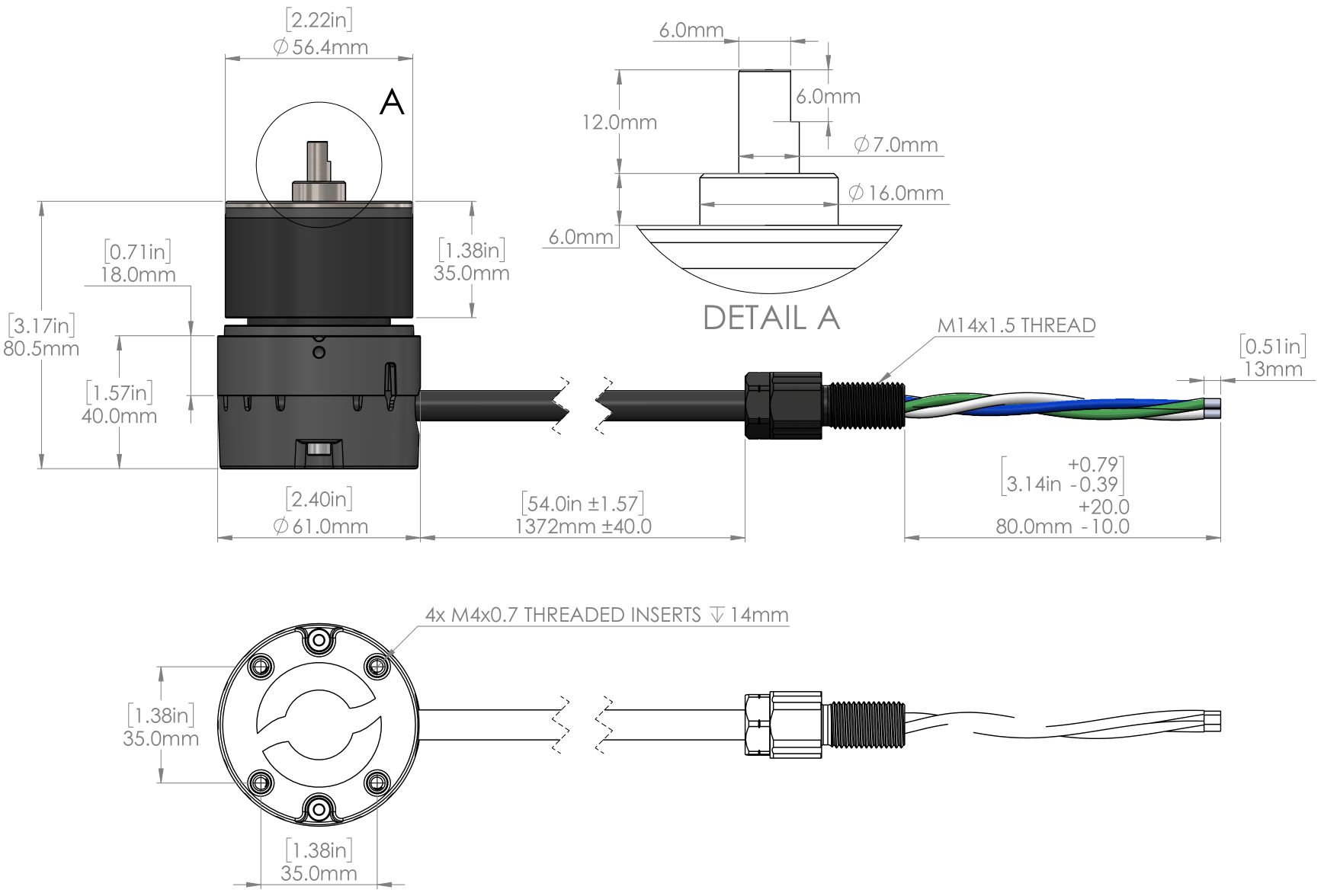

| Length | 98.45 mm | 3.875 in |
| Diameter | 61 mm | 2.4 in |
| Wetted Materials | Stainless steel 316 Polycarbonate 10% glass-filled Epoxy POM Polyurethane Aluminum 7075-T6 FKM Buna-N |
|
| Weight in Air | 895 g | 1.97 lb |
| Weight in Water | 641 g | 1.41 lb |
| Mounting Hole Threads | M4 x 0.7 | |
| Mounting Hole Spacing | 35 mm | |
| Cable | ||
| Cable Type | T500 Cable (BR-100235) | |
| Cable Length | 1372±40 mm | 54±1.57 in |
| Conductor Length | 80 mm +20/-10 | 3.14 in +0.79/-0.39 |
| Conductor Gauge | 12 AWG | |
| WetLink Penetrator | M14-9.5MM-HC | |
| Bulkhead Thread | M14 x 1.5 | |
| Bulkhead O-ring | M14 (1.5x15 mm Buna-N 70A) | |
| ¹ Design life was used to define accelerated test conditions and does not represent a warranty period. ² Electrical values are typical; actual units may vary within +/-5%. Measured using the Basic ESC 500. ³ The M500 Thruster has a maximum operating voltage of 24 V, equivalent to a fully charged 6S LiPo or Li-ion battery. Continuous full-throttle operation at 24 V should be limited to 1 minute or less to avoid overheating. |
||
M500_MOTOR_BR-103168 (.zip)

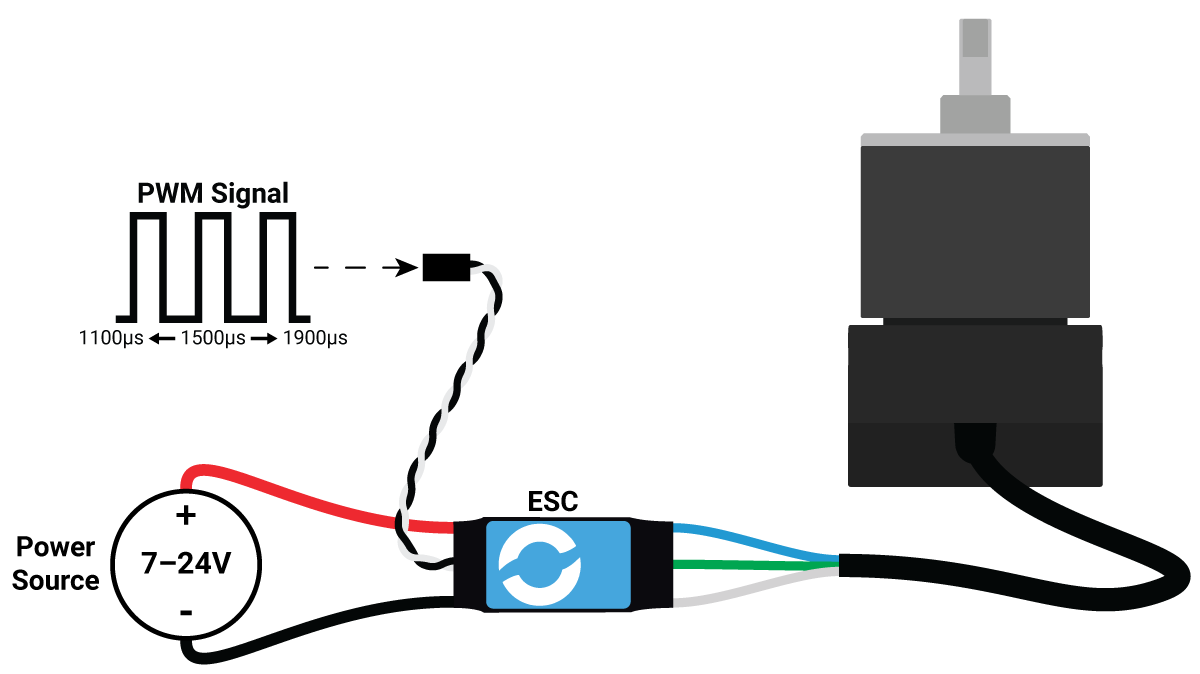

1. Connect motor wires to ESC phase wires.
2. Connect the ESC to a power source.
3. Connect the ESC signal wire to a signal source.
4. Send 1500μs PWM signal to initialize, then send PWM signal to control speed:
