WetLink Penetrator JPT

$13.00

The WetLink Penetrator JPT is a WetLink Penetrator with a wider internal diameter to let the whole cable pass through, jacket included, no stripping required. Each set includes a bulkhead, seal, plug, O-ring, and nut. It’s rated to 100 meters, with much deeper ratings possible depending on your specific cable. We recommend the WetLink Plug Wrench and WetLink Assembly Block to help with assembly!

Bulkhead Size - Seal Size - Plug Compression - Compatible Cable Diameter

Clear

U.S. customers will be charged a tariff surcharge of $1.56 for this product. Learn more

SKU: WLP-JPT-VP Category: Penetrators
HS Code: 7616.10.7030
Country of Origin: China

Description

Product Description

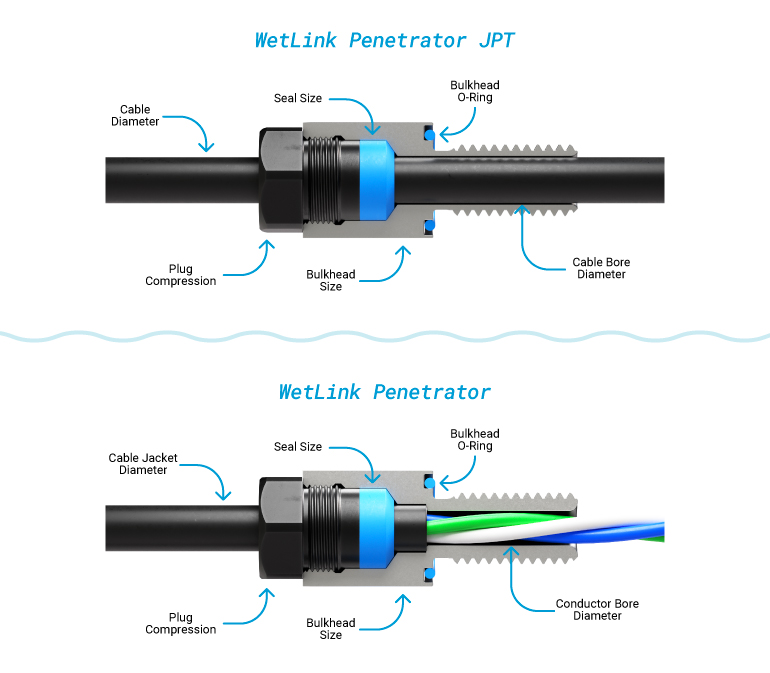

The WetLink Penetrator JPT (short for Jacket Pass-Through) gives users the ability to route entire cables directly into a Watertight Enclosure without the need for stripping off the outer jacket. By utilizing a wider internal diameter than standard WetLink Penetrators, this is the perfect solution for coax cables and other specialized wires where the outer jacket is essential for cable functionality.

It isn’t just for cables, either! This penetrator works exceptionally well for routing rigid or flexible tubing into your enclosure, making it a great choice for buoyancy engines, water sampling systems, and custom pneumatics or fluidics.

Know Your Limits

Because this design allows the entire jacket to pass through without an internal physical step to brace against, extreme water pressure can push the outer jacket into the housing. As a result, the baseline depth rating for this penetrator is 100 meters.

However, when paired with the right cable jacket construction, much higher depth ratings of up to 950 meters are possible. Check out the Technical Details for the cables we’ve tested with the WLP JPT. Because of the variables at play, we highly recommend testing your specific cable or tubing configuration under real-world conditions to dial in your exact maximum safe depth.

Product Description

Know Your Limits

3D Product View

CAD model is of the 6.5mm WLP JPT.

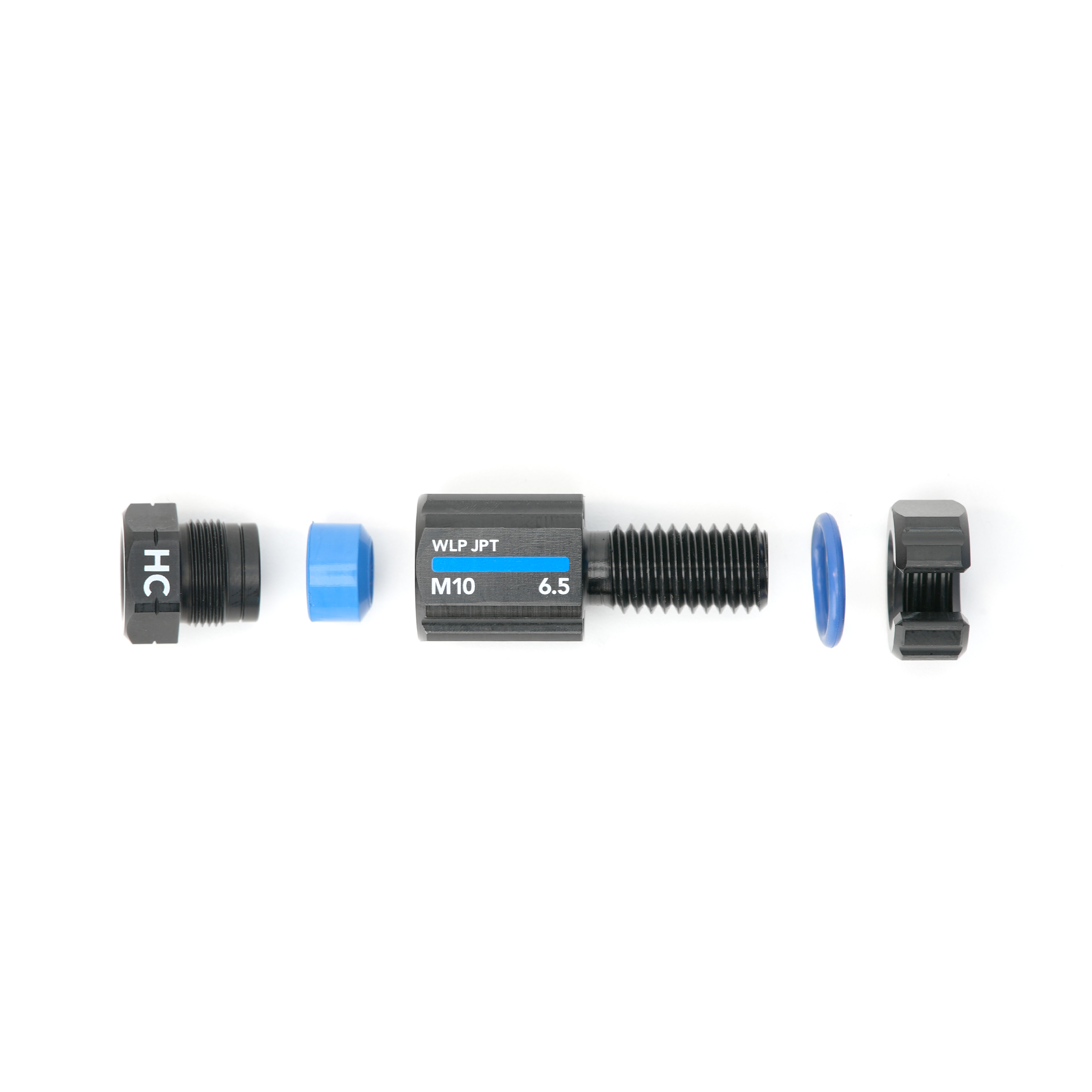

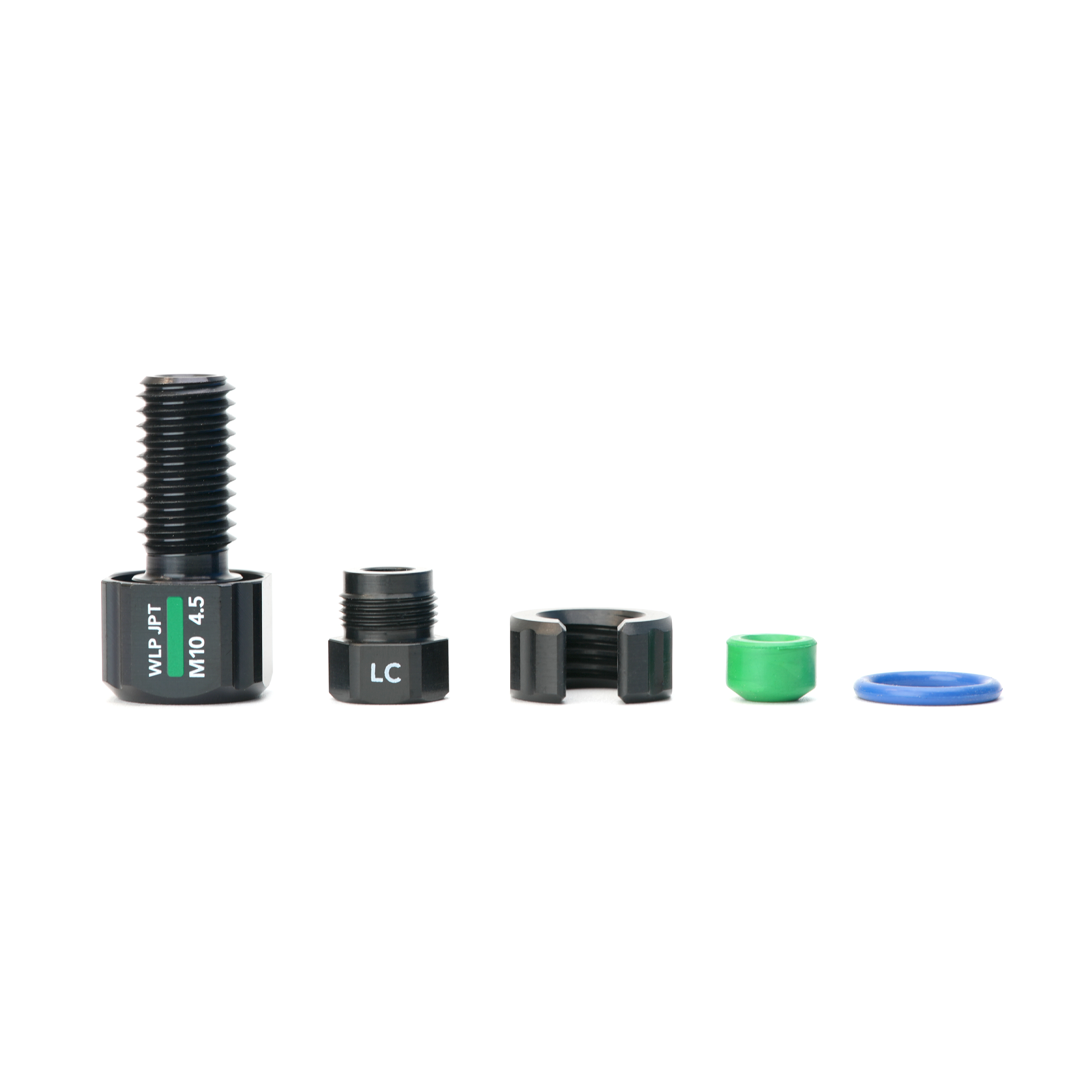

For each unit, the following items are included for the selected cable diameter size and bulkhead size.

1 x WLP JPT Bulkhead
1 x WLP Plug
1 x WLP Seal
1 x WLP Nut
1 x O-Ring

Technical Details

Performance Characteristics

Parameter	Value
Depth Rating (without cable extrusion)	100 msw / 328 ftsw @ 40°C
Maximum Depth ¹	up to 950 msw / 3116 ftsw
Design Lifetime ²	3 years or 500 cycles to rated depth
Reuse Recommendations (link)
Bulkhead and Plug	reusable up to 3 times
Seal	not reusable
* For reference only. Performance may vary with application and cable construction. The user is responsible for verifying suitability for their application. ¹ Performance beyond 100 m depends on cable properties and operating conditions. Cable extrusion may occur at higher pressures. ² Design life was used to define accelerated test conditions and does not represent a warranty period.

Size Index

	Bulkhead Size	Cable Bore Diameter	Plug Compression	Cable Diameter Range	Part Number
4.5	M10	4.8 mm	High (HC)	3.7 – 4.3 mm	BR-107163-145
4.5	M10	4.8 mm	Low (LC)	4.2 – 4.8 mm	BR-107163-045
5.5	M10	5.7 mm	High (HC)	4.7 – 5.3 mm	BR-107163-155
5.5	M10	5.7 mm	Low (LC)	5.2 – 5.7 mm	BR-107163-055
6.5	M10	6.7 mm	High (HC)	5.7 – 6.3 mm	BR-107163-165
6.5	M10	6.7 mm	Low (LC)	6.2 – 6.7 mm	BR-107163-065

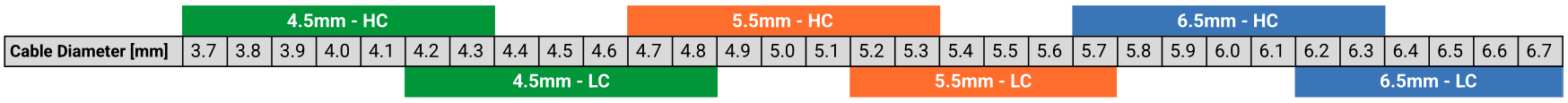

Cable Diameter Index

Tools

WLP JPT	Bulkhead Flat Size	Bulkhead Installation Torque	Plug Wrench	Plug Installation Torque ²
4.5	16 mm	3.5 N⋅m	11 mm (BR-100369-011)	~14 N⋅m
5.5, 6.5	16 mm	3.5 N⋅m	14 mm (BR-100369-014)	~14 N⋅m
¹ The WetLink Penetrator Assembly Block is compatible with all WetLink Penetrator sizes. ² Installation torque is approximate. Actual torque to fully seat the plug varies by cable.

Tested Cables

Compatible WetLink Penetrator	Cable Part Name / Number	Application	Jacket Diameter	Jacket Material	Conductors	Rec. Max Temp ¹	Rec. Max Depth @ 20℃	Rec. Max Depth @ 40℃	Cable Extrusion ²
M10-4.5-HC-JPT	Fathom Slim Tether	Tether	4.0 mm	PUR Foam	1x UTP 26AWG	50℃	950 msw	500 msw	< 1 mm
M10-4.5-LC-JPT	Lumen/Gripper Cable	Power / PWM	4.5 mm	PUR	3x 22AWG	60℃	950 msw	500 msw	< 3 mm
M10-5.5-HC-JPT	Ping Cable	Power / Serial	4.5 mm	PUR	4x 24AWG	60℃	300 msw	100 msw	< 3 mm
M10-5.5-LC-JPT	Ping360 Cable	Power / Ethernet	5.5 mm	PUR	3x UTP 26AWG	50℃	950 msw	100 msw	< 3 mm
M10-6.5-LC-JPT	T200 Thruster Cable	Power	6.4 mm	PUR	3x 16AWG	60℃	300 msw	100 msw	< 2 mm
¹ Sustained high temperatures or current can lead to performance loss over long periods of time. ² After 300 cycles. Extrusion does not cause a leak. If left unmitigated, extrusion will continue with repeated dive cycles.

Physical Properties

Bulkhead Size	M10
Seal Sizes (A)	4.5, 5.5, 6.5
4.5 mm Through Hole Diameter	4.8 mm
5.5 mm Through Hole Diameter	5.7 mm
6.5 mm Through Hole Diameter	6.7 mm
Bulkhead Thread (B)	M10 x 1.5
Bulkhead Thread Length (C)	20 mm
Bulkhead/Nut Wrench Flats	16 mm
Assembled Height from Endcap (D)	18–26 mm
Overall Outer Diameter (E)	18 mm
Bulkhead O-ring Size (F)	AS568-013 Buna-N 70A
Nut Height (G)	8 mm
Nut Slot Width (H)	5 mm
Installation Hole (Port) Size
Clearance	10.0–10.2 mm
Tapped	M10 x 1.5
Assembled air weight (no cable)	13.9–15.6 g
Assembled water weight (no cable)	10.2–10.7 g
Seal Material	FKM
Seal Material Temperature Range	-25℃ to 200℃
Bulkhead / Plug Material	Aluminum 7075-T6, type III anodized

Test Procedure

Parameter	Value
Number of Cycles	500 cycles
Water Temperatures at Pressure	2°C to 40°C
Temperature Shock Cycling in Air	-30°C to 70°C
Cable Axial Strain (10 cycles)	4.5 kg
Cable Radial & Torsional Straining	Yes
Tested Current at Pressure (if applicable)	Yes
1000V Hipot Test & Continuity Test	Yes
Accelerated Age Test	Yes
*Test values shown for reference only, it is the responsibility of the customer to determine suitability for their application.
