$95.00

Boost communication range with the BlueBoat Antenna and Accessory Mast. This mast raises the height of the BlueBoat antenna to improve line of sight and increase range by up to two times.

It’s made from anodized aluminum with UV-stabilized polycarbonate brackets, it folds down for transport and also mounts accessories like weather sensors, lights, or other payloads.

In stock

SKU: BR-103542
HS Code: 9015.90

Product Description

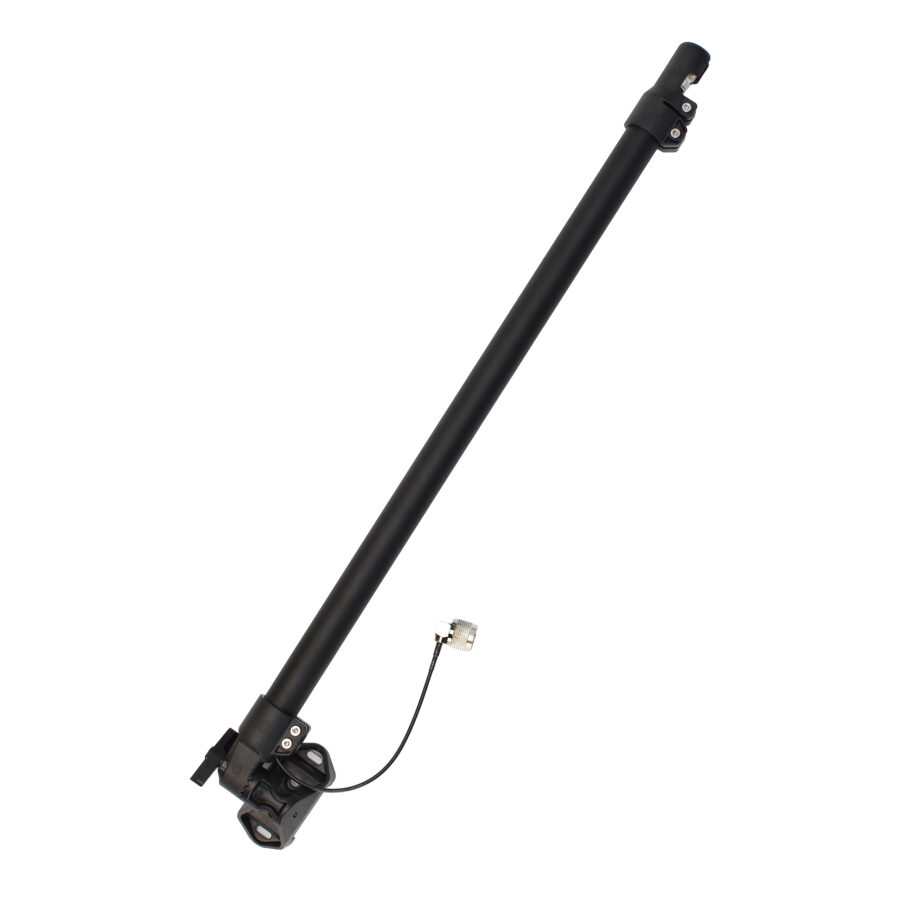

The BlueBoat Antenna and Accessory Mast boosts BlueBoat communication range by raising the antenna above the surface of the water.

High-frequency radio waves like the Wi-Fi signal used by the BlueBoat rely on clear line of sight to stay strong and stable. When the antenna sits low to the water, waves and surface chop can block or absorb the signal. Reflections off the water surface can also cause interference and reduce performance.

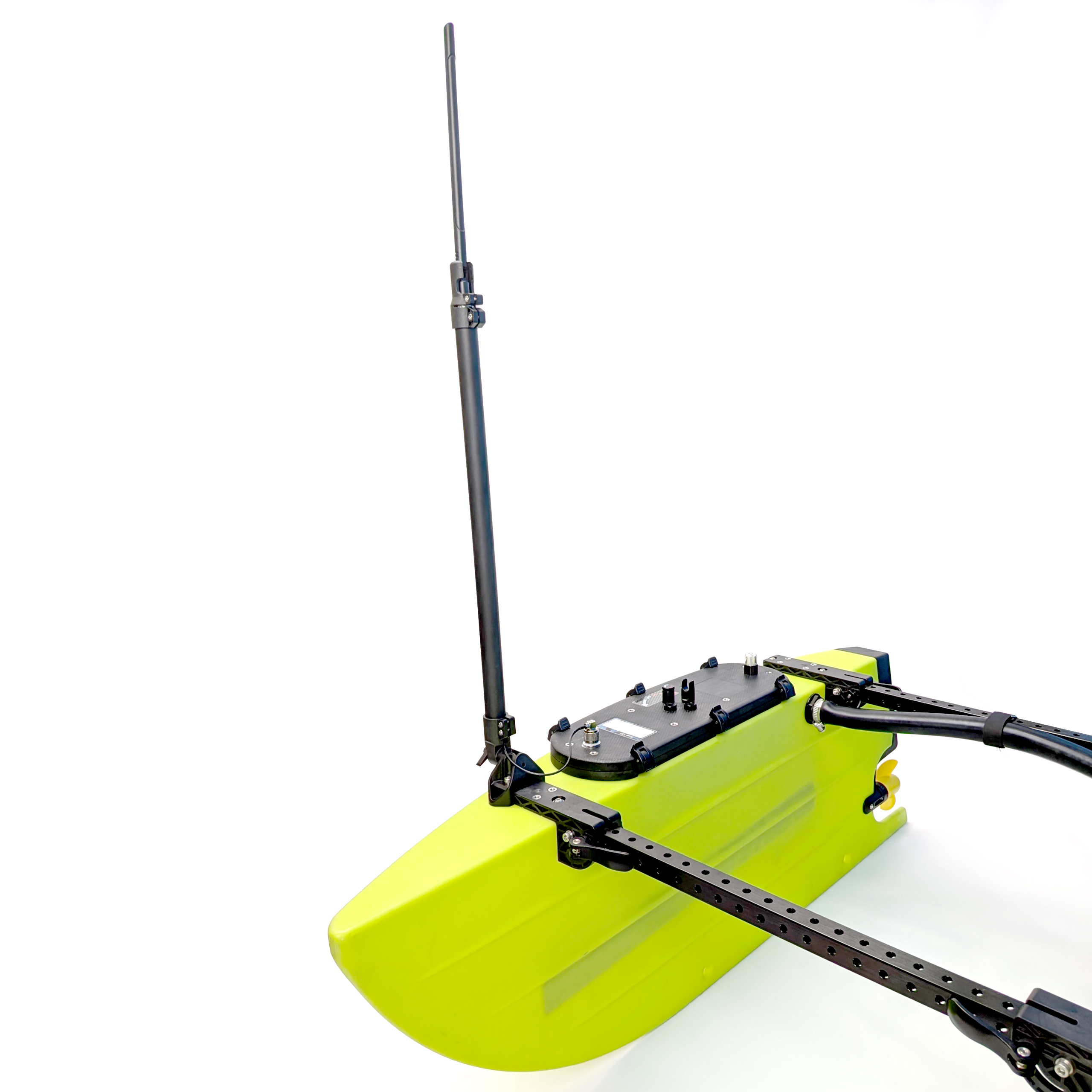

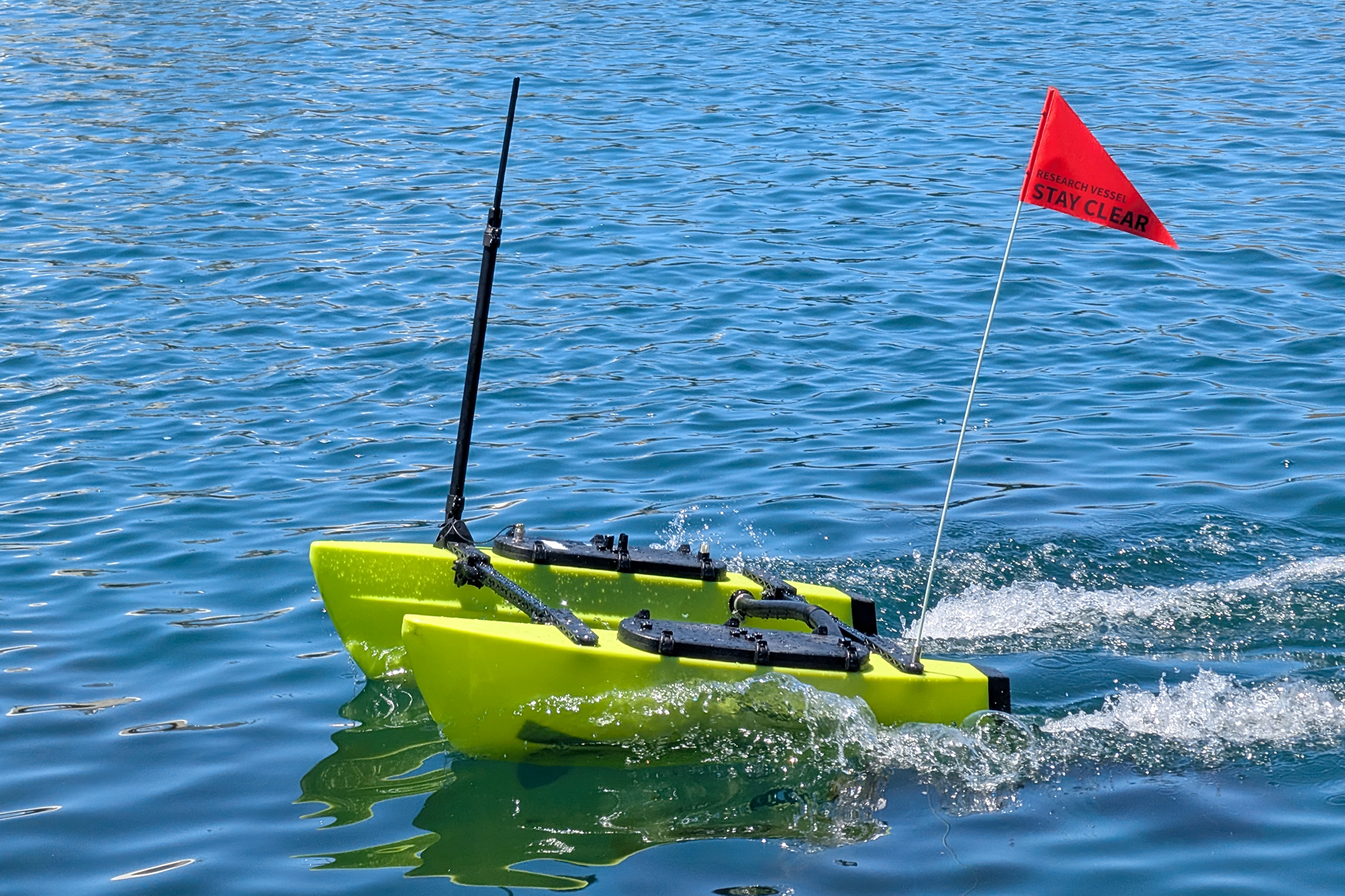

This mast raises the antenna two feet above the BlueBoat deck, improving line of sight for stronger, more stable communication. In our testing, this simple change increased communication range by up to two times on average. It’s compatible with both the standard Wi-Fi antenna and the Cellular Modem Kit antenna.

Mounting the Mast and More

And it’s not just for antennas—you can mount payloads like weather sensors, lights, and more.

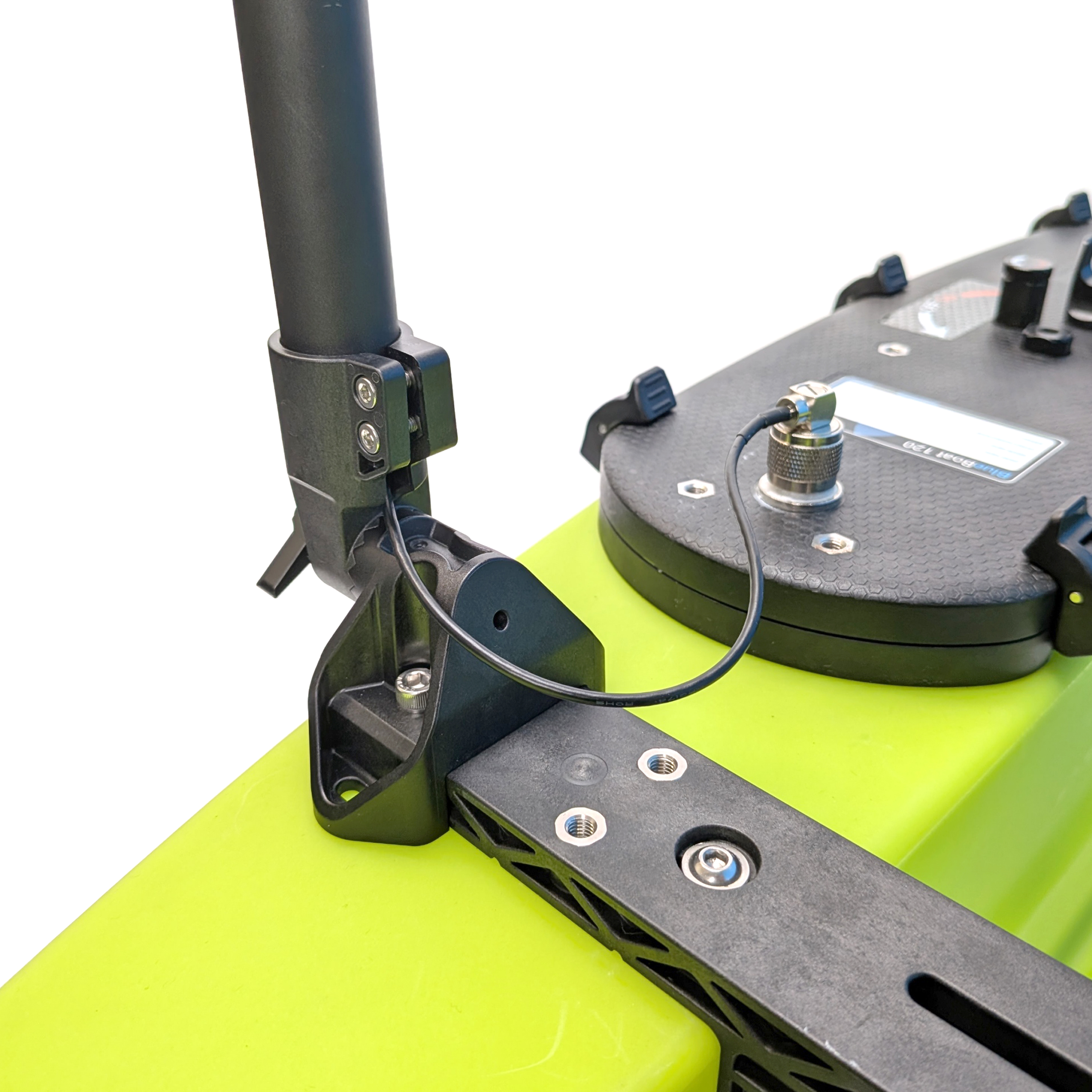

The mast is made of anodized aluminum with UV-stabilized polycarbonate brackets and mounts directly to any of the BlueBoat’s frame brackets. You can even install more than one if you have multiple antennas or accessories. It adjusts from 0° to 180° in 22.5° increments and folds flat for transport.

A cable for installing an antenna is included, but you can also run your own cables through the mast for other payloads. All mounting hardware is included, see the installation guide for full details.

Product Description

The BlueBoat Antenna and Accessory Mast boosts BlueBoat communication range by raising the antenna above the surface of the water.

High-frequency radio waves like the Wi-Fi signal used by the BlueBoat rely on clear line of sight to stay strong and stable. When the antenna sits low to the water, waves and surface chop can block or absorb the signal. Reflections off the water surface can also cause interference and reduce performance.

This mast raises the antenna two feet above the BlueBoat deck, improving line of sight for stronger, more stable communication. In our testing, this simple change increased communication range by up to two times on average. It’s compatible with both the standard Wi-Fi antenna and the Cellular Modem Kit antenna.

Mounting the Mast and More

And it’s not just for antennas—you can mount payloads like weather sensors, lights, and more.

The mast is made of anodized aluminum with UV-stabilized polycarbonate brackets and mounts directly to any of the BlueBoat’s frame brackets. You can even install more than one if you have multiple antennas or accessories. It adjusts from 0° to 180° in 22.5° increments and folds flat for transport.

A cable for installing an antenna is included, but you can also run your own cables through the mast for other payloads. All mounting hardware is included, see the installation guide for full details.

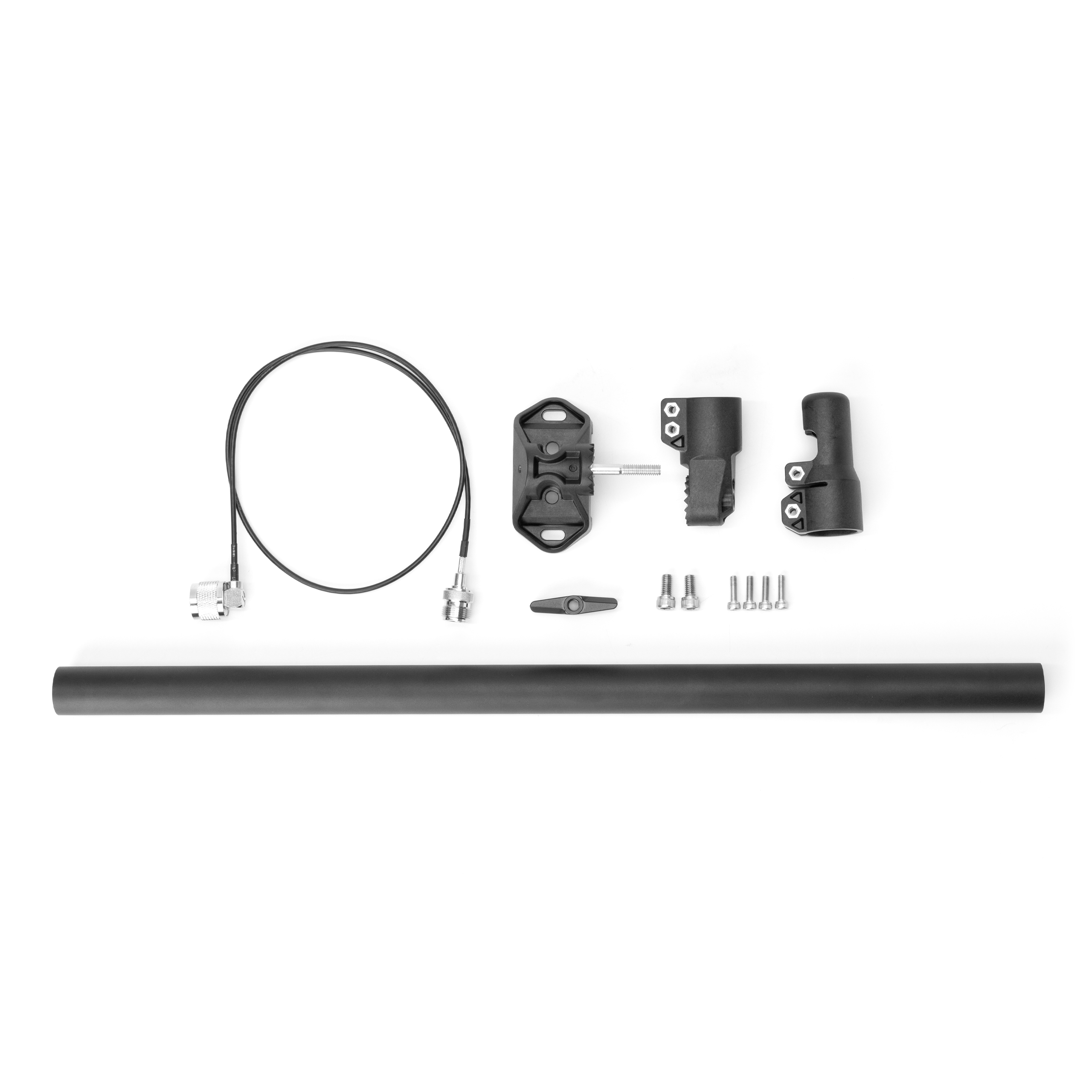

  • 1 x Mast base (BR-103587)
  • 1 x Swivel base (BR-103544)
  • 1 x Antenna holder (BR-103547)
  • 1 x Mast pole (BR-103235)
  • 1 x Wing nut (BR-103626)
  • 1 x N-type coax cable (BR-103789)
  • 4 x M4x14 socket head cap screw (BR-100334)
  • 2 x M6x12 socket head cap screw (BR-103528)
  • 1 x Molykote 111 6 g pack

Specifications

ParameterValue
Performance
Communication Range Increase (antenna with mast)¹Up to 2x
Physical
Pole Length50 cm
Overall Height62.5 cm
Overall Weight325 g
Pole Diameter Compatibility (OD)Ø25.0–25.4 mm (Ø1 in)
Pole Mount TypeClamp
Antenna Mount TypeClamp
Structure ConfigurationsRaised
Folded
Free

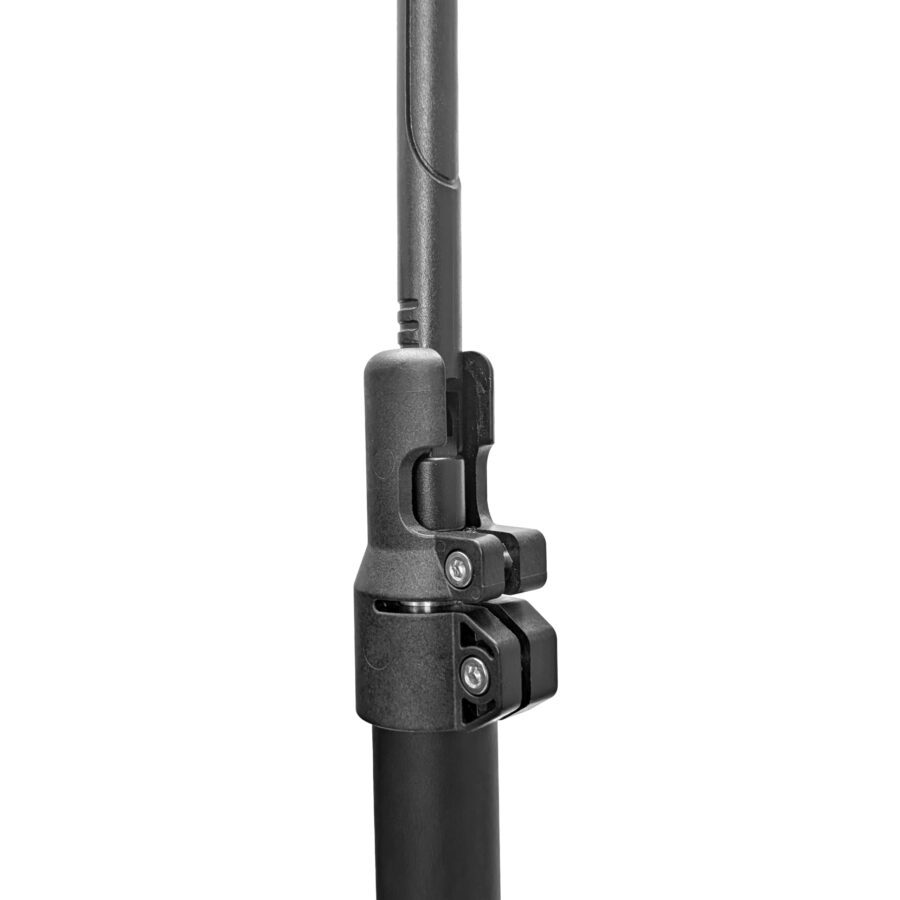

Joint TypeHirth joint
Mast Angle positions0°–180°, 22.5° increments
MaterialsAluminum 6063-T6 type III anodized
Polycarbonate 30% glass-filled UV stabilized
Stainless steel 316 black oxide coated
Stainless steel 316
Cable
Coaxial Cable TypeRG174
Cable Length70 cm
Cable DiameterØ2.8 mm
Impedance50 Ω
ConnectorN-type male to female
MaterialSteel copper strand
1 Typical improvement compared to default antenna mounting. Actual range may vary depending on environmental conditions.

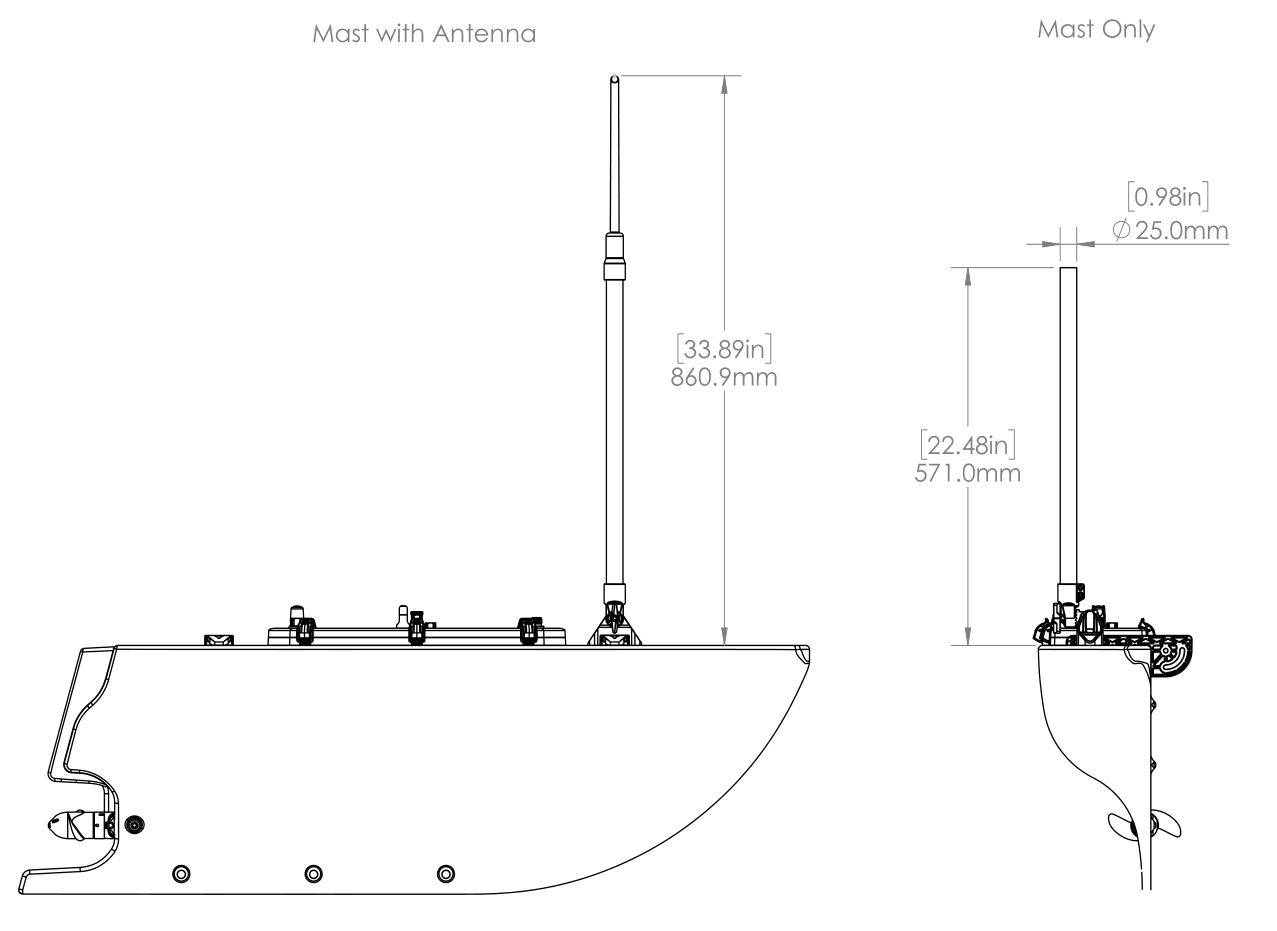

2D Drawings

BlueBoat Antenna and Accessory Mast

BlueBoat Antenna and Accessory Mast Drawing

3D Models

ANTENNA_AND_ACCESSORY_MAST_BR-103542 (.zip)

Revision History

5 August 2025

  • BR-103542 – Initial release
