$200.00

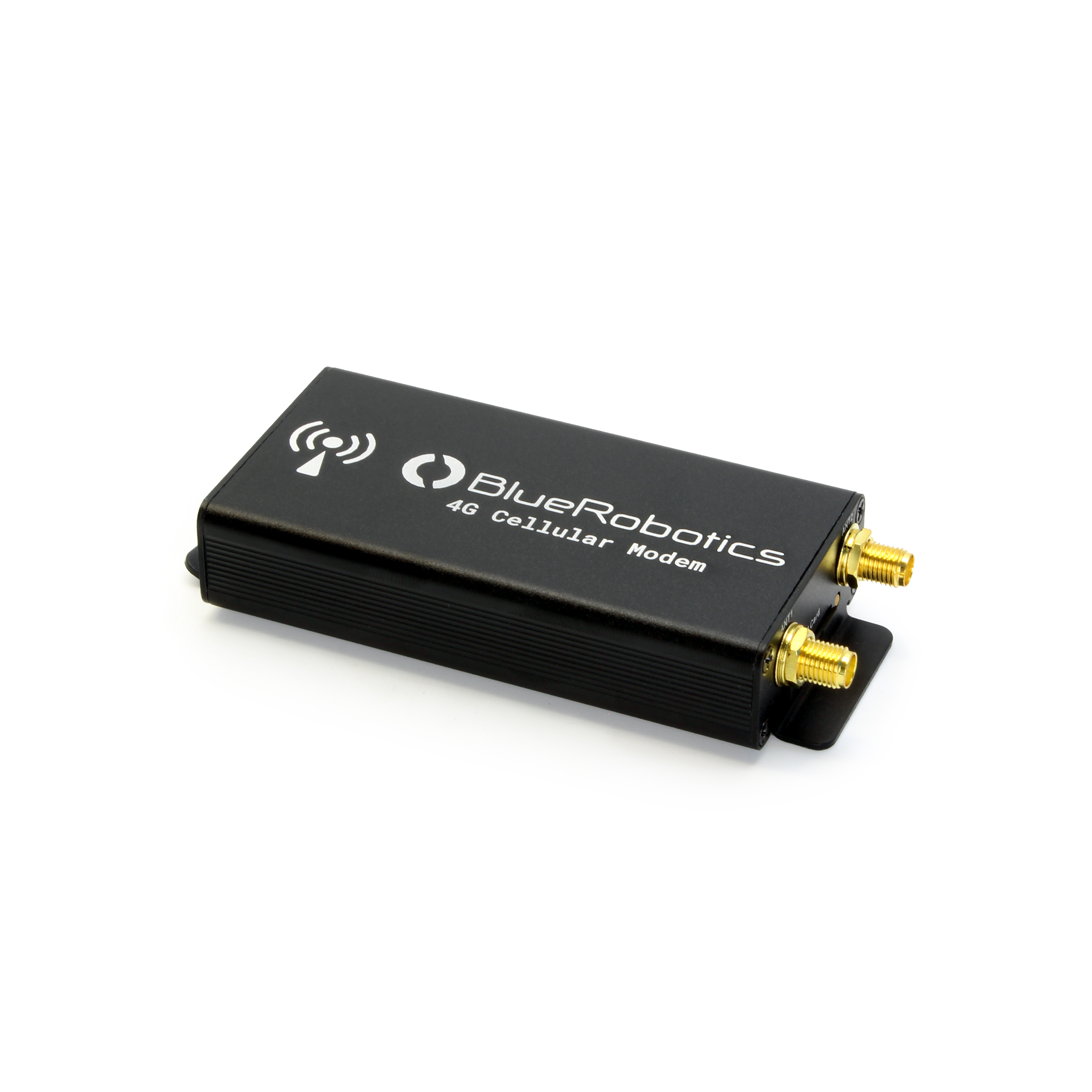

This 4G LTE global cellular modem provides mobile network connectivity for the BlueBoat, enabling long-range remote operation beyond the BaseStation’s 2.4GHz Wi-Fi network. It connects via USB and includes an external antenna and all necessary accessories for installation on the BlueBoat.

A Hologram SIM card is included for quick startup, but we recommend signing up with a local carrier for better data rates and coverage!

In stock

SKU: BR-103376
HS Code: 8517.62

Product Description

Say goodbye to range anxiety! This 4G LTE global cellular modem provides mobile network connectivity for the BlueBoat, enabling long-range communication beyond the reach of the BaseStation.

With cellular coverage, the BlueBoat can operate in remote areas while you control and monitor it from hundreds of miles away. Just like your cell phone, the modem connects to mobile networks using 4G LTE, so the BlueBoat can stay online anywhere with cellular coverage.

The cellular connection is best suited for low-bandwidth tasks like viewing telemetry, monitoring and updating missions, or issuing commands. It’s not ideal for high-bandwidth devices or payloads due to potential high data costs and lower connection speed.

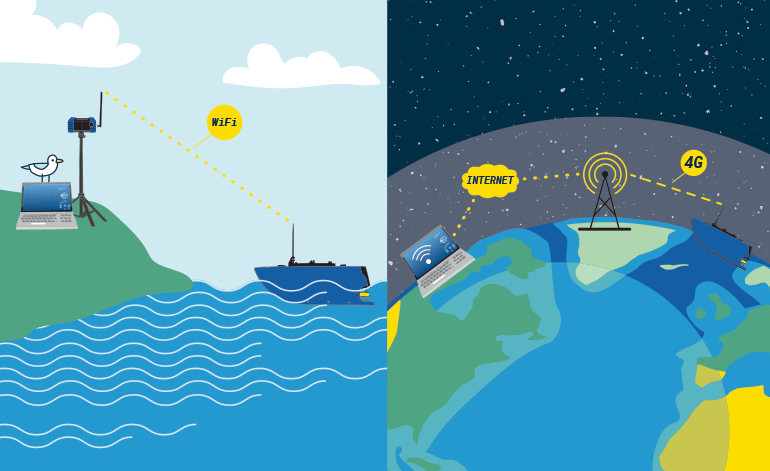

On the left: the BlueBoat connected using the BaseStation. On the right: the Blueboat connected using the Cellular Modem.

Beyond the BaseStation

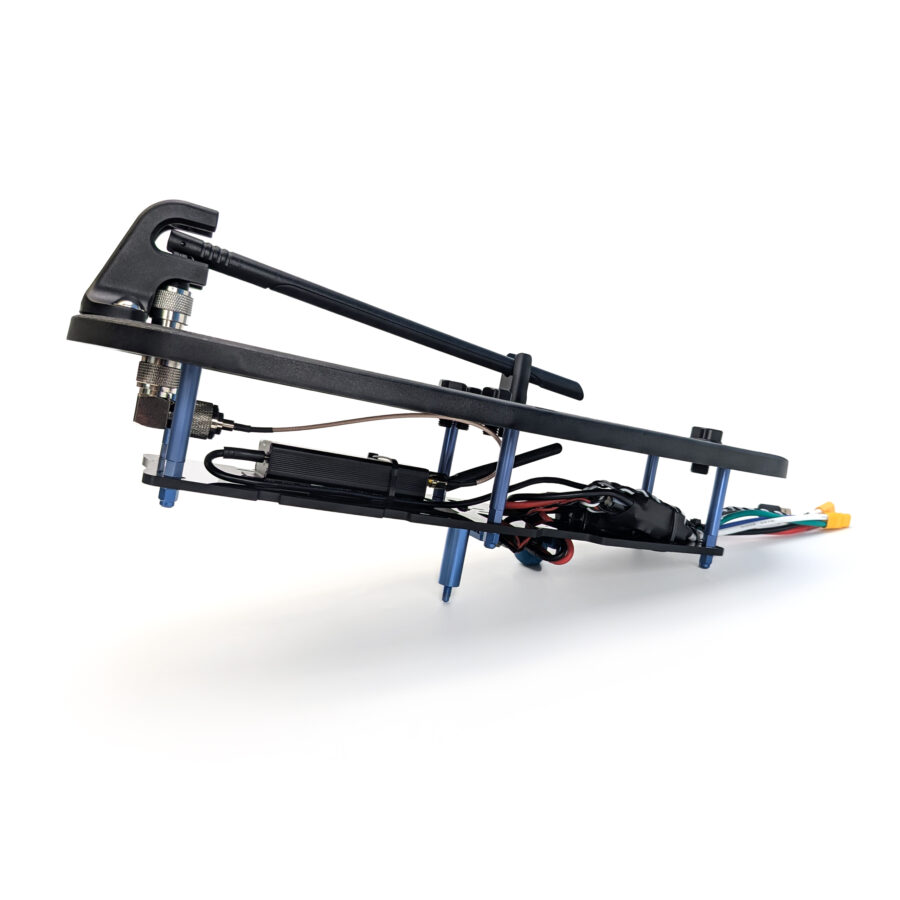

The compact modem is installed inside the BlueBoat’s port hatch lid. It connects via USB-C and includes an external omnidirectional antenna covering 600 MHz to 2700 MHz for wide compatibility with global LTE bands.

The kit includes all the parts needed for installation on the BlueBoat, and a BlueOS extension is available to easily configure and monitor modem settings directly from the BlueOS interface. The modem itself can also be used to add cellular connectivity to many other types of devices.

A Hologram global IoT SIM card is included for quick startup. Hologram is a cellular provider built specifically for Internet of Things (IoT) devices. They offer a global SIM card and platform that simplifies global coverage across hundreds of carriers. You can activate it instantly and get online anywhere Hologram supports, but we recommend switching to a local carrier SIM for the best data rates and coverage in your operating region.

Product Description

Say goodbye to range anxiety! This 4G LTE global cellular modem provides mobile network connectivity for the BlueBoat, enabling long-range communication beyond the reach of the BaseStation.

With cellular coverage, the BlueBoat can operate in remote areas while you control and monitor it from hundreds of miles away. Just like your cell phone, the modem connects to mobile networks using 4G LTE, so the BlueBoat can stay online anywhere with cellular coverage.

The cellular connection is best suited for low-bandwidth tasks like viewing telemetry, monitoring and updating missions, or issuing commands. It’s not ideal for high-bandwidth devices or payloads due to potential high data costs and lower connection speed.

On the left: the BlueBoat connected using the BaseStation. On the right: the Blueboat connected using the Cellular Modem.

Beyond the BaseStation

The compact modem is installed inside the BlueBoat’s port hatch lid. It connects via USB-C and includes an external omnidirectional antenna covering 600 MHz to 2700 MHz for wide compatibility with global LTE bands.

The kit includes all the parts needed for installation on the BlueBoat, and a BlueOS extension is available to easily configure and monitor modem settings directly from the BlueOS interface. The modem itself can also be used to add cellular connectivity to many other types of devices.

A Hologram global IoT SIM card is included for quick startup. Hologram is a cellular provider built specifically for Internet of Things (IoT) devices. They offer a global SIM card and platform that simplifies global coverage across hundreds of carriers. You can activate it instantly and get online anywhere Hologram supports, but we recommend switching to a local carrier SIM for the best data rates and coverage in your operating region.

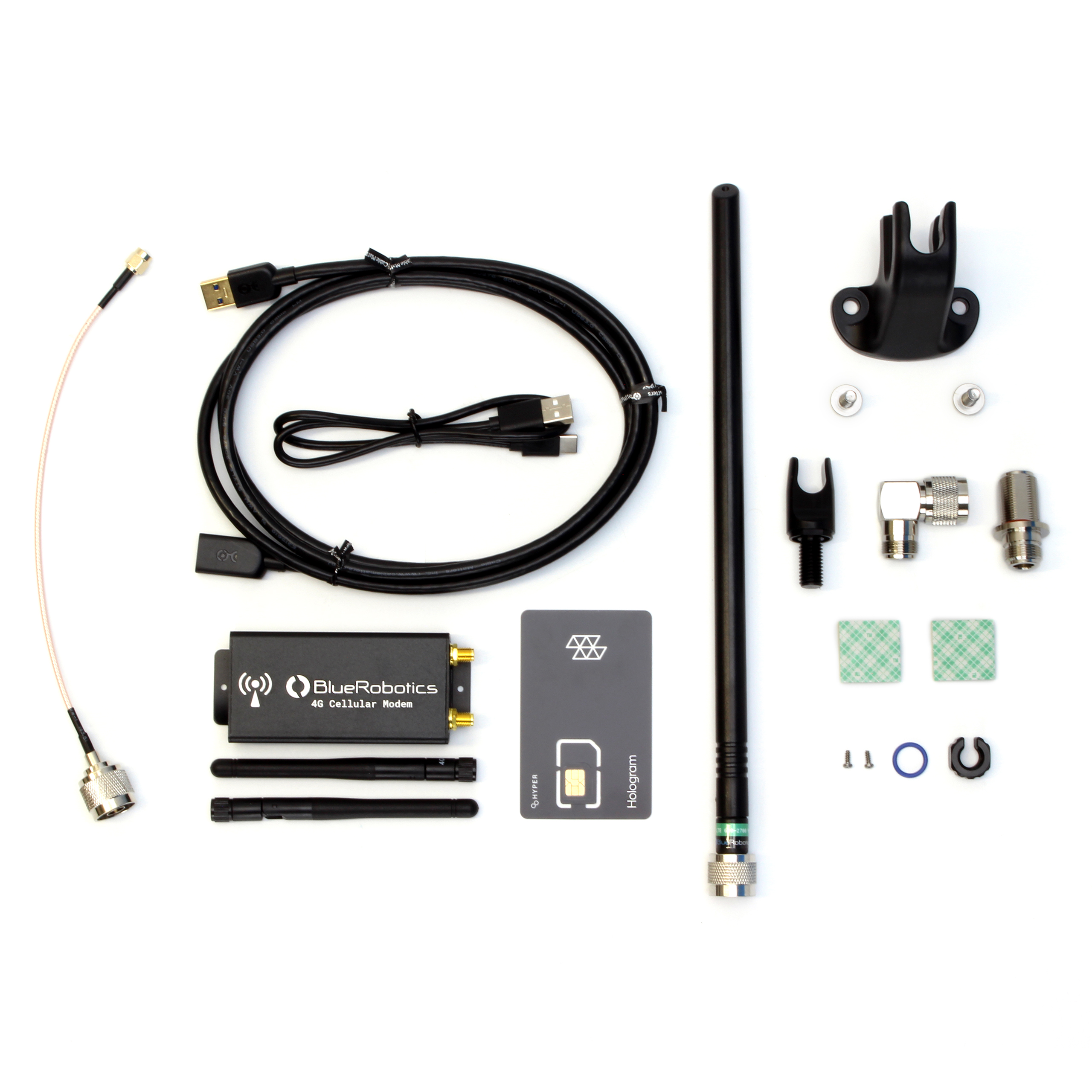

  • 1 x Cellular modem with accessories
  • 1 x Hologram global IoT SIM card (BR-103506)
  • 1 x 4G LTE external omnidirectional antenna
  • 1 x Antenna guard (BR-101311)
  • 1 x Antenna clip (BR-101346)
  • 1 x N-type antenna bulkhead (BR-101324)
  • 1 x N-type 90° connector (BR-101323)
  • 1 x N-type to SMA cable (BR-103494)
  • 1 x 6′ USB extension cable (BR-103510)
  • 2 x Double sided mounting tape (BR-100149)
  • 2 x M6x14 flanged button head screw (BR-101259)
  • 2 x M2.2×6 button head thread forming screw (BR-103509)
  • 1 x M10 bulkhead nut & -013 O-ring (BR-100167-010)
  • 2 x 8.5″ cable tie (BR-102154)

Specifications

ParameterValue
Modem
Modem ManufacturerQuectel
Modem ModelEG25-G (datasheet)
Modem InterfaceMini PCI-E
Antenna ConnectorsSMA
Antenna Ports1 x Main
1 x Diversity
Antenna Frequency600 MHz–2700 MHz (4G)
USB ConnectorUSB-C
Modem ModeQMI, ECM, MBIM
Supported AT CommandsSee AT command manual
RegionGlobal
Supported Bands
LTE-FDDB1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
LTE-TDDB38, B39, B40, B41
WCDMAB1, B2, B4, B5, B6, B8, B19
GSM850, 900, 1800, 1900 MHz
LTE Category4
Theoretical Maximum Bandwidth150 Mbps down / 50 Mbps up
Typical Bandwidth5 Mbps down / 3 Mbps up
Total Kit Weight452 g
RegulatoryGCF (Global)
CE (Europe)
FCC/PTCRB (North America)
IC (Canada)
Anatel (Brazil)
IFETEL (Mexico)
SRRC/CCC/NAL (China)
KC (South Korea)
NCC (Taiwan, China)
JATE/TELEC (Japan)
RCM (Australia & New Zealand)
FAC (Russia)
NBTC (Thailand)
IMDA (Singapore)
ICASA (South Africa)
RoHS
WHQL
External Antenna
Band600 MHz–2700 MHz (4G)
ConnectorN-Type male
Gain7dbi, omnidirectional
Included SIM
CarrierHologram
CoverageGlobal
Sim Card DetailsDatasheet
Data Cost (varies by region, may change without warning)Hologram pricing
Typical BlueBoat Telemetry Usage150 MB/hr (appx.)
Typical BlueOS Interface Load10 MB (appx.)

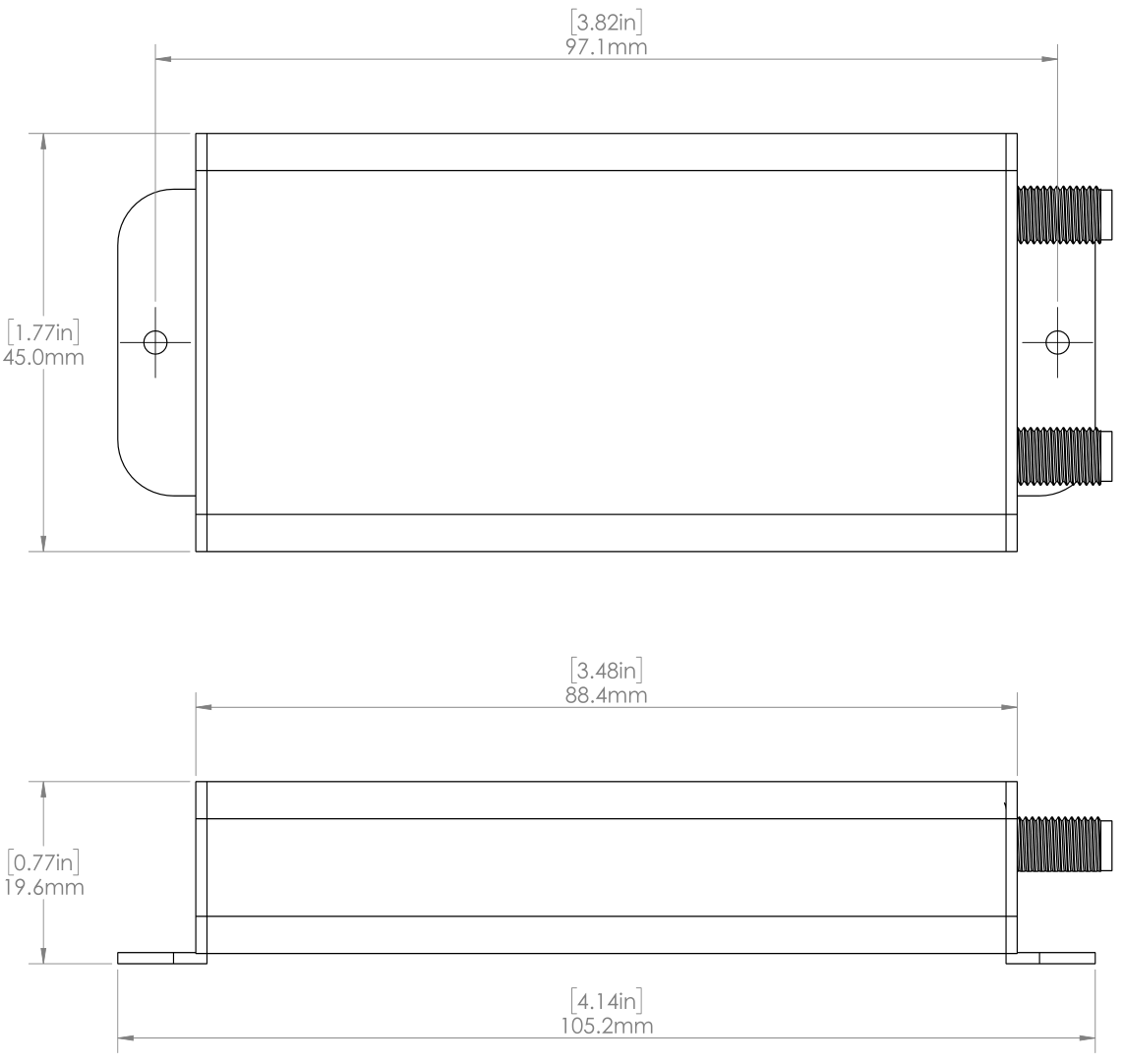

2D Drawings

 Drawing

3D Models

BLUEBOAT_CELLULAR_MODEM_BR-103376 (.zip)

Documents

Quectel Modem Datasheet

Hologram SIM Datasheet

AT Commands Manual

Revision History

27 May 2025

  • BR-103376 – Initial release
Installing the BlueBoat Cellular Modem
Learn how to install the Cellular Modem Kit on the BlueBoat!
