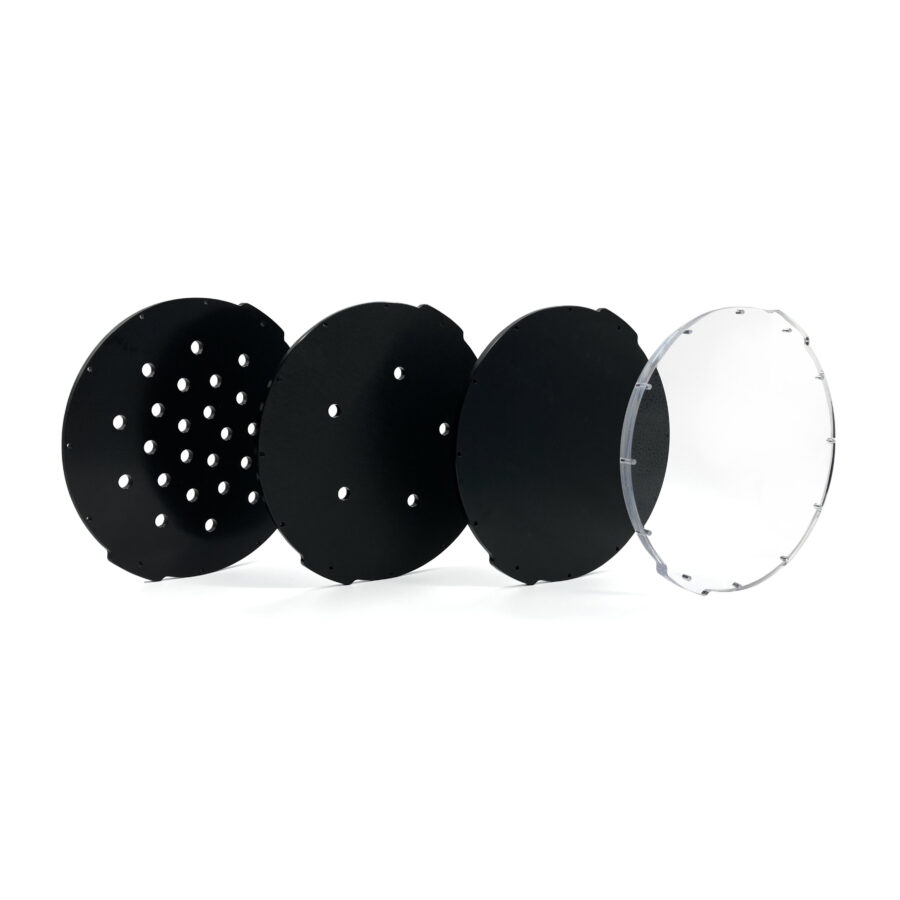

End caps for the Watertight Enclosure for ROV/AUV (8″ Series).
If you’re looking for a complete set of parts for an enclosure, we highly recommend using the enclosure configurator here.
Watertight Enclosure End Caps (8″ Series)
If you’re looking for an end cap to use on the 8″ Series Non-Locking Watertight Enclosure, you can find them here:
200mm (8″) End Cap – Acrylic – Blank – 75m
200mm (8″) End Cap – Aluminum – Blank – 75m
200mm (8″) End Cap – Aluminum – 5 x M10 Hole – 75m
Please note: No other 8″ end caps on the linked product page are compatible with the 8″ Non-Locking Enclosures.
Product Description
Product Description
End caps for the Watertight Enclosure for ROV/AUV (8″ Series).
If you’re looking for a complete set of parts for an enclosure, we highly recommend using the enclosure configurator here.
- 1 x End Cap (based on selection)
- 12 x M3x12 socket head cap screws for aluminum end caps or M3x16 socket head cap screws for acrylic end caps
Specifications
| End Cap | Acrylic Blank | Aluminum Blank | Aluminum 5 Hole |
|---|---|---|---|
| Material | Cast Acrylic | Aluminum 6061-T6 | Aluminum 6061-T6 |
| Surface Finish | Optically Clear | Hard Anodized Black | Hard Anodized Black |
| Weight in Air | 564 g | 599 g | 592 g |
| Depth Rating | 75 m | 75 m | 75 m |
2D Drawings
Acrylic Blank
Aluminum Blank
Aluminum 5 Holes
3D Models
WTE8_END_CAP_ACRYLIC_BLANK_BR-102206-007 (.zip)
WTE8_END_CAP_BLANK_BR-102206-006 (.zip)
WTE8_END_CAP_5xM10_BR-102206-005 (.zip)
Revision History
28 October 2024
- BR-101065-001, 200 mm (8") 5xM10 part number changed to BR-102206-005
- BR-101065-002, 200 mm (8") Blank part number changed to BR-102206-006
- BR-101065-003, 200 mm (8") Acrylic Blank part number changed to BR-102206-007
23 May 2023
- WTE8-P-END-CAP-R1-RP SKU changed to BR-101065-003
- WTE8-M-END-CAP-R1-RP SKU changed to BR-101065-002
- WTE8-M-END-CAP-5-HOLE-R1-RP SKU changed to BR-101065-001
27 April 2017
- WTE8-P-END-CAP-R1 - Initial release
- WTE8-M-END-CAP-R1 - Initial release
- WTE8-M-END-CAP-5-HOLE-R1 - Initial release
- WTE8-M-END-CAP-25-HOLE-R1 - Initial release
