The Power Sense Module (PSM) provides analog current and voltage sensing to your Pixhawk autopilot mounted either on your BlueROV2 or custom marine robotics project. The ArduSub firmware for the Pixhawk supports the Power Sense Module and through QGroundControl will give you visual indications of battery level and current consumption.
This module uses a hall effect current sensor for excellent accuracy at low current draw.
Unlike standard power modules for the Pixhawk, the Power Sense Module will NOT provide 5V power, only sensing abilities. On the BlueROV2, the Pixhawk is powered from multiple sources so this 5V power supply is not needed.
1 x Power Sense Module with pre-installed 3.5mm bullet connectors and spade connectors
1 x 200mm DF13 to JST-GH cable
Max Voltage Input
Max Current Sensing
Non-Insulated Spades (S5-3.5SNB)
3.5mm Bullet Connector
Physical (Board Dimensions)
Height (without header pins)
Power Pin Out
[Updated Drawings Coming Soon]
[Updated Models Coming Soon]
12 December 2018
Changed XT60 Connector to 3.5mm bullet connectors.
10 October 2018
R2 – Initial release.
1. Follow the PSM installation instructions if installing or retrofitting a BlueROV2.

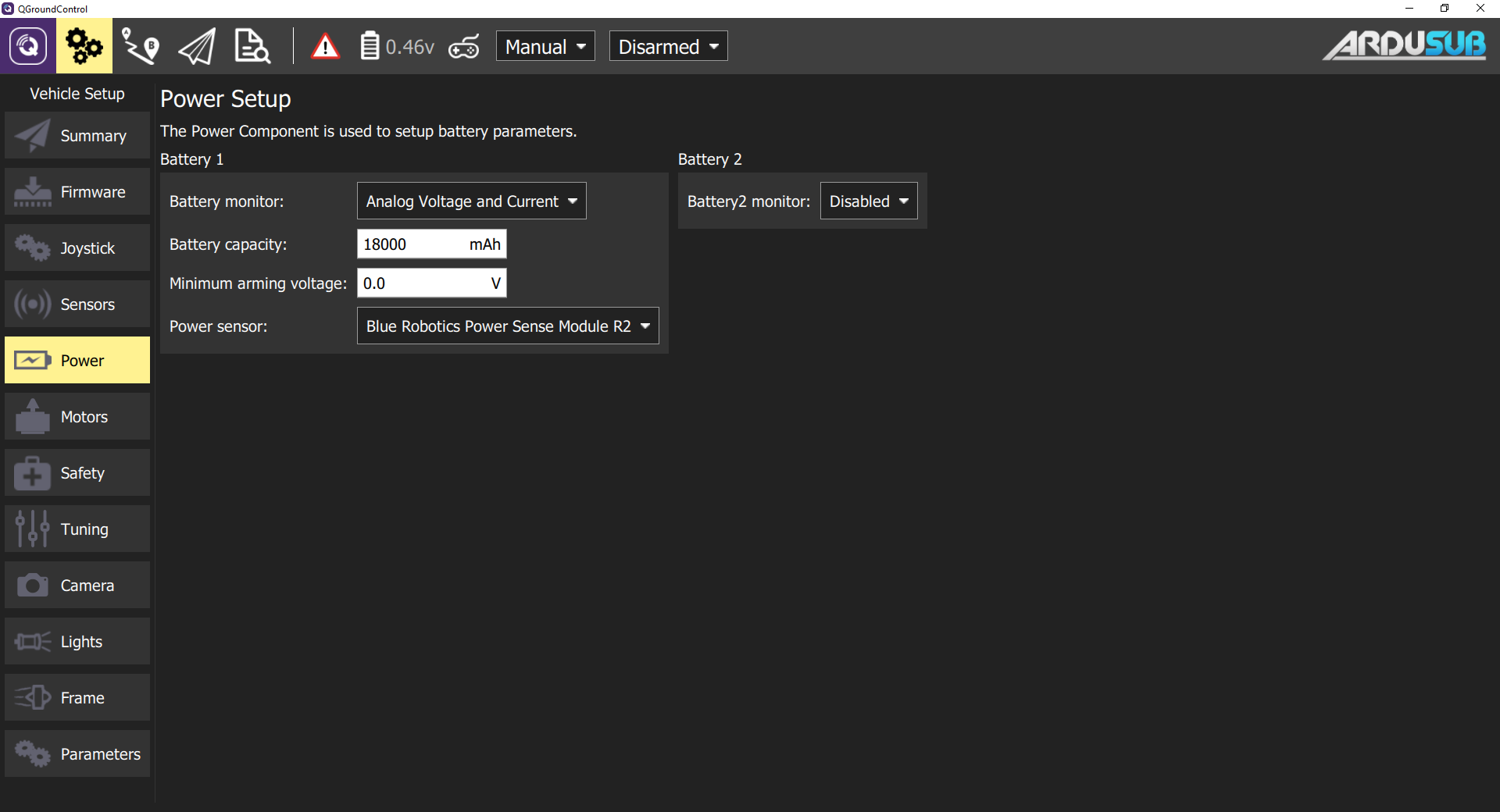

2. In the Parameters tab of the QGroundControl Vehicle Setup page, select “BATT” and enter the following values:
