Motor Disassembly/Re-Assembly

By Rusty and Adam

Introduction

Disassembly of the M100 and M200 motor is simple and should only take a minute!

Parts and Tools

You Will Need

Instructions

1. Loosen the set screw from the shaft collar at the bottom of the motor.

m100-disassem-1

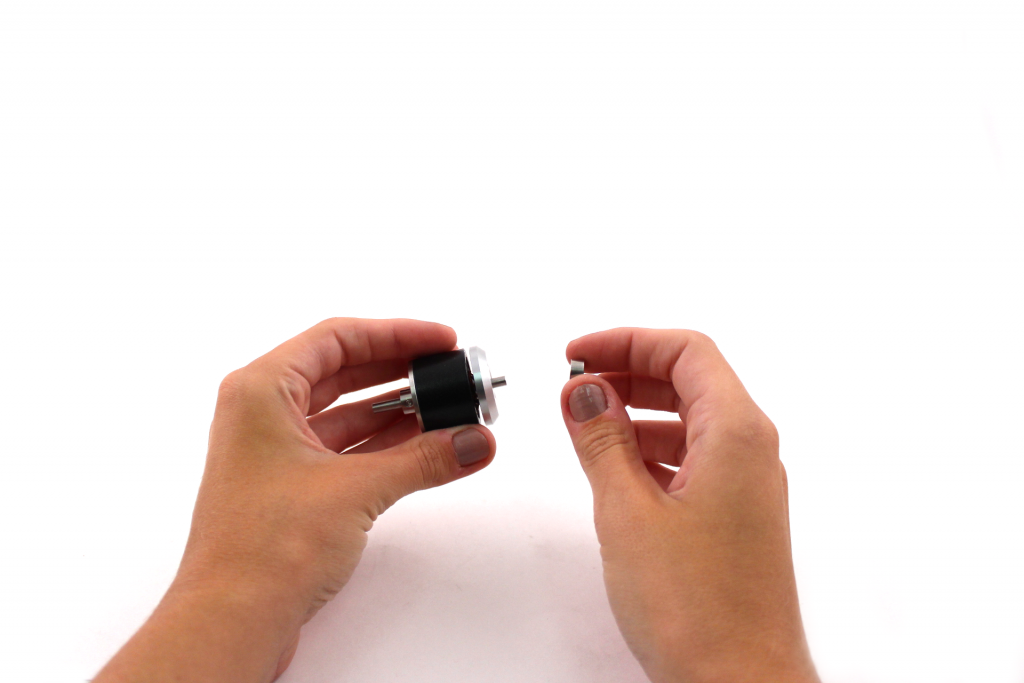

2. Remove shaft collar. If it seems stuck, pull the rotor away from the base to pull the shaft out of the collar. Do not pry the shaft collar.

m100-disassem-2

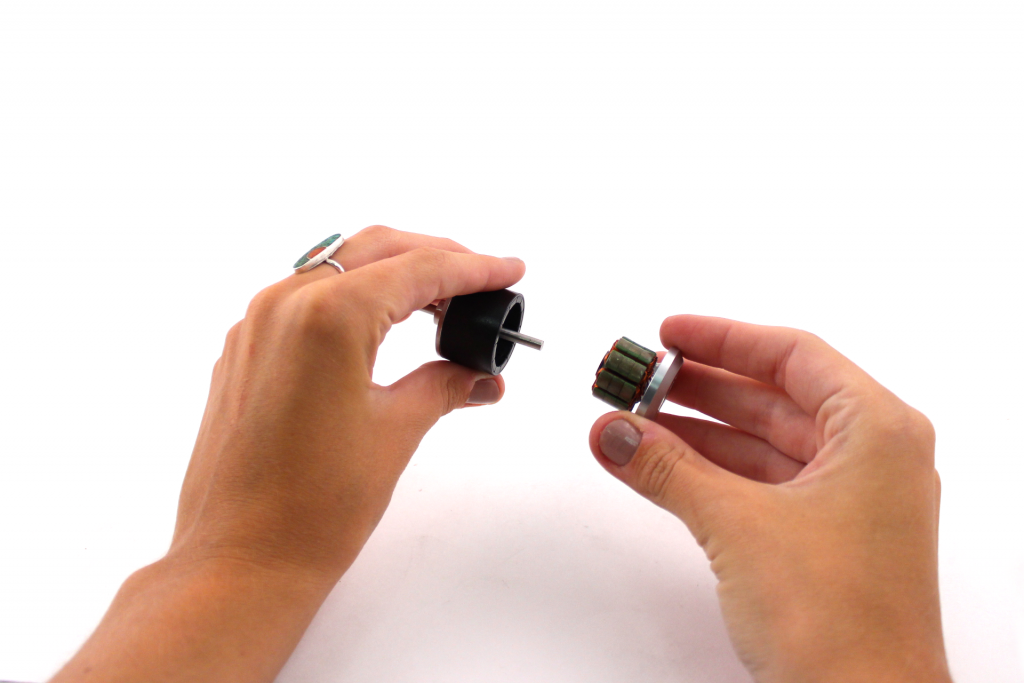

3. Remove the rotor assembly.

m100-disassem-3

Repeat these steps in the reverse direction to reassemble the motor.
